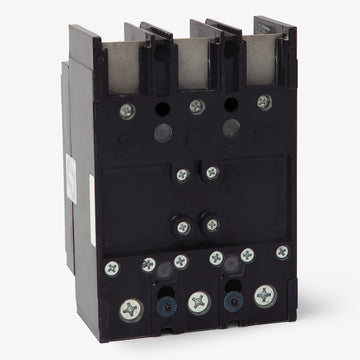

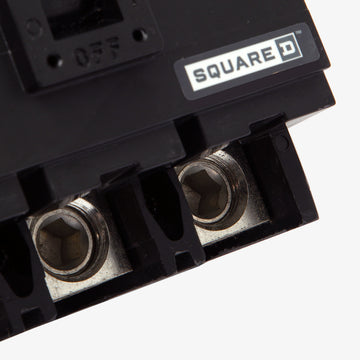

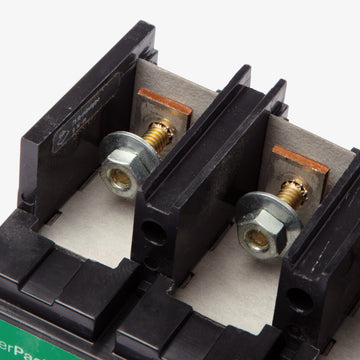

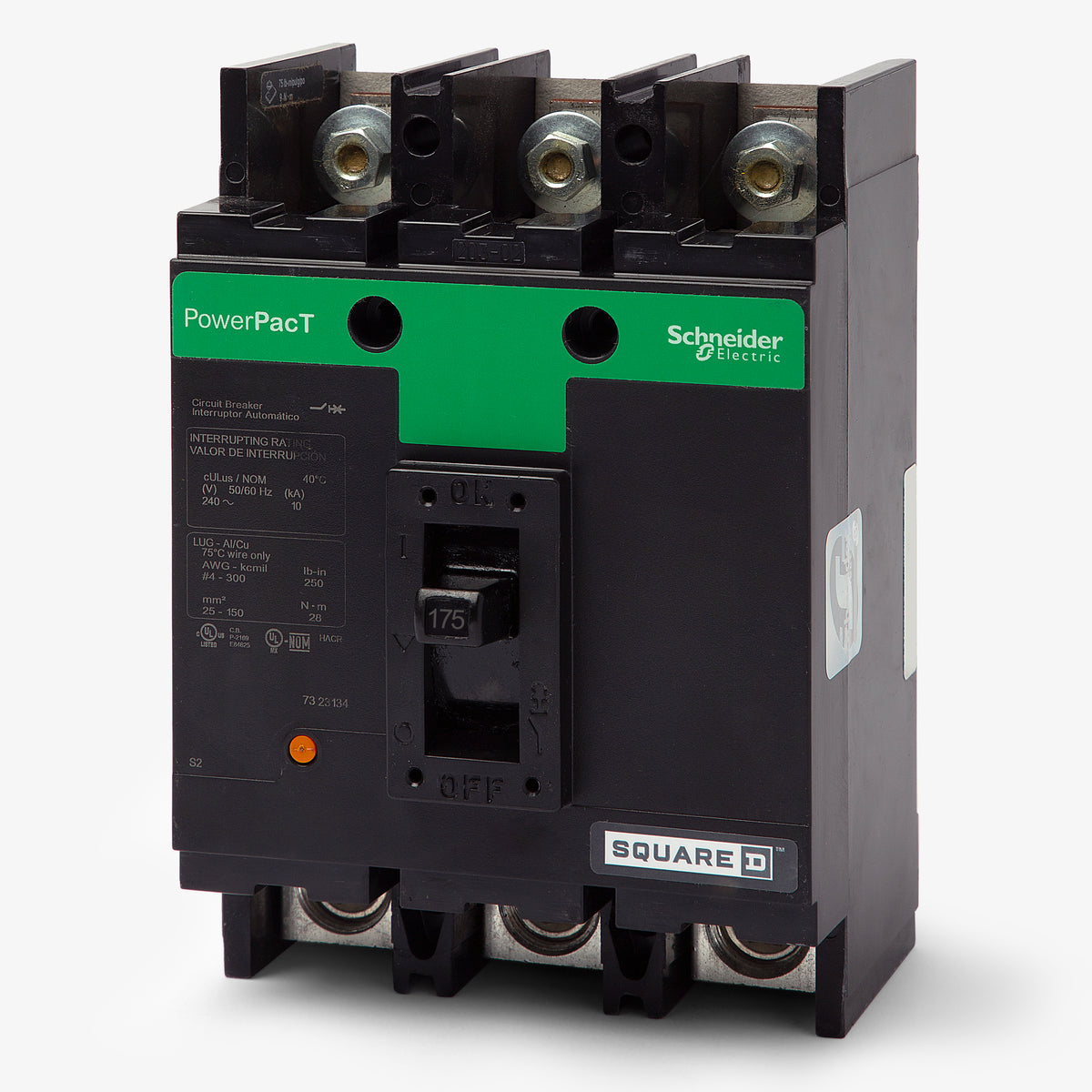

Square D QBP32175TM Molded Case Circuit Breaker
- 175A
- 3 Pole
- Unit Mount
Square D
QBP32175TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP32175TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBP32175TM - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
150A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial and industrial metering applications, the Square D QBP32175TM is a 3-pole, 175A molded case circuit breaker. Part of the PowerPacT Q-Frame series, it features fixed thermal and magnetic trip units (LI) to protect against overloads and short circuits. This unit mount breaker is engineered to fit Square D Meter-Pak and EZ Meter-Pak metering centers, providing a 10kAIC rating at 240VAC. It seamlessly replaces the legacy Q23175 breaker and includes a visual trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP32175TM |
| Series | QBP |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Meter Centers, EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Mounting Nuts/Washers |
| Standards | CSA C22.2 No 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
6 answersWhat equipment is the QBP32175TM designed to be installed in?
This breaker is specifically designed for use in Square D Meter-Pak and EZ Meter-Pak metering centers.
What frame size is the QBP32175TM?
This breaker belongs to the Square D PowerPacT Q-Frame family.
What does the "TM" in the QBP32175TM catalog number signify?
The "TM" indicates that the breaker is equipped with a thermal-magnetic trip unit, providing both long-time overload and instantaneous short-circuit protection.
Are there versions of this 175A breaker with a higher interrupting rating?
Yes, the PowerPacT Q-Frame series offers higher interrupting ratings for this 175A breaker. You can use the QDP32175TM for 25kAIC, the QGP32175TM for 65kAIC, or the QJP32175TM for 100kAIC at 240V.
How does this breaker mount into the metering center?
The QBP32175TM is a unit-mount breaker that bolts directly into the enclosure and utilizes stud/tapped pad terminal connections.
What wire sizes are compatible with the terminals on this breaker?
The breaker accepts aluminum or copper wire ranging from 4 AWG to 300 kcmil.
