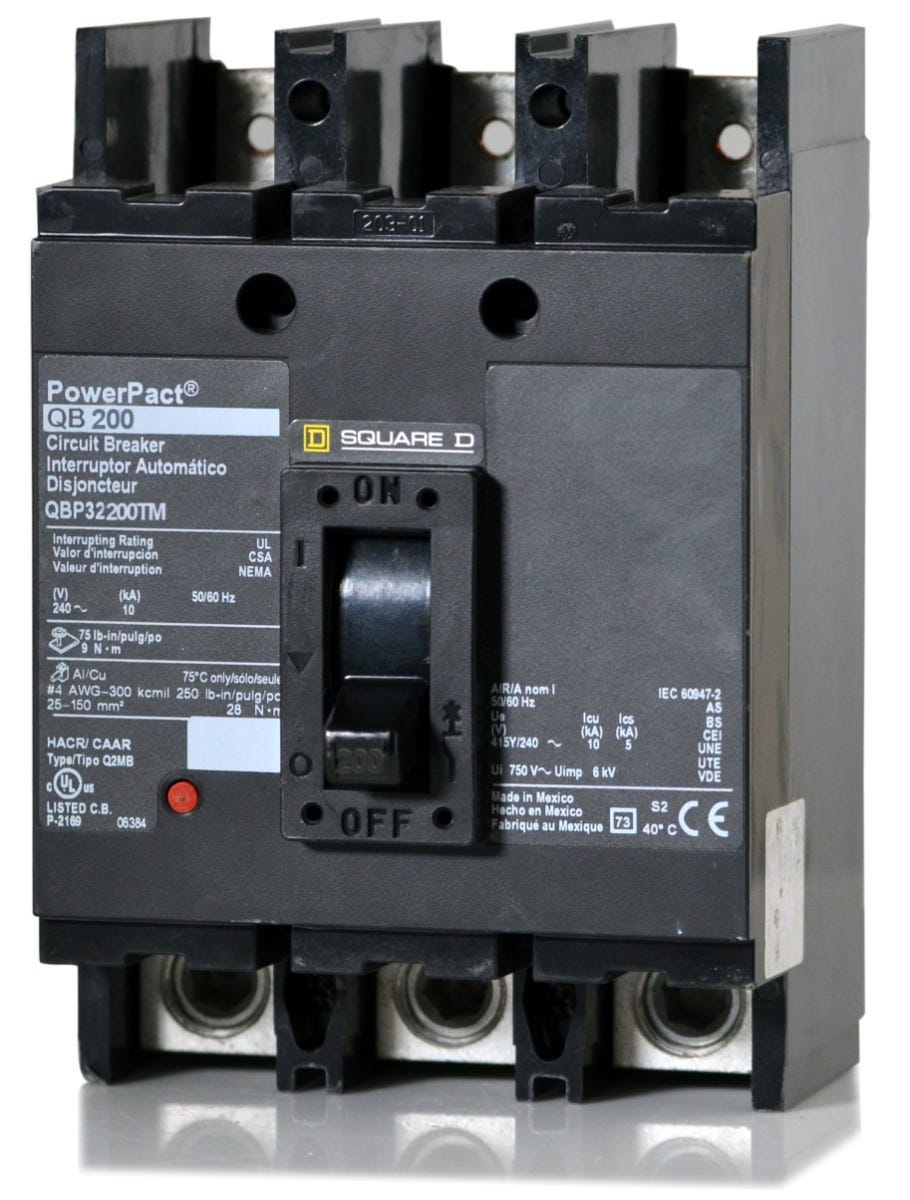

Schneider Electric QBP32200TM Molded Case Circuit Breaker
- 200A
- 3 Pole
- Unit Mount
Schneider Electric
QBP32200TM
Molded Case Circuit Breaker
Brand
Schneider Electric
SKU
QBP32200TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Schneider Electric QBP32200TM - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Schneider Electric QBP32200TM - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Schneider Electric |
|---|---|
| Part Number | QBP32200TM |
| Series | QBP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Schneider Electric QBP32200TM - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Schneider Electric |
|---|---|
| Series | QBP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and residential applications, the Schneider Electric QBP32200TM is a 3-pole, 200A molded case circuit breaker from the PowerPacT Q-Frame family. It provides thermal-magnetic protection with fixed long-time and instantaneous trip functions. Designed specifically for unit mounting, this 80% rated breaker installs into Square D EZ Meter-Pak meter centers. It features a 10kAIC rating at 240VAC and includes load side lugs for secure wire terminations.Specifications
| Brand | Schneider Electric |
|---|---|
| Part Number | QBP32200TM |
| Series | QBP |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D EZ Meter-Pak Meter Centers |
| Wire Gauge | 4 AWG-300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, 80% Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat type of enclosures or panels is the QBP32200TM designed for?
This PowerPacT Q-Frame circuit breaker is specifically engineered for unit mounting in Square D EZ Meter-Pak and MP Meter-Pak metering centers.
How is the QBP32200TM circuit breaker mounted?
It features a unit mount, bolt-on configuration. It uses studs with terminal nuts on the line side and includes lugs on the load side for secure wire terminations.
What does the TM in the QBP32200TM catalog number indicate?
The TM stands for Thermal Magnetic, meaning this breaker uses fixed thermal and fixed magnetic trip elements to provide long-time and instantaneous (LI) overcurrent protection.
Are there higher interrupting rating options available for this 200A Q-Frame breaker?
Yes. While the QBP32200TM is rated for 10kA at 240V, the QDP and QGP series offer higher interrupting ratings (25kA and 65kA respectively) in the same physical frame size.
Does the QBP32200TM replace older Square D circuit breakers?
Yes, the PowerPacT Q-Frame circuit breakers are direct replacements for the discontinued Square D Q2 series devices.
Does this breaker include a push-to-trip feature?
Yes, PowerPacT Q-Frame circuit breakers feature an integral push-to-trip button in the cover to manually trip the breaker for testing and maintenance.
