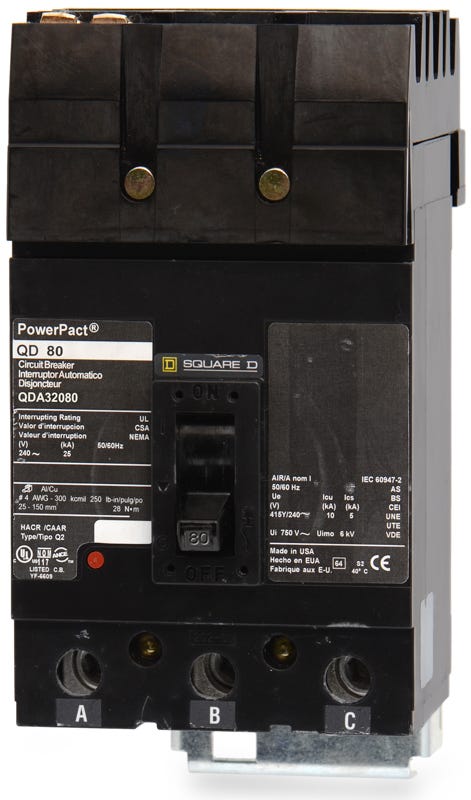

Square D QDA32080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- I-Line
Square D
QDA32080
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA32080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDA32080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDA32080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA32080-R |
| Series | QDA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Sold out
Quantity
Square D QDA32080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QDA32080-R |
| Series | QDA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
Description
Delivering reliable long-time and instantaneous (LI) protection, the Square D QDA32080 is an 80A, 3-pole MCCB. It is part of the PowerPact Q-Frame series, engineered for commercial environments. The breaker mounts into Square D I-Line panelboards utilizing a secure plug-on connection. It is also an exact replacement for the legacy Q23080. With a 25 kAIC rating at 240VAC, it handles standard distribution needs. It is HACR rated and includes load-side lugs for 4 AWG to 300 kcmil wire.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDA32080-R |
| Series | QDA |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
7 answersWhat type of panelboard is the QDA32080 compatible with?
This breaker features an I-Line plug-on connection and is designed exclusively for use in Square D I-Line panelboards and switchboards. It cannot be used in NQ or NF series panels.
How does the QDA32080 connect to the panel and the load?
It uses an I-Line plug-on connection for the line side to snap directly into the panelboard bus. The load side features mechanical lugs that accept 4 AWG to 300 kcmil aluminum or copper wire.
Is the QDA32080 rated for use in DC circuits?
No, the PowerPacT Q-frame QDA32080 is rated for AC voltage only (up to 240V AC). It does not carry a DC voltage rating.
What is the difference between the QDA32080, QGA32080, and QJA32080?
The difference is the interrupting capacity. The QDA32080 is rated for 25kA at 240V AC, the QGA32080 is rated for 65kA, and the QJA32080 is rated for 100kA. They share the same physical dimensions and I-Line mounting.
Can I use the QDA32080 to replace an older Q23080 breaker?
Yes, the PowerPacT QDA32080 is the direct replacement for the legacy Square D Q23080 I-Line circuit breaker.
Are the trip settings on the QDA32080 adjustable?
No, this breaker features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) trip functions. The trip points cannot be adjusted in the field.
What wire material is compatible with the load lugs on this breaker?
The standard load-side lugs on the QDA32080 are dual-rated to accept either copper or aluminum conductors ranging from 4 AWG to 300 kcmil.
