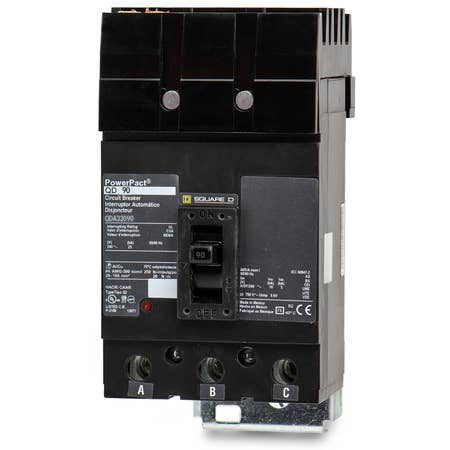

Square D QDA32090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- I-Line
Square D
QDA32090
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA32090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDA32090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Square D QDA32090 is a 90A molded case circuit breaker featuring a thermal-magnetic trip unit with fixed LI protection. This Q-Frame breaker mounts into Square D I-Line panelboards and switchboards. It serves as a seamless drop-in replacement for legacy Q32090 models, utilizing a convenient plug-on I-Line connection. Rated for 25 kAIC at 240VAC, it includes factory-configured ABC phase connections and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | QDA |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | ABC Phase Connection (Factory Configured) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the QDA32090?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features an I-Line style plug-in connection on the line side and mechanical lugs on the load side.
How much mounting space does this breaker require in an I-Line panel?
As a 3-pole PowerPacT Q-frame circuit breaker, the QDA32090 requires 4.5 inches of I-Line mounting space.
What is the default phase connection for this breaker?
Because there is no phase option suffix at the end of the QDA32090 catalog number, it comes factory-configured for a standard ABC phase connection on the I-Line bus.
What does the 'D' in the QDA32090 catalog number indicate?
In the PowerPacT Q-frame series, the 'D' designates the interrupting rating. It indicates a 25kAIC rating at 240VAC. Other options in the series include B (10kA), G (65kA), and J (100kA).
Can the QDA32090 replace older Square D breakers?
Yes, the PowerPacT Q-frame is a direct drop-in replacement for legacy Square D Q2 series circuit breakers, such as the Q32090.
Can I use the QDA32090 on a 480V system?
No, this breaker is rated for a maximum of 240VAC. It is suitable for 208Y/120V and 240V systems but cannot be safely applied on 480V or 600V networks.
Does this breaker include a push-to-trip feature?
Yes, all PowerPacT Q-frame circuit breakers include an integral push-to-trip button on the cover, allowing you to manually trip the breaker to verify the mechanical operation of the mechanism.
