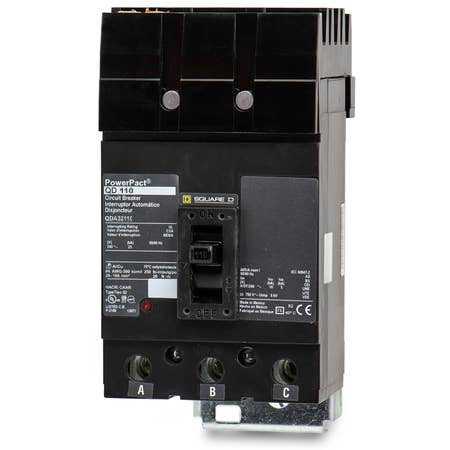

Square D QDA32110 Molded Case Circuit Breaker
- 110A
- 3 Pole
- I-Line
Square D
QDA32110
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA32110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDA32110 - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker

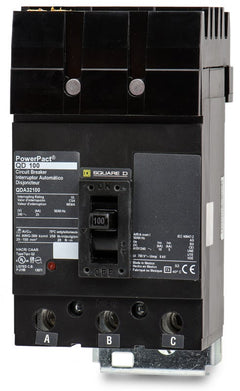

90A 3 Pole Molded Case Circuit Breaker

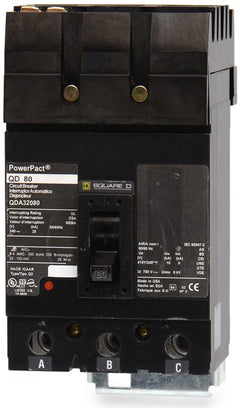

80A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Square D QDA32110 is a 3-pole, 110A molded case circuit breaker from the PowerPact Q-Frame family. It provides reliable thermal-magnetic overcurrent protection for demanding electrical systems. This unit mounts into Square D I-Line panelboards and switchboards, utilizing a plug-on design that simplifies installation. It serves as a drop-in replacement for legacy Q23110 breakers. Rated for 25kAIC at 240VAC, it features fixed LI trip functions.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDA32110 |
| Series | QDA |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Handle Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, 80% Rated, Phase Connection ABC |
Product FAQs
6 answersWhat panelboards are compatible with the QDA32110?
This breaker is designed for use in Square D I-Line panelboards and switchboards. It features a plug-on line side connection that attaches directly to the I-Line bus.
How much mounting space does this breaker require in an I-Line panel?
The QDA32110 is a 3-pole Q-frame breaker that requires 4.5 inches of I-Line mounting space. Each pole occupies 1.5 inches of bus space.
What is the difference between Square D QDA, QGA, and QJA circuit breakers?
The second letter in the prefix indicates the interrupting rating. The QDA is rated for 25kA at 240V, the QGA is rated for 65kA at 240V, and the QJA is rated for 100kA at 240V. All three share the same physical dimensions and mounting footprint.
Can the QDA32110 be used on a 480V or 600V electrical system?
No. The PowerPacT Q-frame series is rated for a maximum of 240V AC. It is not suitable for 480V or 600V applications.
What is the recommended tightening torque for the load side lugs?
The factory lugs on the QDA32110 require a tightening torque of 248 lb-in (28 N.m) for both copper and aluminum conductors.
Can this I-Line circuit breaker be reverse fed?
No. I-Line circuit breakers feature a specific plug-on jaw connection for the line side and mechanical lugs for the load side, meaning they cannot be reverse fed.
