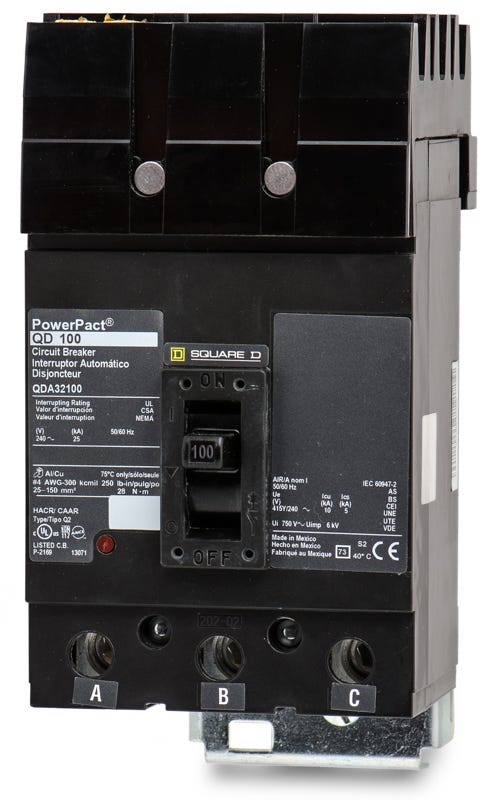

Square D QDA32100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
QDA32100
Molded Case Circuit Breaker
Brand
Square D
SKU
QDA32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDA32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDA32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QDA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Quantity
Square D QDA32100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QDA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Similar Items
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for robust industrial applications, this 100A molded case circuit breaker delivers reliable thermal-magnetic protection. The QDA32100 features fixed long-time and instantaneous (LI) trip functions for three-phase systems. Designed for Square D I-Line panelboards, this Q-Frame unit utilizes a plug-on mounting style. It is fully compatible as a replacement for older Q23100 breakers. Delivering a 25 kAIC rating at 240VAC, this HACR-rated breaker includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | QDA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, 80% Rated |
Product FAQs
6 answersCan I use the QDA32100 to replace an older Q23100 breaker?
Yes. The QDA32100 is the modern PowerPacT Q-Frame substitute for legacy Q23100 and Q232100H I-Line circuit breakers.
What panels are compatible with the QDA32100?
This breaker is engineered exclusively for Square D I-Line panelboards and switchboards. Its plug-on bus connection is not compatible with standard unit-mount enclosures, NQ panelboards, or residential load centers.
Do I need a separate mounting kit to install the QDA32100 in an I-Line panel?
No additional hardware is required. The breaker plugs directly onto the panelboard bus stack, and the built-in mounting foot fastens securely to the backpan.
Is the QDA32100 suitable for 480V applications?
No. The QDA32100 has a maximum voltage rating of 240VAC. If your commercial or industrial system requires 480V or 600V protection, you must specify a different frame size, such as a PowerPacT H-Frame or J-Frame breaker.
Can the trip unit settings on the QDA32100 be adjusted in the field?
No. The thermal-magnetic trip unit in the QDA32100 is completely fixed. Both the long-time thermal and instantaneous magnetic trip points are factory set and cannot be field adjusted or interchanged.
How does the QDA32100 visually indicate a tripped condition?
When an overcurrent or short circuit causes the breaker to trip, the operating handle moves to a distinct center position midway between ON and OFF, providing a clear visual indication of a fault.
