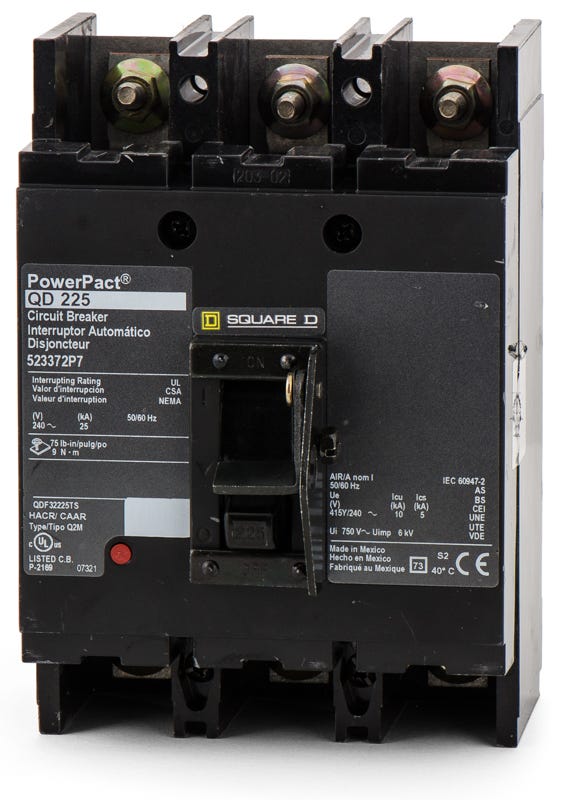

Square D QDF32225TS Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
QDF32225TS
Molded Case Circuit Breaker
Brand
Square D
SKU
QDF32225TS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

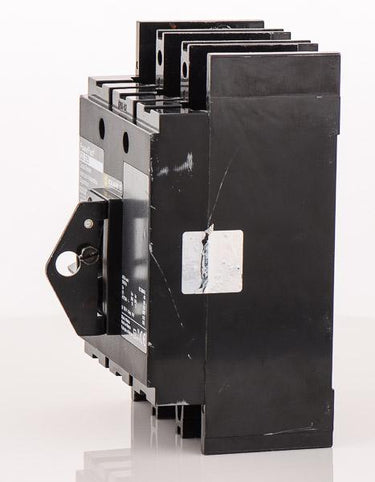

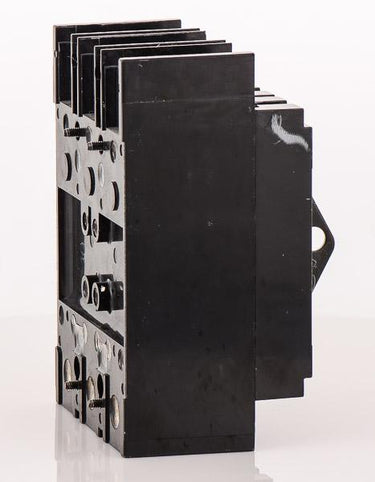

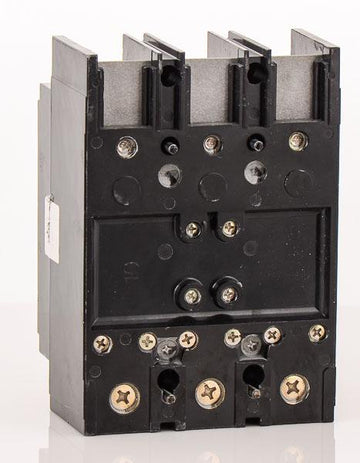

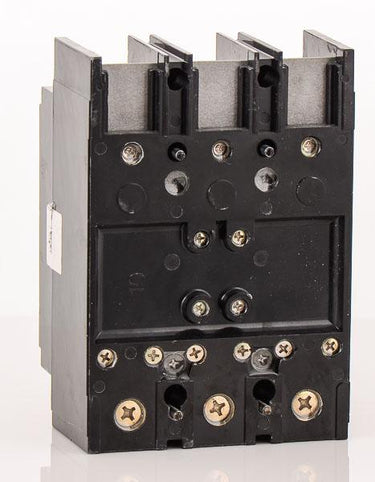

Square D QDF32225TS - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
225A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial power distribution, the Square D QDF32225TS is a 225A, 3-pole MCCB from the PowerPacT Q-Frame lineup. It provides thermal-magnetic protection with fixed LI trip functions. This unit-mount breaker installs into Square D NQ panelboards and switchboards. It features stud/tapped pad terminals and serves as a direct replacement for legacy Q23225 breakers. Rated for 25 kAIC at 240V, it includes a Visi-Trip indicator for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | QDF32225TS-R |
| Series | QDF |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | Square D NQ Panelboards, Square D Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Accessories | Studs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the QDF32225TS circuit breaker?
This unit-mount breaker is designed for use in Square D NQ panelboards and switchboards. When installing in an NQ panel, a specific sub-feed or main breaker adapter kit (such as the NQSFB2Q or NQMB2Q) is required.
What does the TS suffix indicate on this Q-Frame breaker?
The TS suffix indicates that the breaker is equipped with studs on both the line and load ends (without nuts or washers) for direct busbar connections, rather than standard cable lugs.
Can the QDF32225TS replace older Square D Q2 series breakers?
Yes, PowerPacT Q-Frame circuit breakers serve as direct replacements for legacy Square D Q2 series devices with matching configurations.
Are the trip settings adjustable on the QDF32225TS?
No, this breaker features a thermal-magnetic trip unit with fixed long-time (thermal) and fixed instantaneous (magnetic) trip functions. The trip settings cannot be adjusted in the field.
Can I connect cables directly to the QDF32225TS?
Out of the box, the TS configuration features stud terminals designed for busbar connections. To terminate cables, you must install compatible Q-Frame mechanical lug kits, which typically accept 4 AWG to 300 kcmil aluminum or copper conductors.
Does this breaker include a push-to-trip feature?
Yes, all PowerPacT Q-Frame circuit breakers include an integral push-to-trip button on the cover, allowing you to manually trip the breaker to verify the mechanical operation of the trip mechanism.
