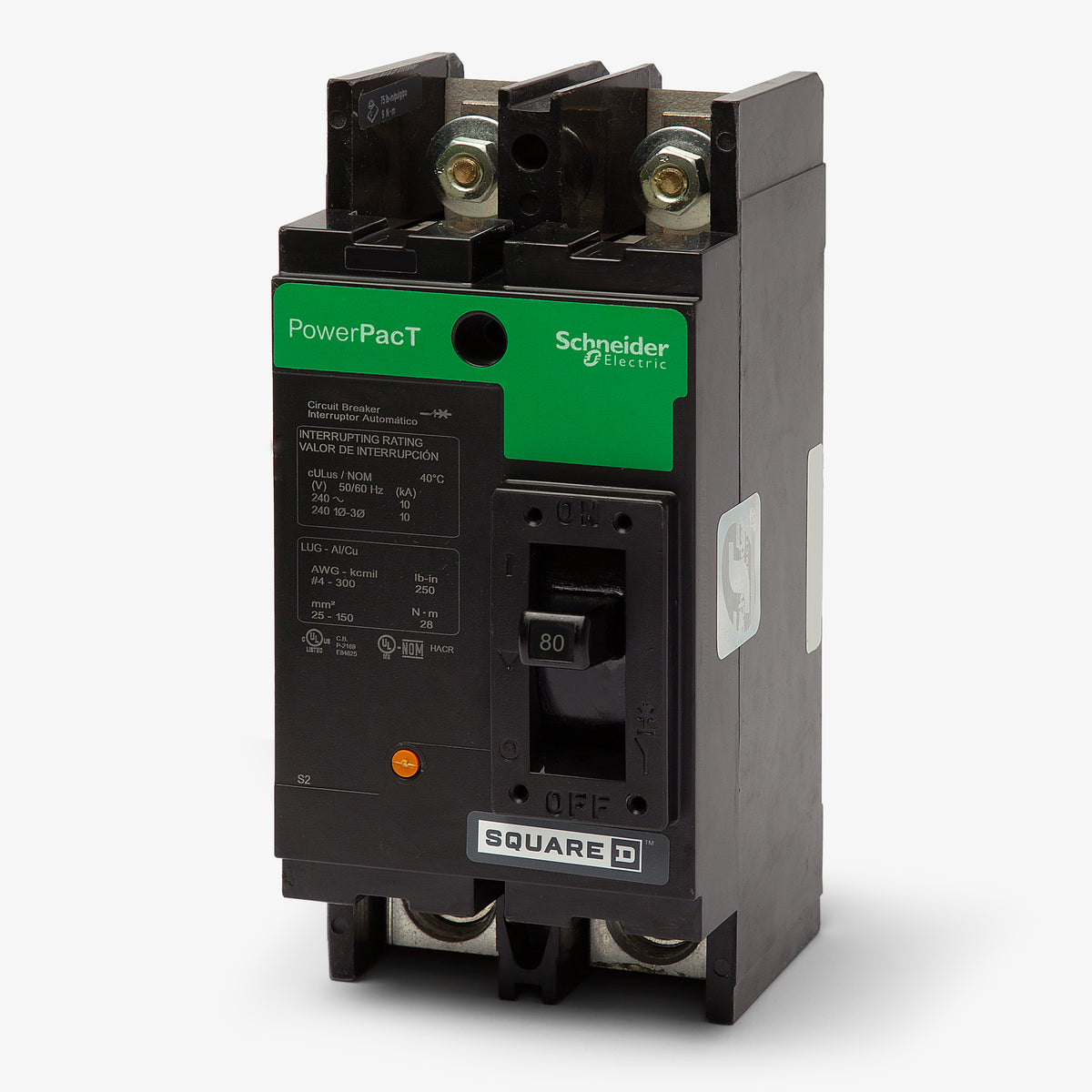

Square D QDP22080TM Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Square D
QDP22080TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QDP22080TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDP22080TM - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and residential distribution, the Square D QDP22080TM delivers 80 amps of reliable circuit protection. This PowerPact Q-Frame MCCB handles demanding electrical loads safely. This bolt-on breaker fits perfectly into EZ Meter-Pak and MP Meter-Pak metering centers. It also replaces discontinued Q22080 models in existing panelboards. Equipped with a thermal-magnetic trip mechanism, it provides LI protection with a 25kA rating at 240VAC.Specifications
| Brand | Square D |
|---|---|
| Series | QDP |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Metering Centers, MP Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, 80% Rated |
Product FAQs
5 answersWhat equipment is the QDP22080TM designed for?
This breaker is designed for use as a tenant main circuit breaker in Square D EZ Meter-Pak and MP Meter-Pak metering centers.
What does the D in the QDP prefix indicate?
In the PowerPacT Q-frame series, the D designates the interrupting rating. A QDP breaker provides a 25kAIC rating at 240VAC, whereas QBP, QGP, and QJP models offer different interrupting capacities.
What does the TM stand for in the QDP22080TM part number?
The TM indicates that the breaker uses a thermal-magnetic trip unit, providing both long-time (thermal) and instantaneous (magnetic) protection.
What is the difference between the QDP22080TM and QBP22080TM?
Both are 80-amp, 2-pole Q-frame tenant breakers, but they have different interrupting ratings. The QDP is rated for 25kAIC at 240V, while the QBP is rated for 10kAIC at 240V.
Can I replace a QDP22080TM with a QGP22080TM?
Yes, the QGP22080TM shares the same physical dimensions and 80A rating but offers a higher interrupting rating of 65kAIC at 240V. It can safely replace a QDP model if a higher fault current rating is required.
