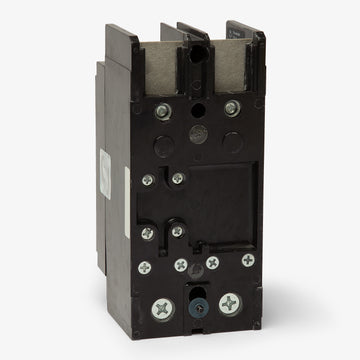

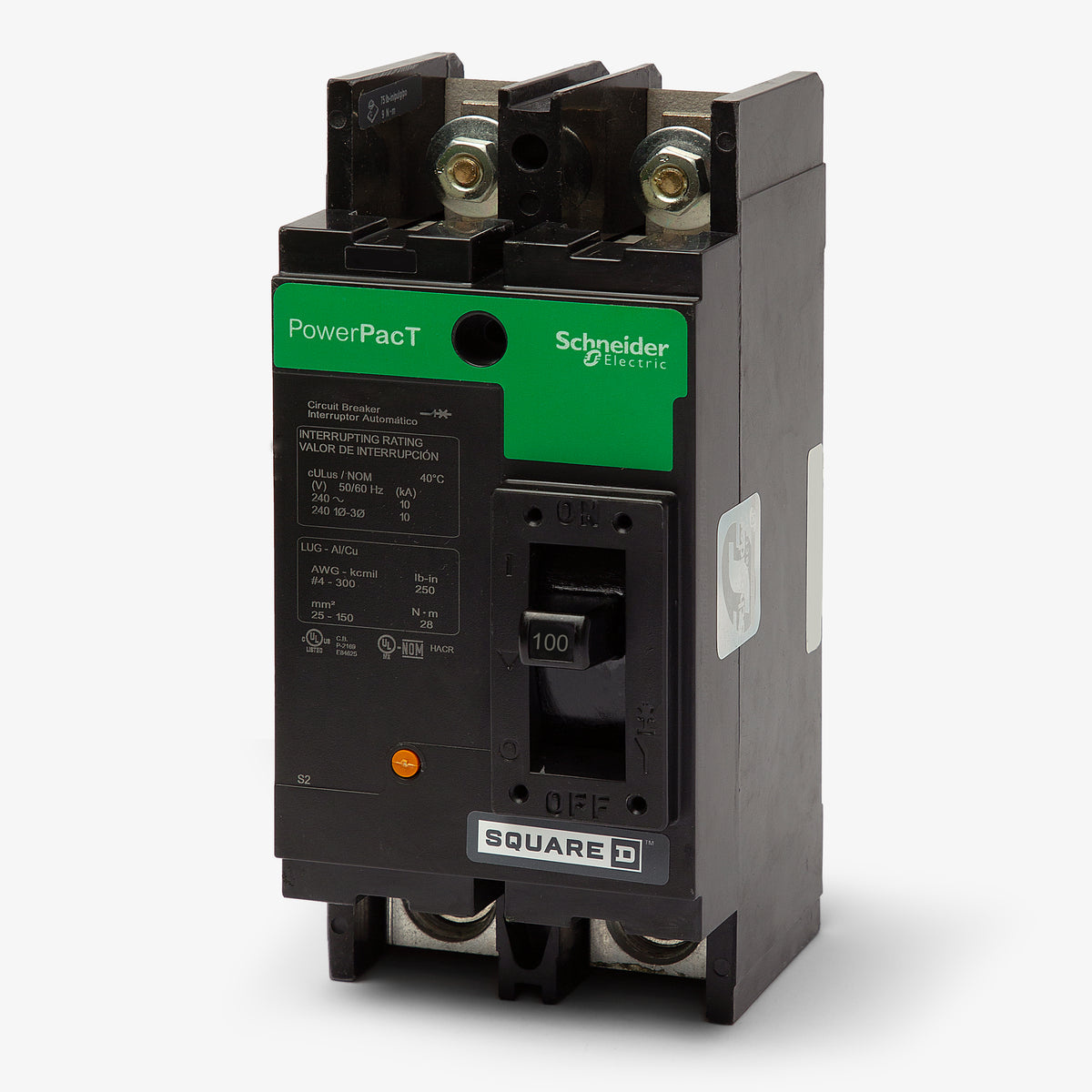

Square D QDP22100TM Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Square D
QDP22100TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QDP22100TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QDP22100TM - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QDP22100TM - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | QDP |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Metering Centers, MP Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Terminal Nut Kit (Line Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D QDP22100TM - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | QDP |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Metering Centers, MP Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Terminal Nut Kit (Line Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
80A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial distribution, the Square D QDP22100TM is a 2-pole, 100A MCCB from the PowerPacT Q-Frame family. It provides thermal-magnetic protection for 240VAC systems. This unit-mount breaker installs into EZ Meter-Pak and MP Meter-Pak metering centers. It features line-side terminal nuts and load-side lugs, serving as a direct replacement for legacy Q22100 breakers. Rated for 25kAIC at 240V, it includes an 80% continuous current rating and a push-to-trip button.Specifications
| Brand | Square D |
|---|---|
| Series | QDP |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 208Y/120VAC, 25kA @ 240VAC |
| Frame Type | QDP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | EZ Meter-Pak Metering Centers, MP Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Terminal Nut Kit (Line Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
8 answersWhat metering centers is the QDP22100TM compatible with?
This breaker is designed for installation in Square D EZ Meter-Pak and MP Meter-Pak metering centers.
Can the QDP22100TM replace older Square D breakers?
Yes, the PowerPacT Q-Frame circuit breaker serves as a direct replacement for legacy Q22100 series devices.
What does the TM in QDP22100TM stand for?
The TM indicates that the breaker is equipped with a non-interchangeable Thermal Magnetic trip unit, providing both overload and short-circuit protection.
What is the interrupting capacity of the QDP22100TM?
This breaker features a 25kAIC interrupting rating at 240VAC. If your application requires a different fault current rating, other Q-Frame models like the QBP (10kA), QGP (65kA), or QJP (100kA) are available.
What type of electrical connections does the QDP22100TM use?

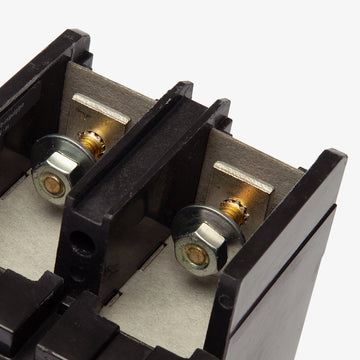

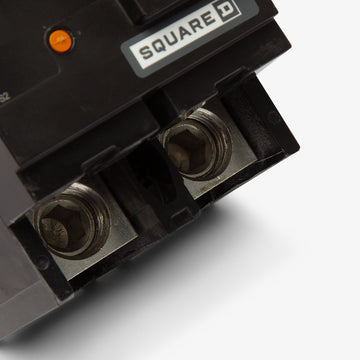

This unit-mount breaker features 1/4-20 inch studs on the line side and mechanical lugs on the load side.
What wire sizes are accepted by the load-side lugs on this breaker?
The mechanical lugs accept aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
How is the QDP22100TM mounted?
It is a unit-mount, bolt-on circuit breaker designed for cabled or bus-mounted applications within compatible metering devices and enclosures.
What frame size is the QDP22100TM?
It belongs to the Square D PowerPacT Q-Frame family of molded case circuit breakers.
