Square D QDP22100TM - 100A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU QDP22100TM
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Square D QDP22100TM - 100A 2 Pole Molded Case Circuit Breaker

Brand Square D
SKU QDP22100TM
Select Item Condition
Earn 724 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D QDP22100TM - 100A 2 Pole Molded Case Circuit Breaker

New

$724.62 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

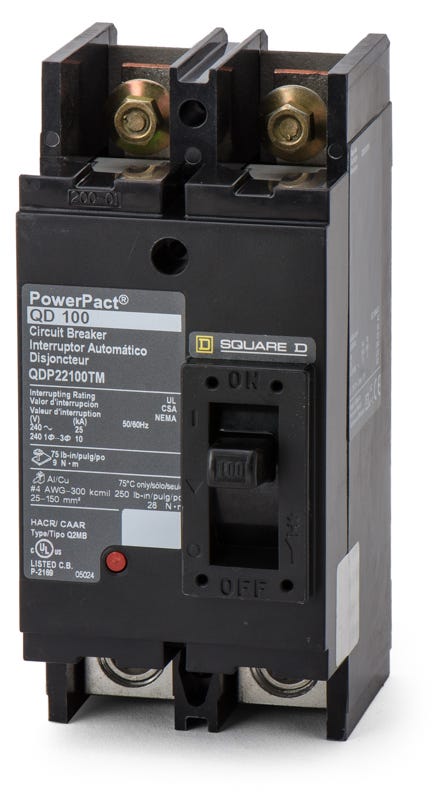

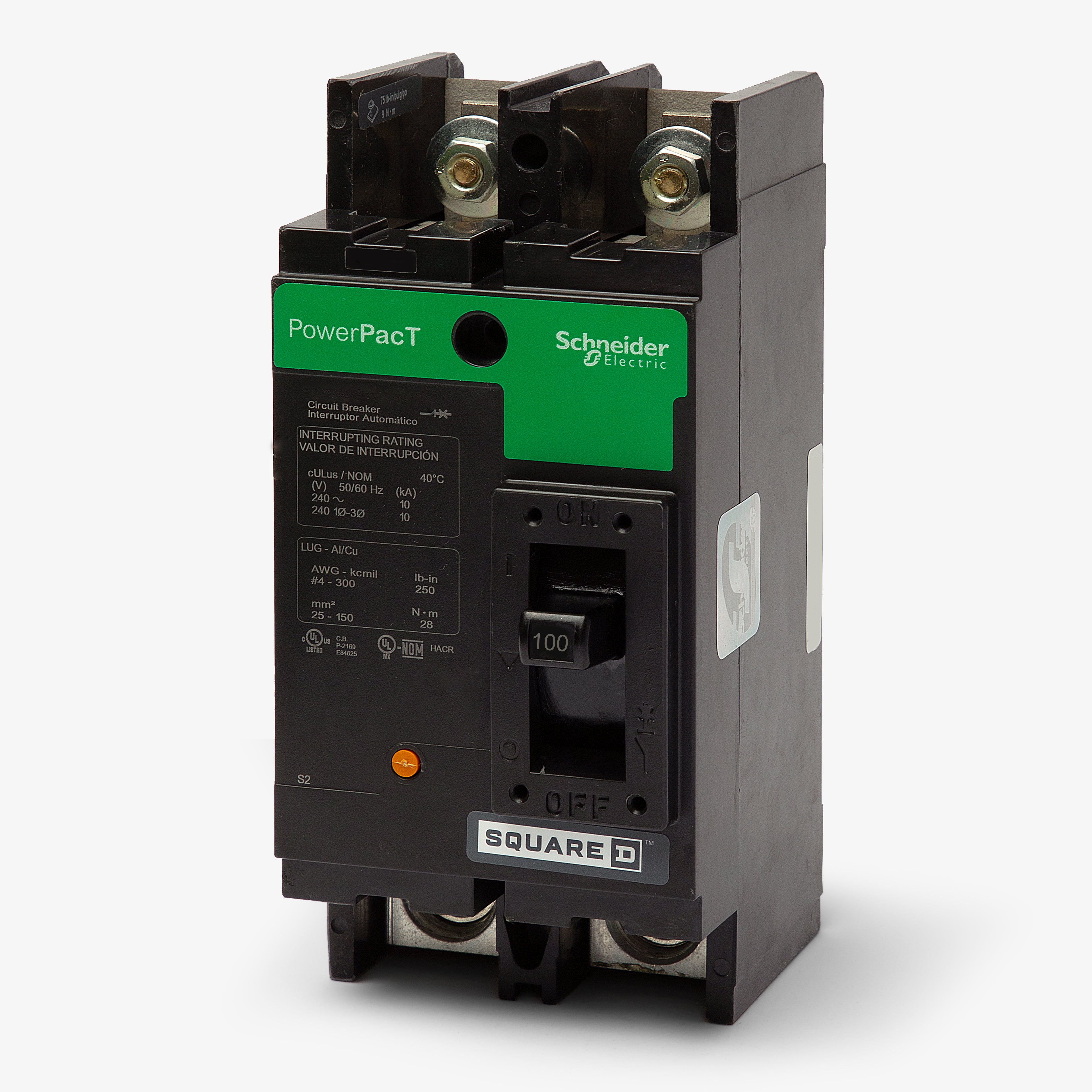

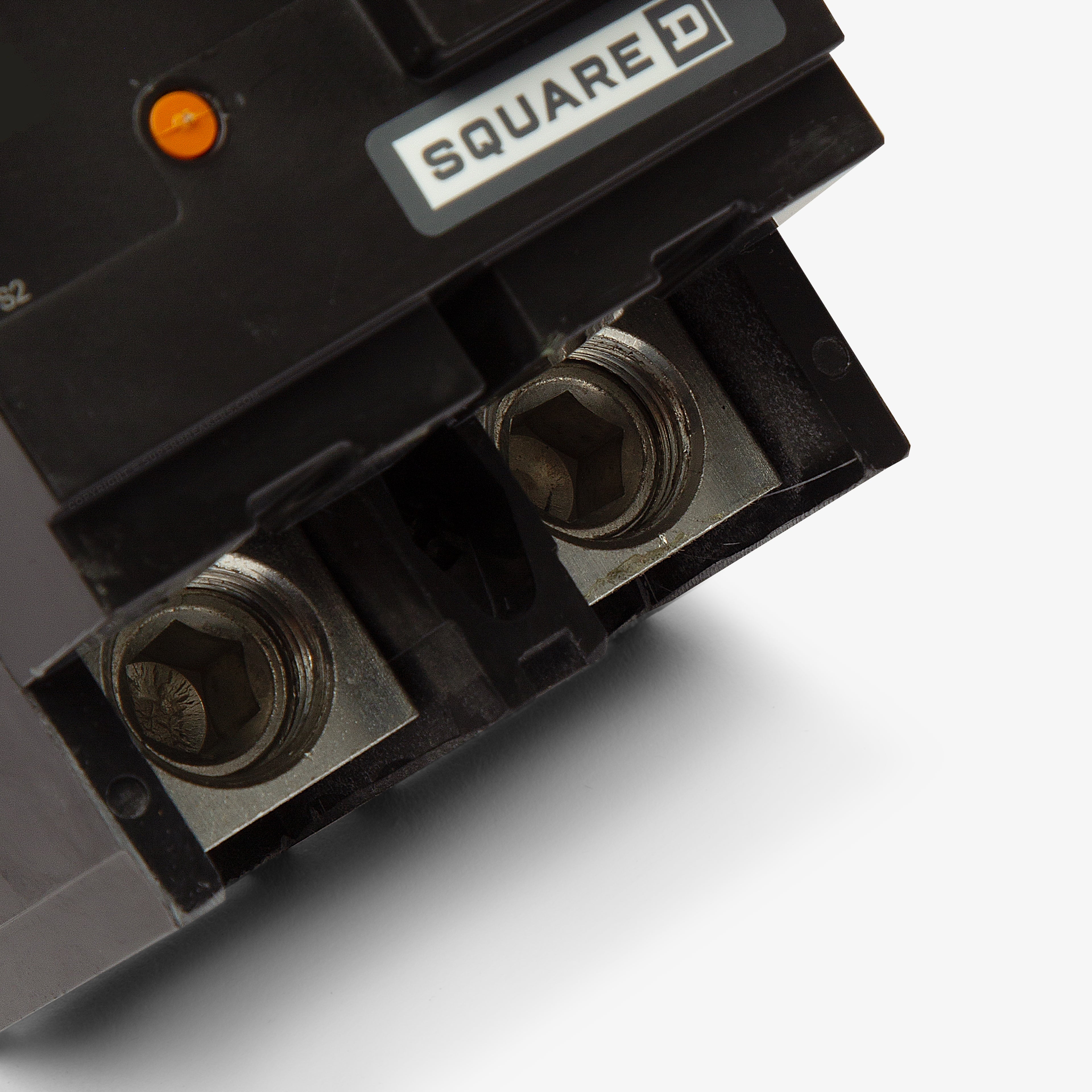

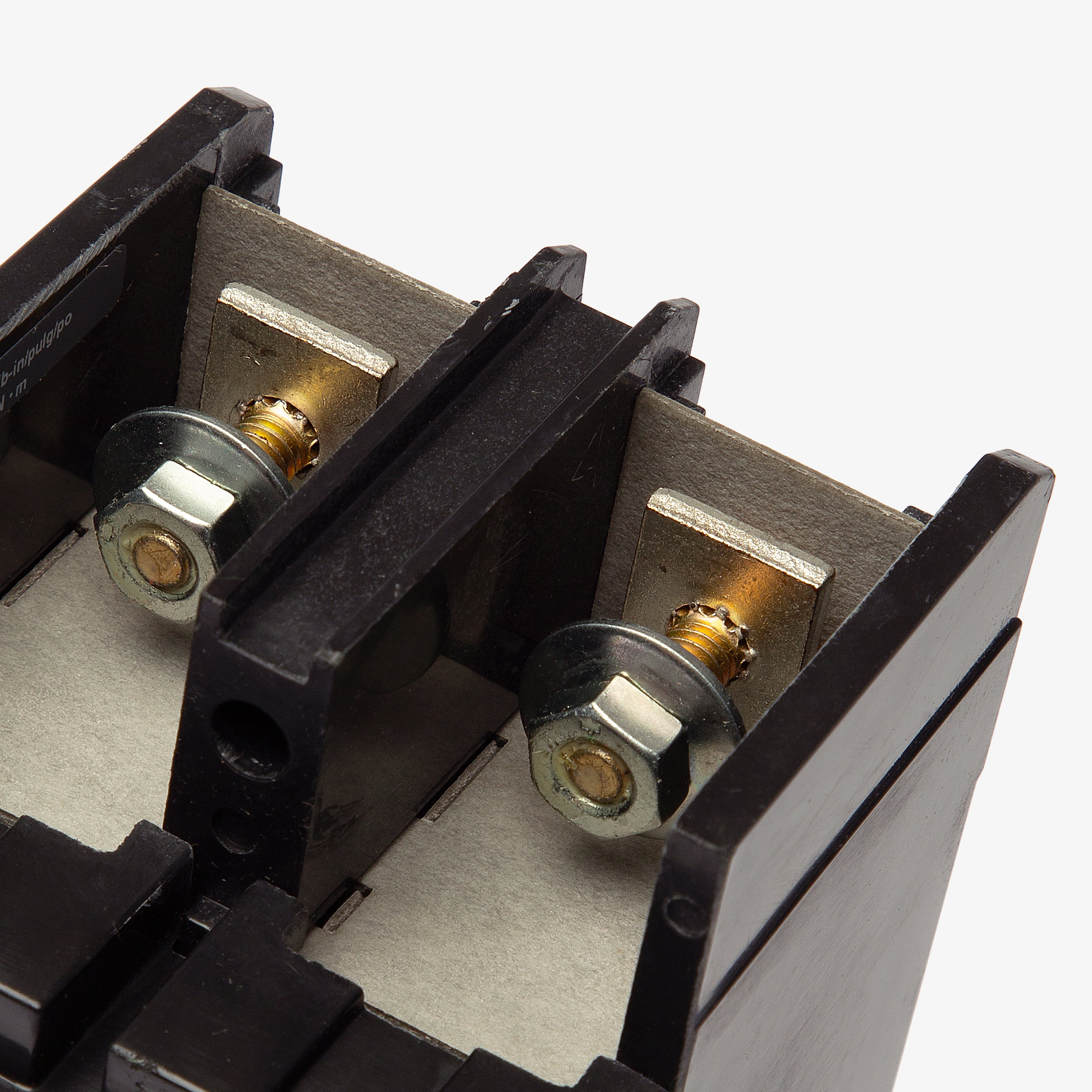

Engineered for commercial distribution, the Square D QDP22100TM is a 2-pole, 100A MCCB from the PowerPacT Q-Frame family. It provides thermal-magnetic protection for 240VAC systems. This unit-mount breaker installs into EZ Meter-Pak and MP Meter-Pak metering centers. It features line-side terminal nuts and load-side lugs, serving as a direct replacement for legacy Q22100 breakers. Rated for 25kAIC at 240V, it includes an 80% continuous current rating and a push-to-trip button.

Specifications

Brand Square D
Series QDP
Amperage 100A
Voltage 208Y/120VAC, 240VAC
Poles 2
Phase 1
AIC Rating 25kA @ 208Y/120VAC, 25kA @ 240VAC
Mounting Style Bolt-On
Terminal Type Stud/Tapped Pad
For Use With EZ Meter-Pak Metering Centers, MP Meter-Pak Metering Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 4 AWG - 300 kcmil (Al/Cu)
Max Wire 300 kcmil
Min Wire 4 AWG
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment
Accessories Terminal Nut Kit (Line Side)
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489
Approval CSA, IEC, NOM, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, Visual Trip Indicator
