Square D QDP22225TM - 225A 2 Pole Molded Case Circuit Breaker

New

$515.40 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

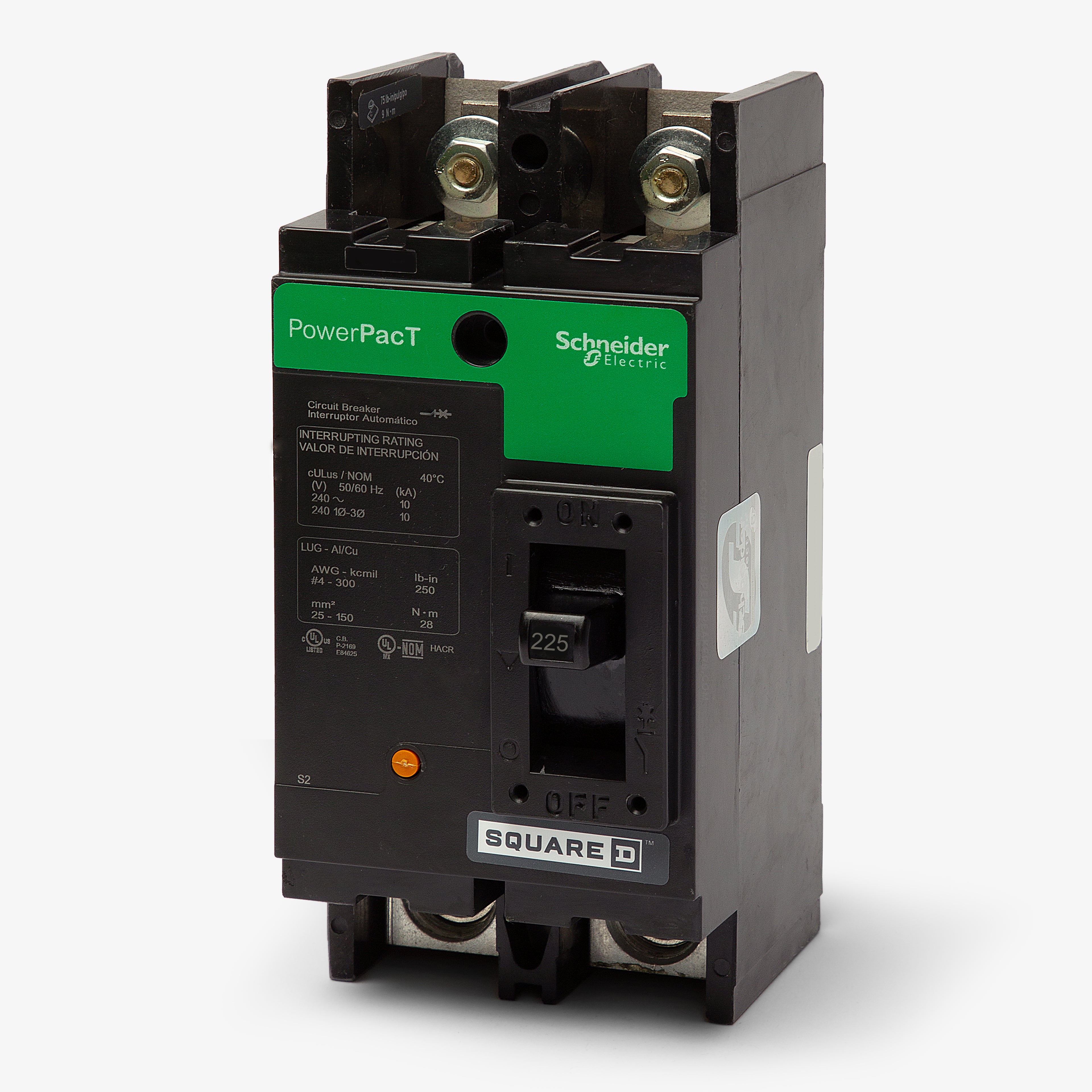

Built for commercial and industrial power distribution, this 225A PowerPacT Q-Frame breaker ensures reliable thermal-magnetic trip performance. The two-pole device mounts into EZ Meter-Pak centers, panelboards, and switchboards, serving as a functional replacement for the older Q22225 model. With a 25kA short-circuit current rating at 240VAC, it features a trip-free mechanism, quick-make/quick-break operation, and the signature Visi-Trip indicator.

Specifications

Brand Square D
Series QDP
Part Number QDP22225TM
Amperage 225A
Voltage 208Y/120VAC, 240VAC
Poles 2
Phase 1
AIC Rating 25kA @ 208Y/120VAC, 25kA @ 240VAC
Mounting Style Bolt-On

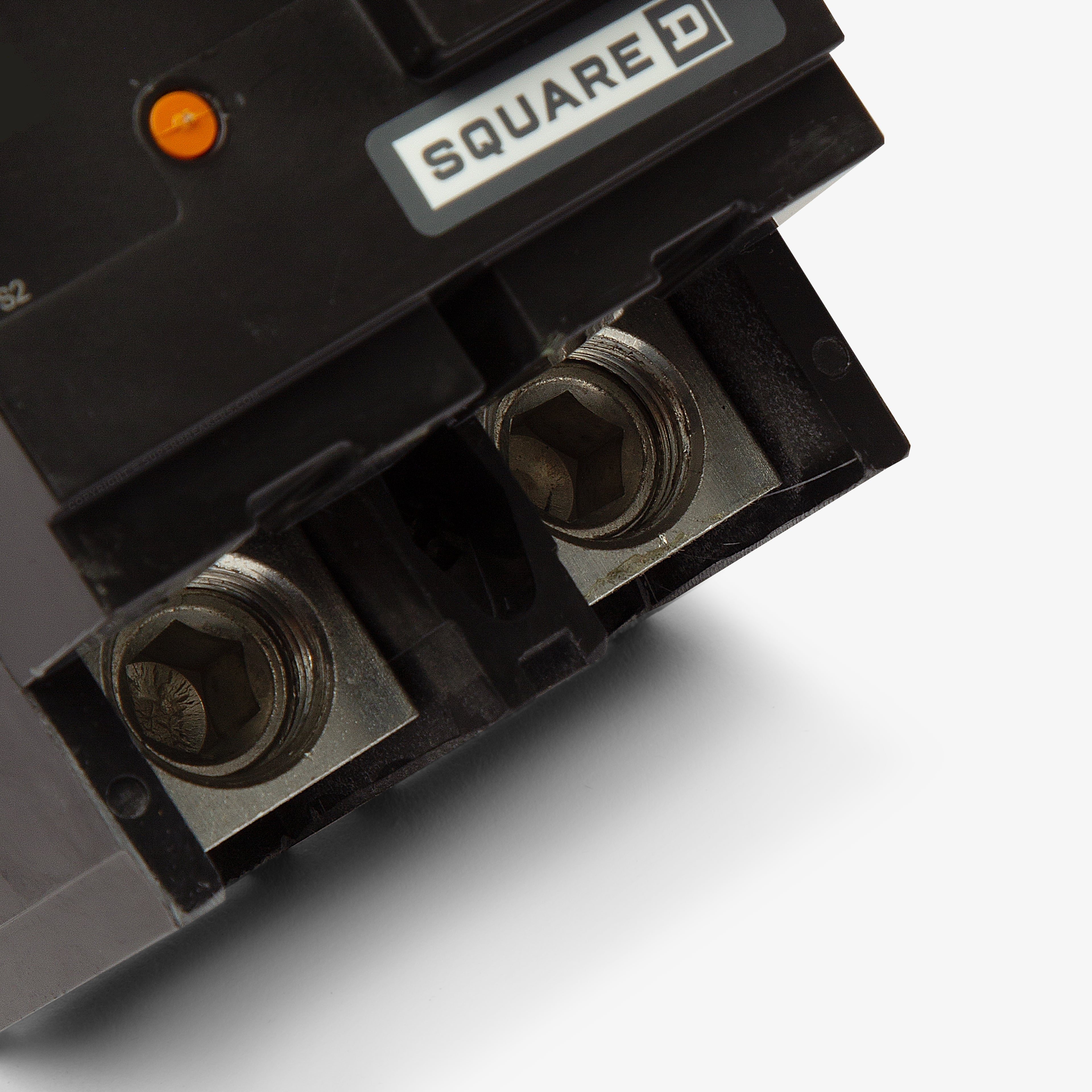

Terminal Type Stud/Tapped Pad
For Use With EZ Meter-Pak Meter Centers, Panelboards, Switchboards
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Wire Gauge 4 AWG - 300 kcmil (Al/Cu)
Max Wire 300 kcmil
Min Wire 4 AWG
Available Options Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle

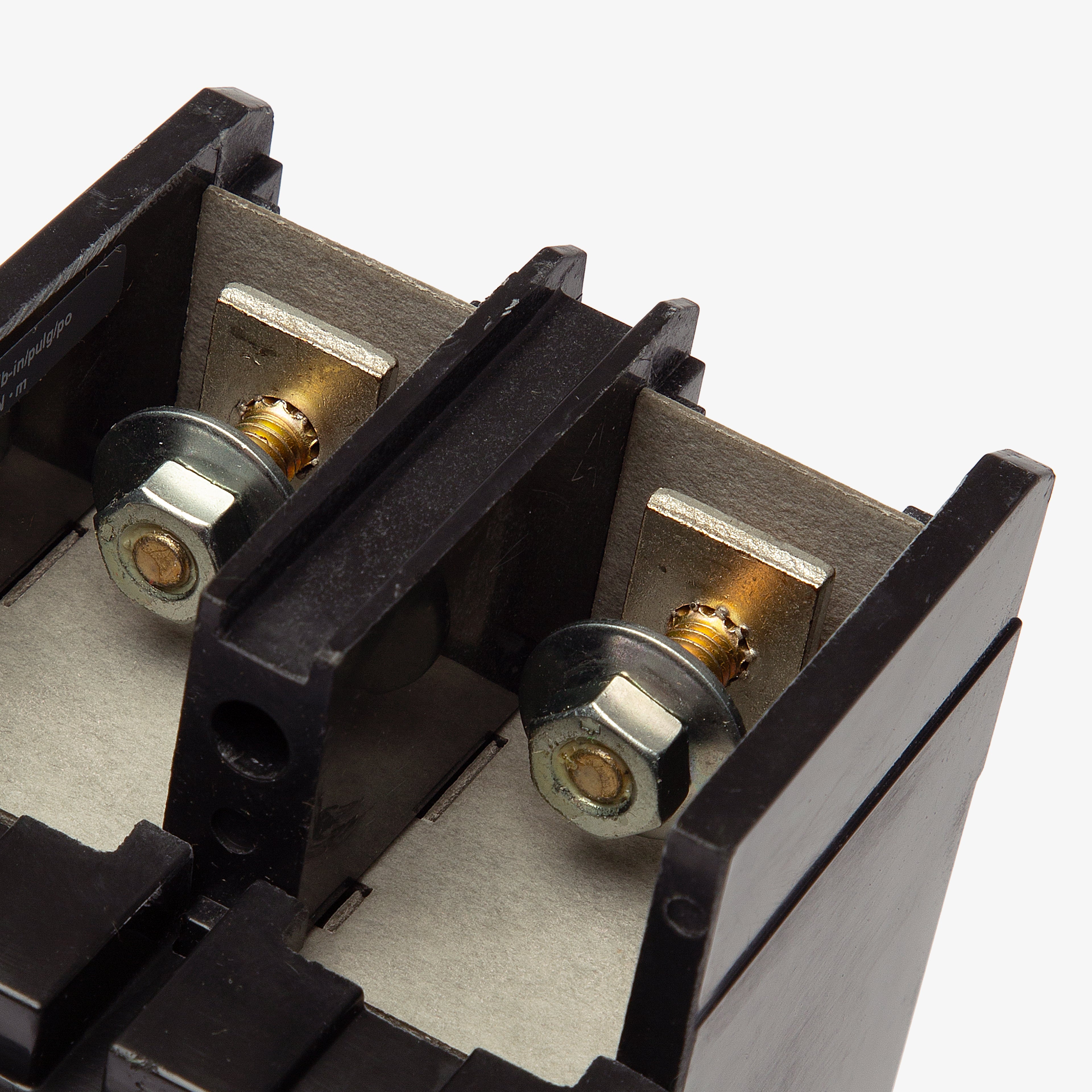

Accessories Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware
Standards CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489
Approval CSA, IEC, NOM, UL
Temp Rating -25C to 70C
Construction Features HACR Rated, 80% Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism
