Square D QGP22200TM Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Square D
QGP22200TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QGP22200TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

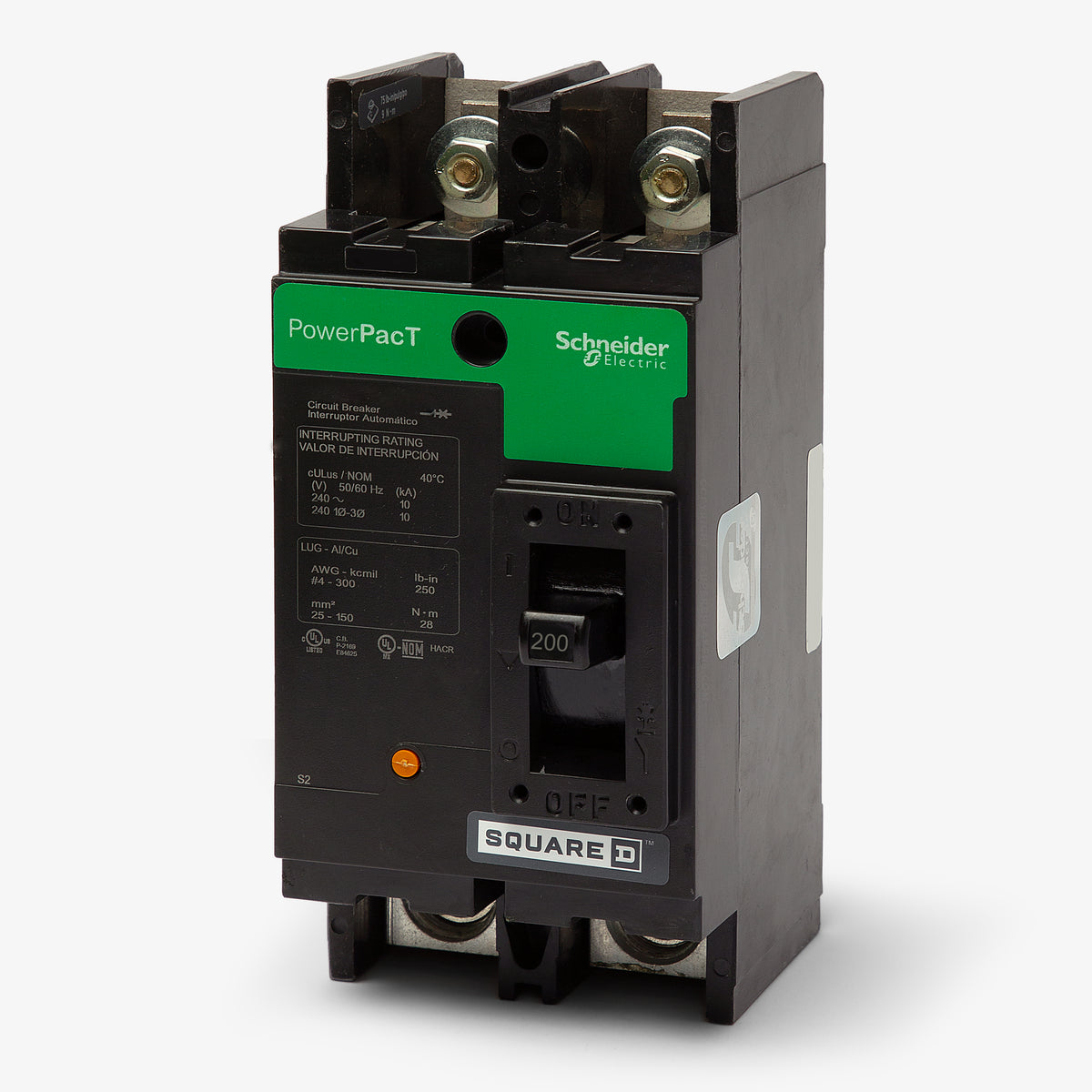

Square D QGP22200TM - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Serving as a high-capacity protection solution, the 200A QGP22200TM molded case circuit breaker is ideal for commercial facilities. It utilizes fixed thermal and magnetic trip elements for precise overcurrent defense. This bolt-on MCCB is configured for Square D EZ Meter-Pak metering centers. It features standard lug terminals that accept 4 AWG to 300 kcmil wire for reliable load connections. Boasting a 65 kAIC capacity at 240V, this Q-Frame breaker includes Visi-Trip technology.Specifications
| Brand | Square D |
|---|---|
| Part Number | QGP22200TM |
| Series | QGP |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC |
| Frame Type | QGP |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Meter-Pak Metering Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line Side Terminal Nuts, Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, 80% Rated, Non-Interchangeable Trip, Mercury Free, PVC Free |
Product FAQs
8 answersHow is the QGP22200TM connected within the panel?
This unit-mount breaker features studs with terminal nuts and washers on the line side, and standard mechanical lugs on the load side.
Which metering equipment is compatible with the QGP22200TM?
This breaker is specifically configured for installation in Square D EZ Meter-Pak metering centers.
What is the continuous current rating for this breaker?
The QGP22200TM is standard-rated for 80 percent continuous current.
Does this breaker feature a visual trip indicator?
Yes, it includes Square D Visi-Trip technology, which provides a highly visible red indicator when the breaker has tripped, allowing for quick identification of faulted circuits.
Can this breaker be used in standard Square D QO or Homeline load centers?
No, the QGP22200TM is a PowerPacT Q-Frame molded case circuit breaker designed for Meter-Pak metering centers and is not compatible with standard residential QO or Homeline load centers.
Is the QGP22200TM HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What does the P in the QGP22200TM part number indicate?
The P designates the specific mounting and termination style for Square D EZ Meter-Pak metering centers, featuring line side studs and load side lugs.
What is the UPC for the QGP22200TM?
The standard UPC for this Square D circuit breaker is 785901662693.
