Square D QO215EPD GFEP Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Square D
QO215EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QO215EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

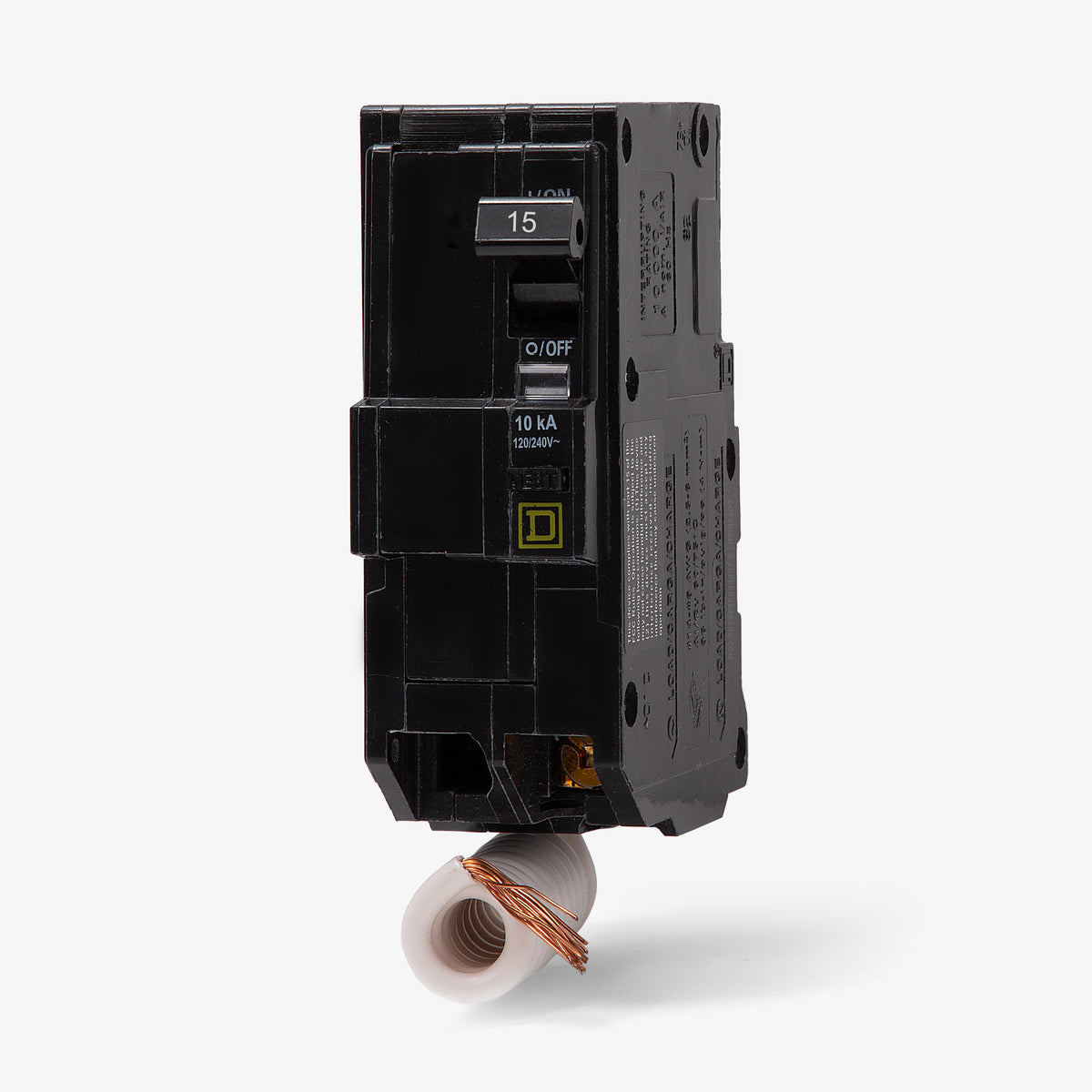

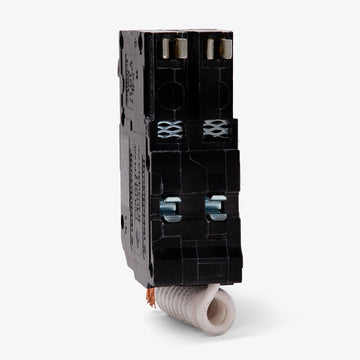

Square D QO215EPD - 15A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
25A GFEP Miniature Circuit Breaker
30A GFEP Miniature Circuit Breaker
40A GFEP Miniature Circuit Breaker
Description

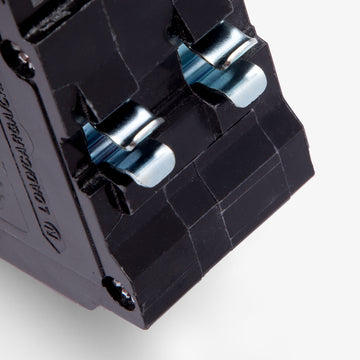

Engineered for equipment-level safety, the Square D QO215EPD is a 15A, two-pole miniature circuit breaker featuring 30mA ground fault sensitivity. It is specifically designed to protect machinery and heat tracing from low-level leakage currents, distinguishing it from standard 5mA personnel GFCI devices. This plug-on breaker mounts into standard QO load centers and NQ panelboards. It accepts 14-8 AWG copper or 12-8 AWG aluminum wiring via pressure plate terminals.Specifications
| Brand | Square D |
|---|---|
| Series | QO |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Standards | CSA C22.2 No. 5, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip, Class B Ground Fault Protection (30mA) |
Product FAQs
5 answersWhat is the ground fault trip threshold for the QO215EPD?
This breaker is an Equipment Protection Device (EPD) designed to trip at a 30 mA ground fault threshold. It is not a Class A GFCI breaker, which trips at 5 mA for personnel protection.
What applications are suitable for a 30 mA EPD breaker?
EPD breakers are typically used to protect equipment where a standard 5 mA GFCI might experience nuisance tripping. Common applications include heat trace cables, snow melting equipment, and well pumps.
Can I install this breaker in a Square D Homeline panel?
No. The QO215EPD is exclusively for use in Square D QO load centers and NQ panelboards. Homeline panels require HOM series breakers.
How is the pigtail neutral wired on this breaker?

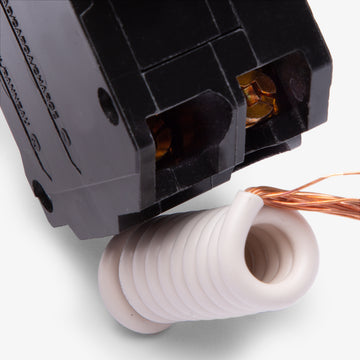

The coiled white pigtail wire must be connected directly to the panel neutral bus bar. The load neutral wire from the circuit then connects to the designated neutral terminal on the breaker itself.
How much panel space does this breaker require?
As a standard two-pole QO breaker, it requires two adjacent 3/4 inch spaces, taking up a total of 1.5 inches on the bus bar.
