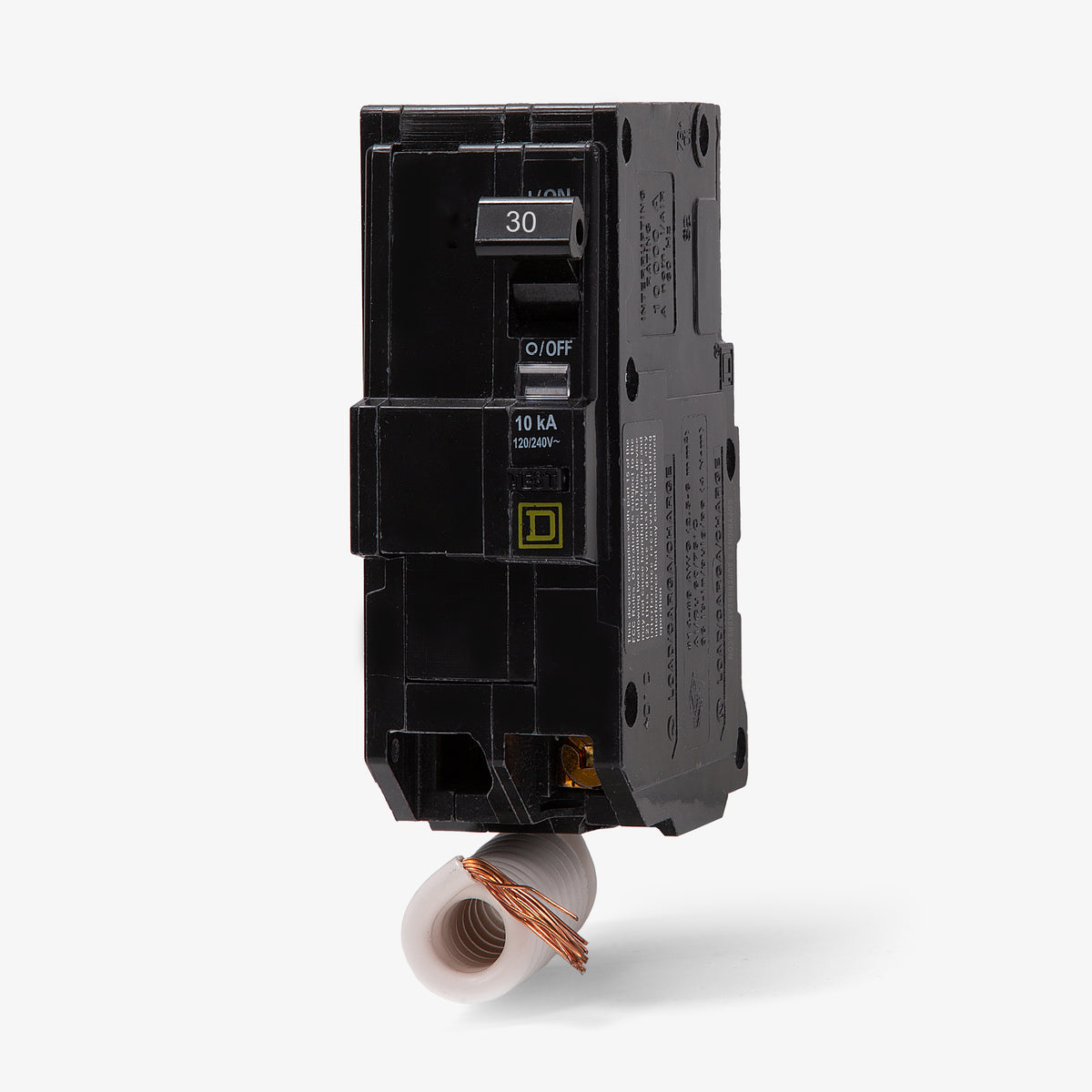

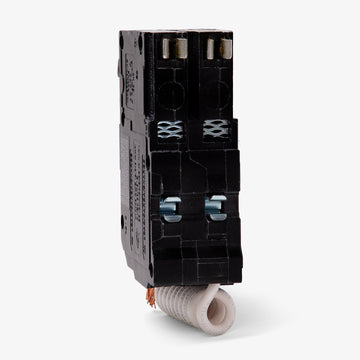

Square D QO230EPD GFEP Miniature Circuit Breaker
- 30A
- 2 Pole

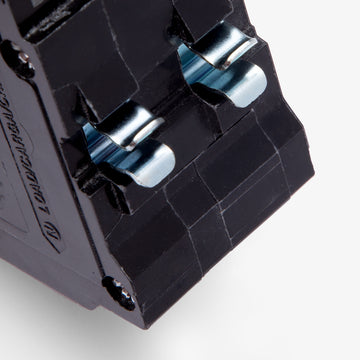

- Plug-On
Square D
QO230EPD
GFEP Miniature Circuit Breaker
Brand
Square D
SKU
QO230EPD
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO230EPD - 30A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFEP Miniature Circuit Breaker
20A GFEP Miniature Circuit Breaker
15A GFEP Miniature Circuit Breaker
Description
Built for commercial and industrial applications, the Square D QO230EPD provides reliable 30mA equipment protection (GFEP). This 30-amp, two-pole breaker prevents equipment damage from low-level ground faults without nuisance tripping on machinery. The plug-on design installs seamlessly into Square D QO load centers, as well as NQ and NQOD panelboards. It accepts 14-8 AWG copper or 12-8 AWG aluminum wiring via secure pressure plate terminals.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO230EPD |
| Series | QO |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Visual Trip Indicator (Factory Installed) |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, RoHS Compliant |
Product FAQs
6 answersWhat is the difference between this EPD breaker and a standard GFI breaker?
The QO230EPD is an Equipment Protection Device (GFEP) that trips at a 30 mA ground fault threshold. Standard GFI breakers (Class A) trip at a highly sensitive 5 mA threshold for personnel protection. EPD breakers are designed to protect equipment like well pumps and snow-melting cables from damage without causing nuisance tripping.
Does this breaker require a separate neutral wire connection?

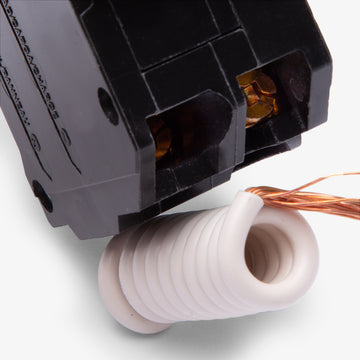

Yes. This specific model features a pigtail neutral connection. The attached coiled white wire must be manually landed on the neutral bar in your panelboard. It is not a plug-on neutral (PoN) breaker, so it will not connect to the neutral bar directly through the mounting clip.
Can I install the QO230EPD in a Square D Homeline load center?
No. QO series breakers are exclusively compatible with QO load centers, NQ panelboards, and legacy NQOD panelboards. They feature a 0.75-inch per pole width and will not physically fit into Homeline panels, which utilize a 1-inch breaker format.
How much panel space is required to mount this breaker?
As a 2-pole QO breaker, it requires two standard 0.75-inch spaces on the panel busbar, taking up 1.5 inches of total width.
What does the LIG trip function mean on this breaker?
The LIG designation indicates that this thermal-magnetic breaker provides Long-Time protection for standard overloads, Instantaneous protection for sudden short circuits, and Ground-Fault sensing to protect connected equipment from electrical leakage.
Does this breaker feature a tripped indicator?
Yes, it includes Square D's Visi-Trip window. When the breaker trips due to an overload, short circuit, or ground fault, a red indicator appears in the window, making it easy to quickly identify the tripped breaker in a crowded panel.
