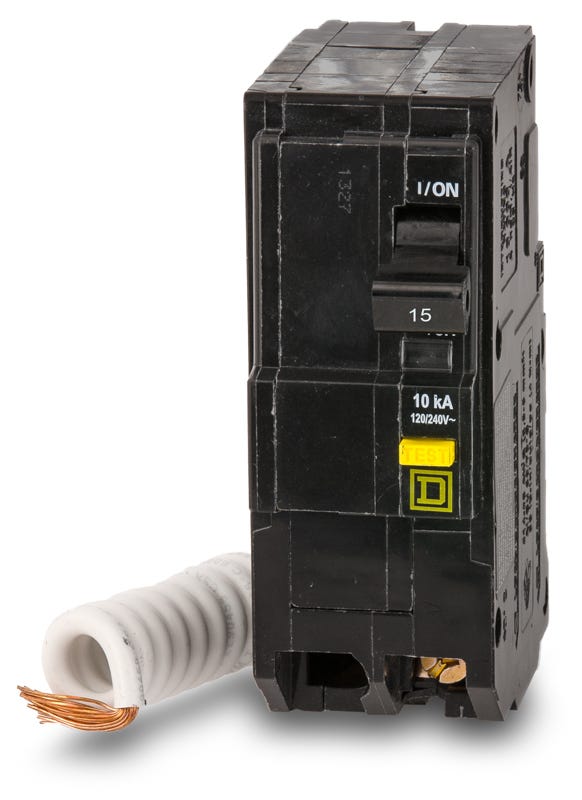

Square D QO215GF GFCI Miniature Circuit Breaker
- 15A
- 2 Pole
- Plug-On
Square D
QO215GF
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO215GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO215GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO215GF - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO215GF |
| Series | QO |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Sold out
Quantity
Square D QO215GF - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO215GF-R |
| Series | QO |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Similar Items
20A GFCI Miniature Circuit Breaker
25A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Delivering reliable personnel protection, this 15-amp two-pole breaker safeguards 120/240V circuits against dangerous ground faults. It utilizes a pigtail neutral wire to ensure accurate current monitoring across both phases in residential or commercial settings. Installs into traditional QO load centers and NQ panelboards via a secure plug-on connection. Note that this specific model is often substituted by the newer QO215GFI version. Features the signature Visi-Trip red indicator flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO215GF |
| Series | QO |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip |
Product FAQs
6 answersWhat panels are compatible with the QO215GF circuit breaker?
This breaker is designed exclusively for Square D QO Load Centers and NQ Panelboards. It is not interchangeable with Homeline or other manufacturer panels.
How is the neutral connected on the QO215GF?
This breaker features a pigtail neutral wire. The pigtail must be connected directly to the neutral bar in your panel for the ground fault circuitry to operate correctly.
Can I install this pigtail neutral breaker in a Plug-On Neutral (PON) load center?
Yes. Pigtail neutral breakers are fully compatible with Plug-On Neutral load centers. You simply wire the pigtail to the neutral bar just as you would in a traditional panel.
Does the QO215GF provide Class A ground fault protection?
Yes, it provides Class A ground fault protection for personnel. The breaker is designed to trip when it detects a ground fault current of 4 to 6 milliamperes.
Can this 2-pole GFCI breaker be used on a straight 240V circuit without a load neutral?
Yes. It can protect 240V loads that do not require a neutral wire, such as certain well pumps or heaters. However, the breaker's pigtail neutral must still be connected to the panel neutral bar to power the internal GFCI testing circuitry.
Does this breaker include arc fault (AFCI) protection?
No. The QO215GF provides thermal-magnetic overcurrent protection and ground fault (GFCI) protection only. It is not a dual-function breaker and does not detect arc faults.
