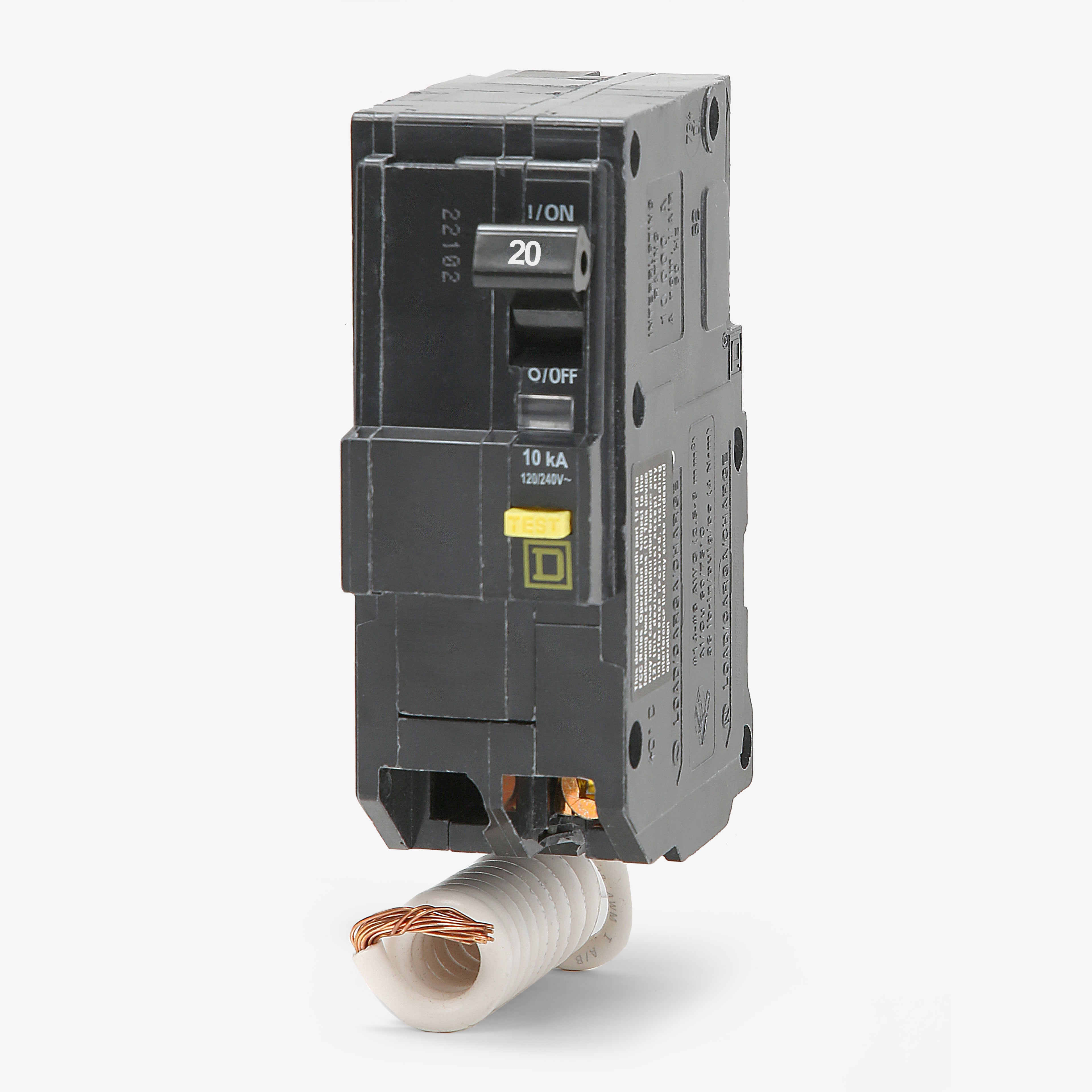

Square D QO220GFI GFCI Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Square D
QO220GFI
GFCI Miniature Circuit Breaker
Brand
Square D
SKU
QO220GFI
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO220GFI - 20A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO220GFI - 20A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO220GFI |
| Series | QO |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, RoHS, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, RoHS Compliant, Mercury Free |
Sold out
Quantity
Square D QO220GFI - 20A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO220GFI-R |
| Series | QO |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, RoHS, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, RoHS Compliant, Mercury Free |
Similar Items
15A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Part of the QO series, the Square D QO220GFI provides essential 20A ground-fault protection for electrical systems. This two-pole breaker is engineered to detect low-level ground faults and interrupt power to prevent electrical shock. It installs into QO load centers and NQ panelboards using a plug-on mounting style and included pigtail neutral. Featuring a 10 kAIC interrupt rating, it combines thermal-magnetic trip technology with 6mA Class A GFCI safety and a Visi-Trip window.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO220GFI |
| Series | QO |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, RoHS, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, Common Trip, RoHS Compliant, Mercury Free |
Product FAQs
7 answersWhat level of ground fault protection does the QO220GFI provide?
It provides Class A ground fault protection. The breaker is calibrated to trip when a ground fault exceeds 4 to 6 milliamperes (mA), providing standard personnel protection against electrical shock.
Does this breaker require a load center with a plug-on neutral bus?

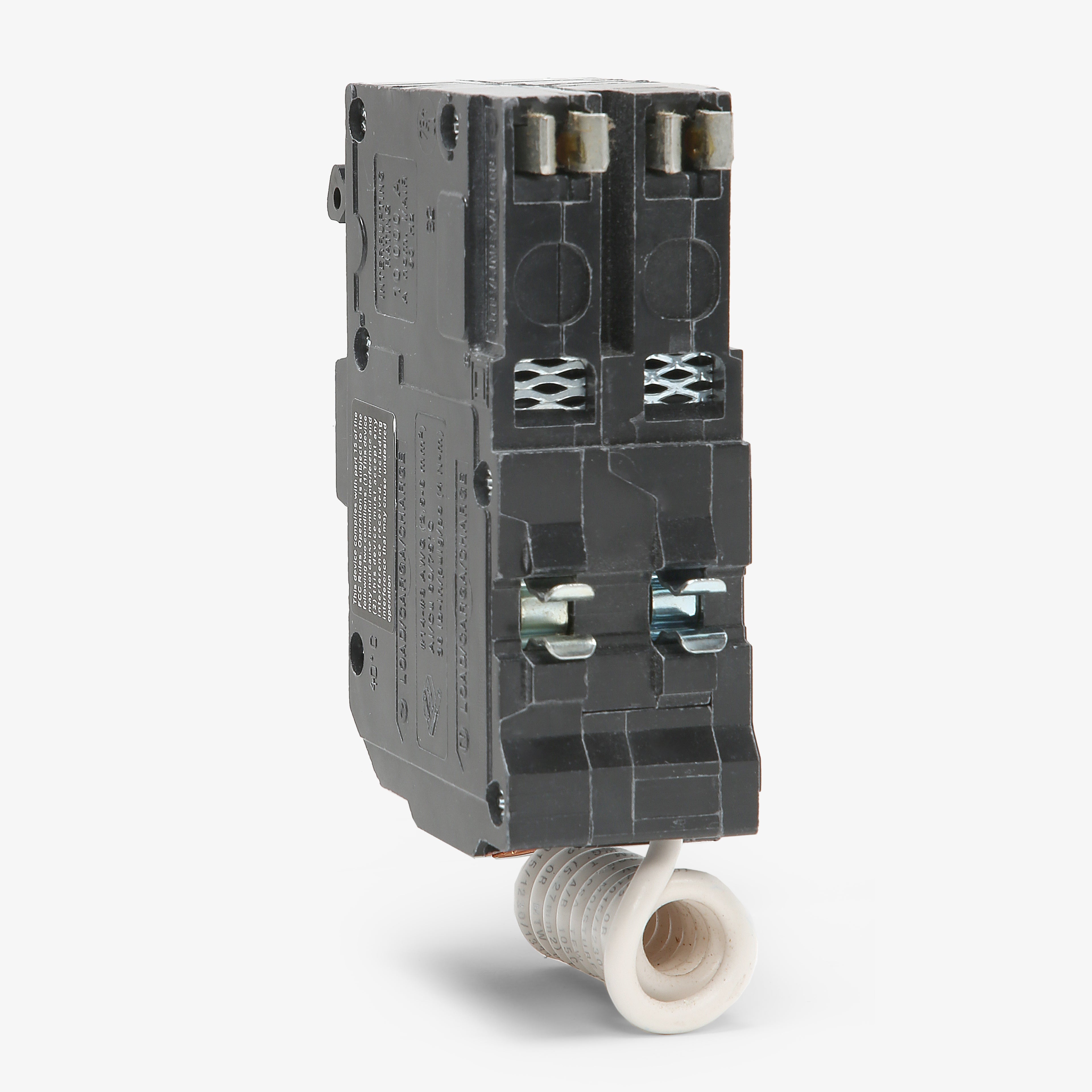

No. The QO220GFI uses a pigtail neutral. The coiled white wire connects directly to the panel's neutral bus bar, making it suitable for both older standard QO load centers and newer panels.
How do I identify if this breaker has tripped during a fault?

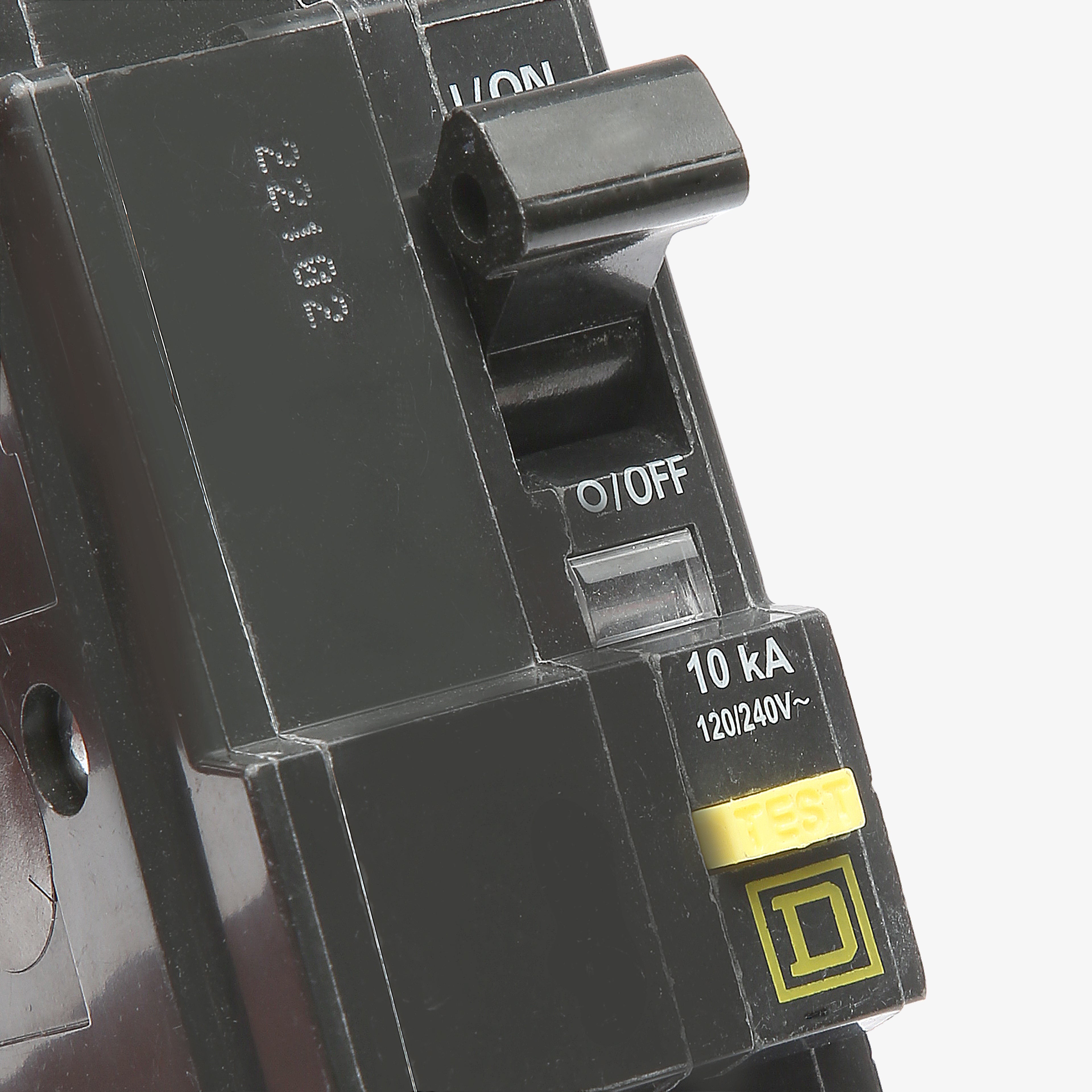

It features the Square D Visi-Trip indicator. Upon tripping, the handle rests in a center position and a bright red flag appears in the indicator window, allowing quick visual identification in a crowded panel.
Is this 2-pole GFCI breaker suitable for a multi-wire branch circuit?
Yes. A 2-pole GFCI can protect a 120/240V multi-wire branch circuit (shared neutral) or a straight 240V load. For a shared neutral application, the circuit neutral must land directly on the breaker's neutral load terminal, while the pigtail connects to the panel neutral bar.
Can I install this QO circuit breaker in a Square D Homeline panel?
No. QO series breakers feature a 3/4-inch per pole format and specific mounting clips. They are mechanically incompatible with 1-inch format Homeline load centers.
How much panel space does this ground fault breaker require?
As a 2-pole QO series breaker, it requires two standard 3/4-inch spaces in a compatible QO load center or NQ panelboard.
What is the difference between catalog numbers QO220GFI, QO220GFIC, and QO220GFICP?
The circuit breaker itself is identical across these numbers. Suffixes like C or CP simply designate retail commercial clamshell packaging instead of standard bulk packaging.
