Square D QO225VH Miniature Circuit Breaker
- 25A
- 2 Pole
- Plug-On
Square D
QO225VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO225VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

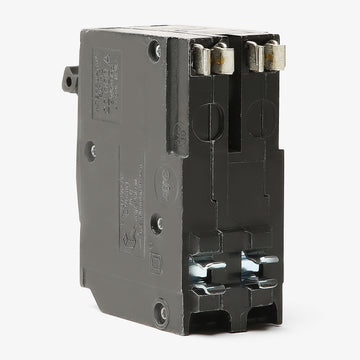

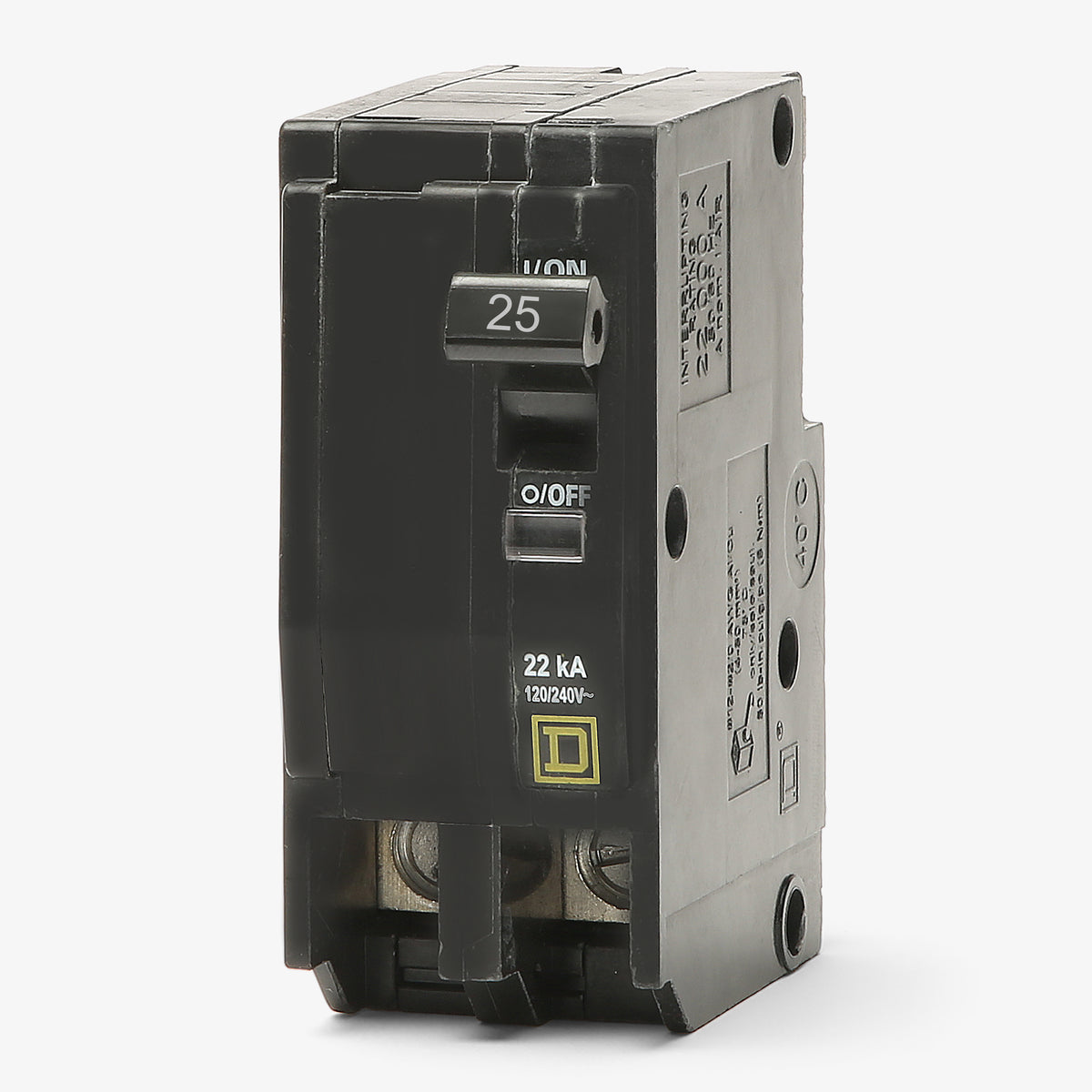

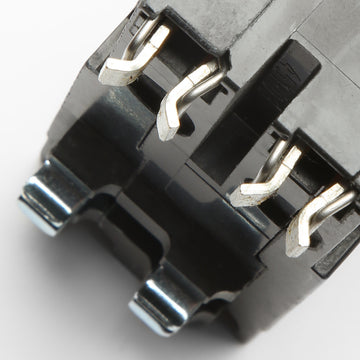

Square D QO225VH - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial environments, the QO225VH provides reliable thermal-magnetic protection. This 2-pole, 25A component handles 120/240VAC electrical systems while offering a high interrupting capacity of 22kAIC. Installation is straightforward into compatible Square D enclosures. It snaps securely into standard QO load centers, as well as NQ and NQOD panelboards, accommodating 14-8 AWG aluminum or copper wiring.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO225VH |
| Series | QO |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, High Interrupting Capacity |
Product FAQs
5 answersWhat does the VH suffix mean on the QO225VH circuit breaker?
The VH suffix indicates a very high interrupting rating of 22 kAIC at 120/240VAC. Standard QO breakers without this suffix typically have a 10 kAIC rating.
Which electrical panels are compatible with the QO225VH breaker?
This plug-on breaker is designed for use in Square D QO Load Centers, NQ Panelboards, and NQOD Panelboards. It is not compatible with Homeline panels.
Does the QO225VH feature Visi-Trip indication?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips, a highly visible red indicator appears in the window to help quickly identify the faulted circuit.

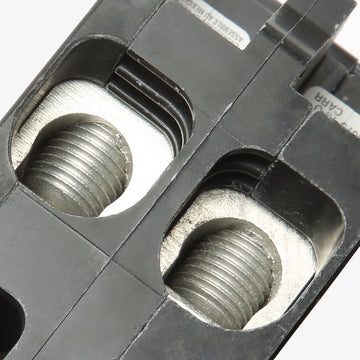

What is the recommended terminal tightening torque for the QO225VH?
The pressure plate terminals on this breaker should be torqued to 40.7 lb-in (4.6 N-m) for secure connections with 14-8 AWG copper or aluminum wire.
Can I use the QO225VH to replace a standard QO225?
Yes. The QO225VH shares the same physical dimensions and plug-on mounting style as the standard QO225. It can be used as a direct replacement, offering an upgraded 22 kAIC interrupting rating where higher fault current protection is required.
