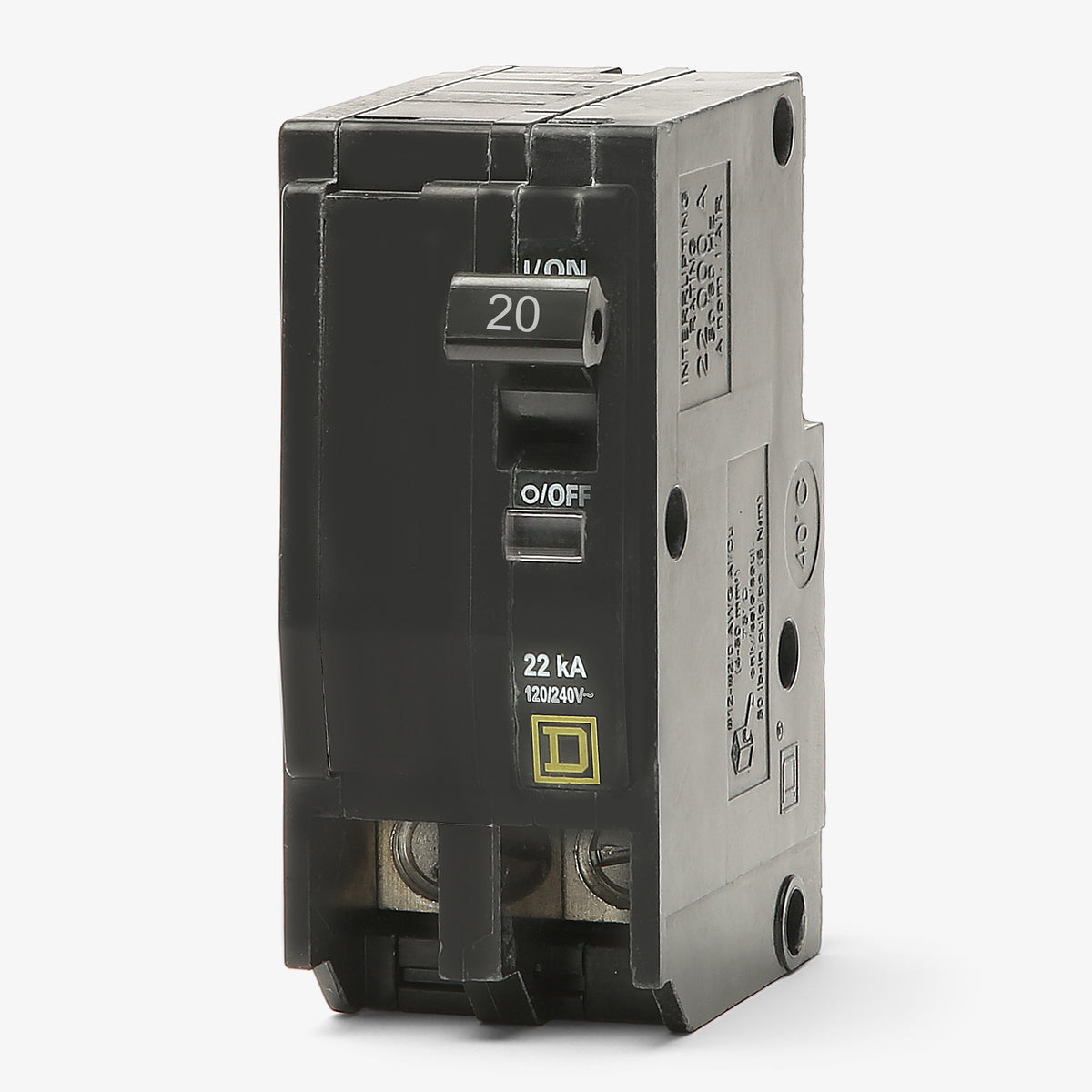

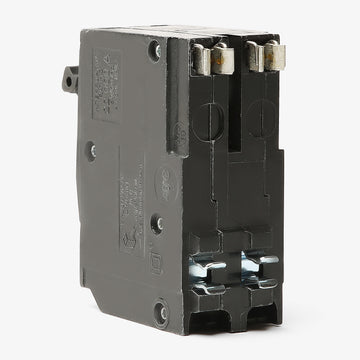

Square D QO220VH Miniature Circuit Breaker
- 20A
- 2 Pole

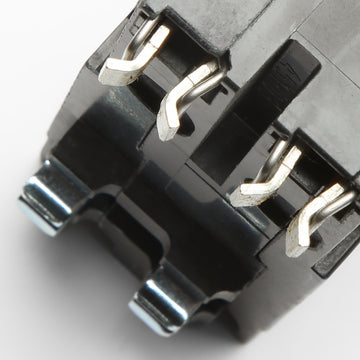

- Plug-On
Square D
QO220VH
Miniature Circuit Breaker
Brand
Square D
SKU
QO220VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO220VH - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO220VH - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO220VH |
| Series | QO |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Sold out
Quantity
Square D QO220VH - 20A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO220VH |
| Series | QO |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Similar Items
15A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Designed for residential and commercial systems, the Square D QO220VH offers 20A of reliable thermal-magnetic protection. This two-pole breaker is HACR rated, making it ideal for heating, air conditioning, and refrigeration loads. The plug-on configuration installs into Square D QO load centers, plus NQ and NQOD panelboards. It accepts 14-8 AWG wiring via pressure plate terminals.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO220VH |
| Series | QO |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120VAC, 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 120/240VAC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Al/Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Product FAQs
7 answersCan I install the QO220VH in a Homeline load center?
No, Square D QO series breakers are not interchangeable with Homeline panels. The QO220VH is designed exclusively for QO load centers, NQ panelboards, and NQOD panelboards.
What does the "VH" stand for in the QO220VH catalog number?
The "VH" suffix indicates a high interrupting capacity. While standard QO breakers have a 10 kAIC rating, the QO220VH is rated for 22 kAIC at 120/240V AC.
Is the QO220VH circuit breaker HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific listing.

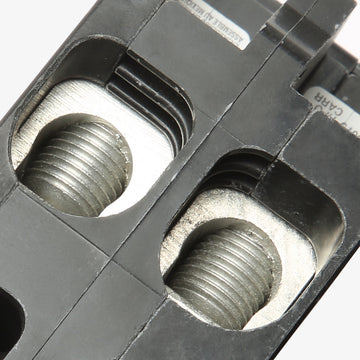

What is the recommended tightening torque for the pressure plate terminals on the QO220VH?
The manufacturer specifies a tightening torque of 40.7 lb-in (4.6 N.m) for the pressure plate terminals.
Does this breaker feature a Visi-Trip indicator?
Yes, it includes the Square D Visi-Trip visual indicator, which displays a highly visible red flag when the breaker has tripped.
Can I use the QO220VH to replace a standard QO220 breaker?
Yes. The QO220VH shares the same physical dimensions and mounting style as the standard QO220 but offers a higher 22 kAIC interrupting rating, making it a safe and direct upgrade where higher fault current protection is required.
Does the QO220VH provide GFCI or AFCI protection?
No, this is a standard thermal-magnetic circuit breaker. It provides overload and short-circuit protection but does not include Ground Fault (GFCI) or Arc Fault (AFCI) circuitry.
