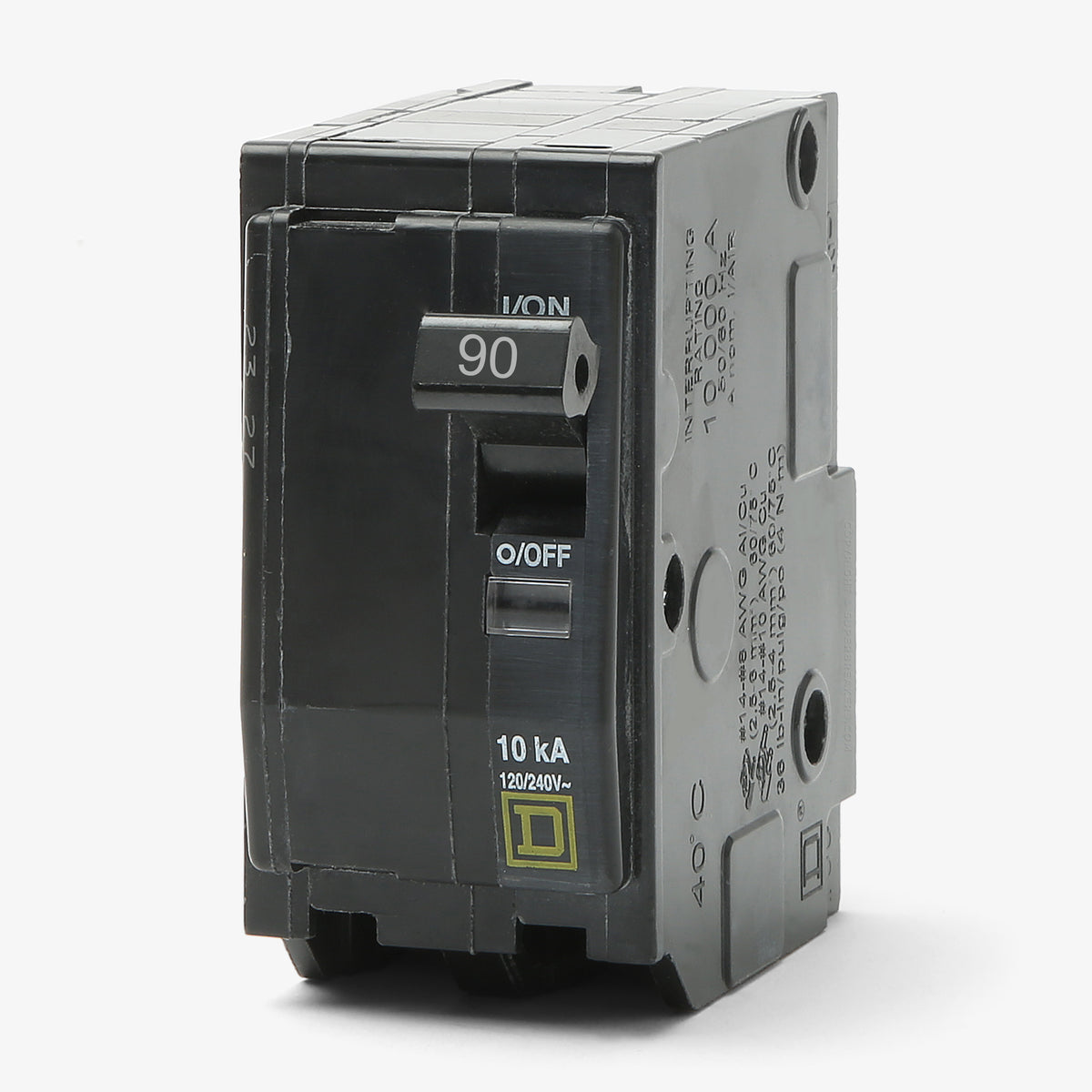

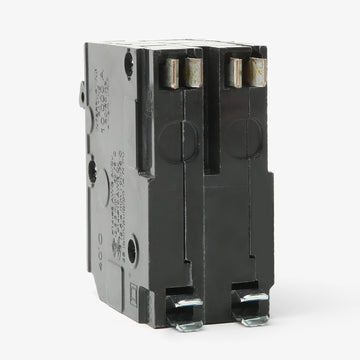

Square D QO290 Miniature Circuit Breaker
- 90A
- 2 Pole
- Plug-On
Square D
QO290
Miniature Circuit Breaker
Brand
Square D
SKU
QO290
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QO290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QO290 - 90A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO290 |
| Series | QO |
| Amperage | 90A |
| Poles | 2 |

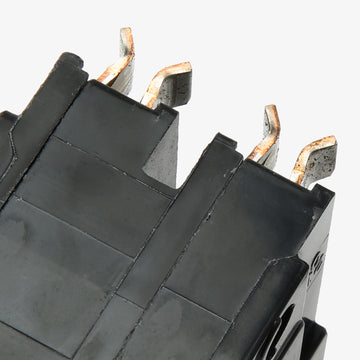

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|

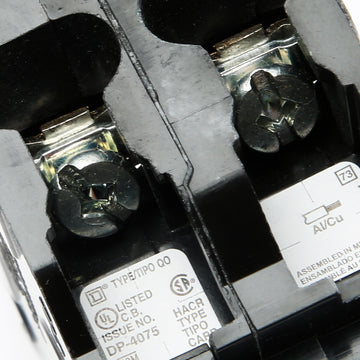

| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visual Trip Indicator (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, RoHS Compliant |
Sold out
Quantity
Square D QO290 - 90A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QO290-R |
| Series | QO |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visual Trip Indicator (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, RoHS Compliant |
Similar Items
100A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Built for standard residential and commercial applications, the QO290 is a two-pole, 90-amp miniature circuit breaker. It provides dependable thermal-magnetic protection for 120/240VAC circuits. This plug-on breaker installs into Square D QO load centers, as well as NQ and NQOD panelboards. The proven QO design ensures a secure connection and straightforward integration into existing systems. With a 10kAIC rating, it meets typical branch circuit requirements.Specifications
| Brand | Square D |
|---|---|
| Part Number | QO290 |
| Series | QO |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visual Trip Indicator (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Mercury Free, RoHS Compliant |
Product FAQs
5 answersCan I install the Square D QO290 in a Homeline load center?
No. Homeline panels require Homeline (HOM) circuit breakers. The QO290 is designed exclusively for Square D QO load centers, NQ panelboards, and NQOD panelboards.
What is the difference between the Square D QO290 and QOB290?
The QO290 features a plug-on mounting design. The QOB290 is the bolt-on equivalent, designed for use in NQ and NQOD panelboards that require bolt-on connections.
Does the QO290 include a Visi-Trip indicator?
Yes. It features the Visi-Trip indicator, which displays a highly visible red flag when the breaker trips, helping you quickly identify the tripped circuit.
Is the QO290 HACR rated?
Yes, this circuit breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific overcurrent protection.
How many panel spaces does the QO290 occupy?
It requires two standard 3/4-inch spaces in a compatible load center or panelboard.
