Square D QOB145 Miniature Circuit Breaker
- 45A
- 1 Pole
- Bolt-On
Square D
QOB145
Miniature Circuit Breaker
Brand
Square D
SKU
QOB145
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

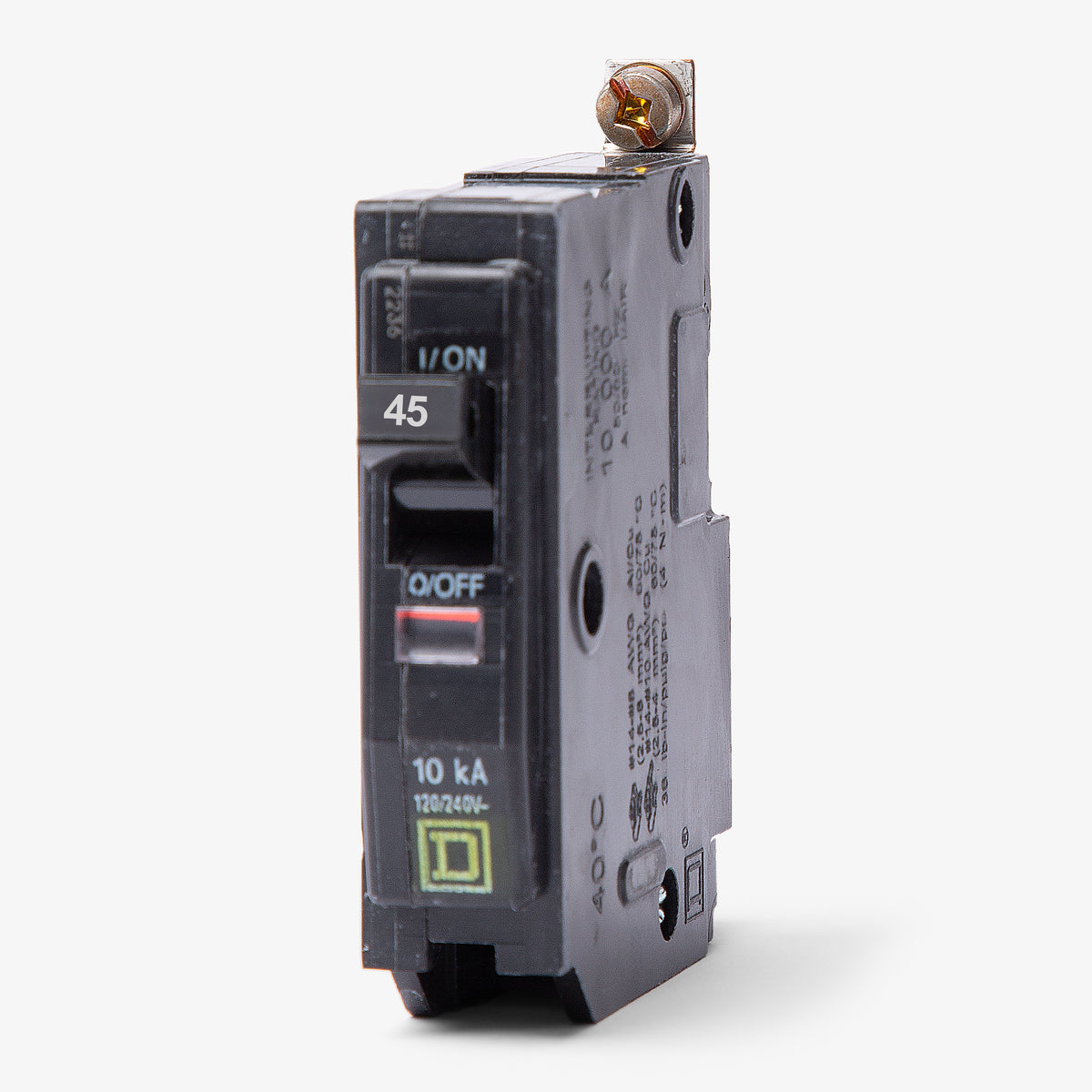

Square D QOB145 - 45A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
60A 1 Pole Miniature Circuit Breaker
Description
Part of the renowned QO family, the Square D QOB145 is a 45A, 1-pole miniature circuit breaker. It delivers reliable overcurrent and short-circuit protection for commercial and industrial electrical systems. Designed for a secure fit, this breaker bolts into Square D NQ and NQOD panelboards. The bolt-on mounting style guarantees a tight connection that resists loosening over time in high-vibration environments.Specifications
| Brand | Square D |
|---|---|
| Series | QOB |
| Amperage | 45A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersCan I install the QOB145 in a standard QO load center?
No. The QOB145 is a bolt-on circuit breaker designed for NQ and NQOD panelboards. Standard QO load centers require plug-on QO breakers, not bolt-on QOB types.
What is the recommended lug torque for the QOB145?
The box lugs on the QOB145 should be torqued to 44.3 lb-in (5 N.m) for 8-2 AWG aluminum or copper wire.
Does the QOB145 feature a Visi-Trip indicator?
Yes. Like most QO and QOB breakers, it includes a Visi-Trip indicator that displays a highly visible red flag when the breaker has tripped, making it easy to identify the faulted circuit in a crowded panel.
Is there a version of this 45A 1-pole breaker with a higher interrupting rating?
Yes. While the standard QOB145 is rated for 10kAIC at 120/240VAC, you can use the QHB145 for applications requiring a 65kAIC rating.
Is a 45A 1-pole breaker a standard size?
While 45A is an uncommon amperage for a 1-pole breaker, it is a standard factory rating manufactured by Square D for specific equipment loads that require exactly 45 amps of overcurrent protection on a single 120V leg.
