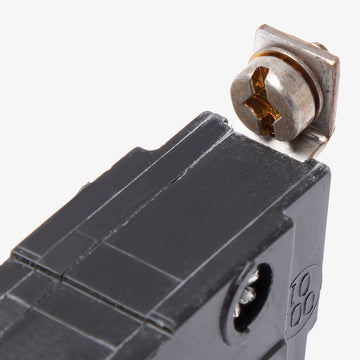

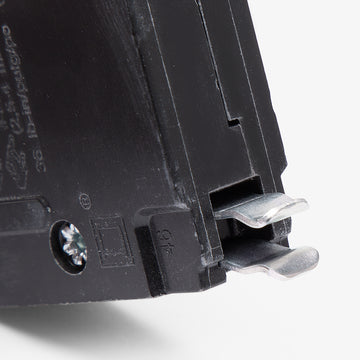

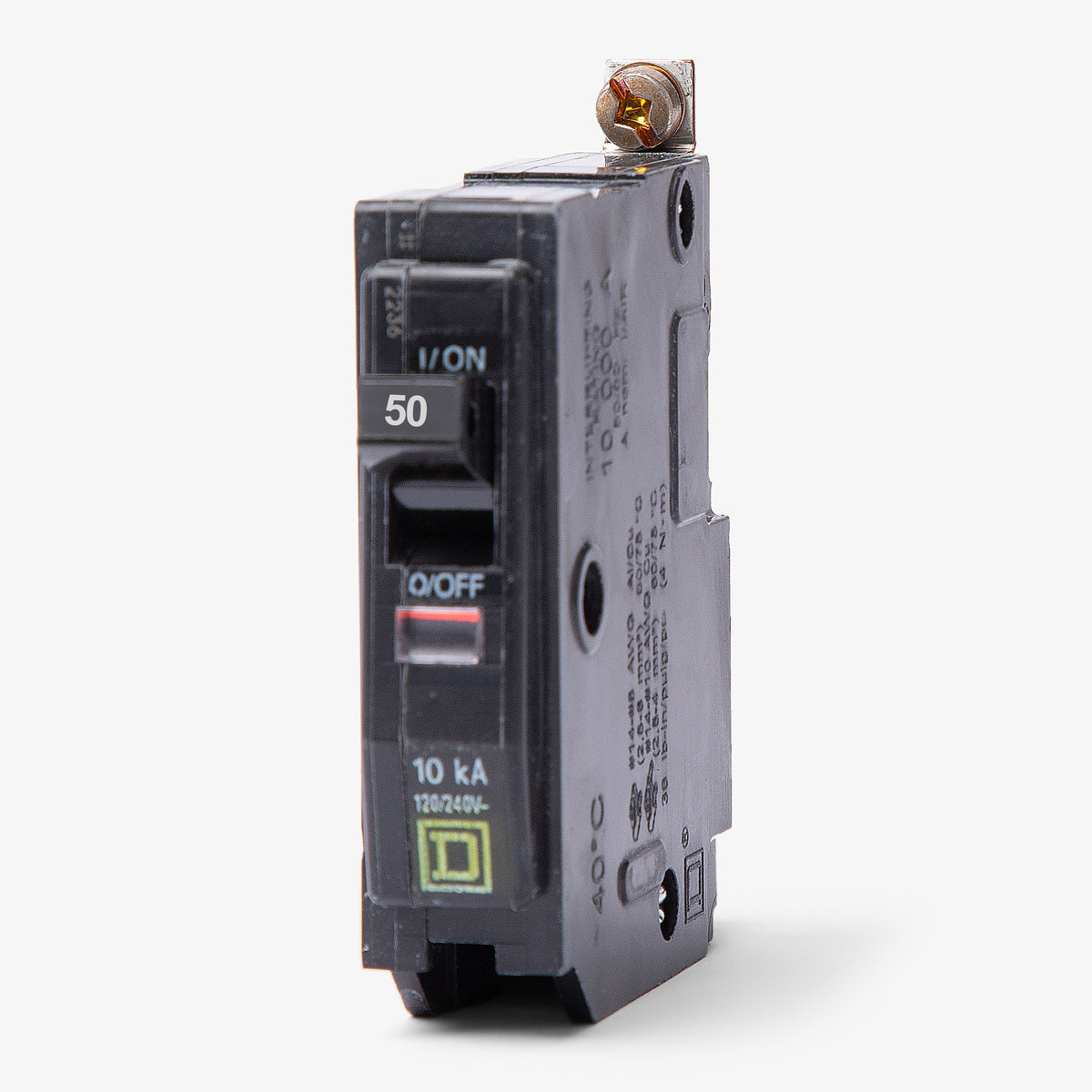

Square D QOB150 Miniature Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
Square D
QOB150
Miniature Circuit Breaker
Brand
Square D
SKU
QOB150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB150 - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB150 |
| Series | QOB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Quantity
Square D QOB150 - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB150-R |
| Series | QOB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Similar Items
60A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
35A 1 Pole Miniature Circuit Breaker
Description
Providing robust electrical safety, the Square D QOB150 is a 50A, 1-pole miniature circuit breaker. It is engineered for heavy-duty commercial and industrial applications requiring consistent thermal-magnetic protection. This unit is specifically manufactured to mount into Square D NQ and NQOD panelboards. Its bolt-on terminal design ensures a permanent, high-integrity connection that prevents arcing and withstands mechanical stress. With a 10 kAIC capacity, it is HACR rated for HVAC loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB150 |
| Series | QOB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated |
Product FAQs
5 answersWhich panelboards are compatible with the QOB150 circuit breaker?
The QOB150 is a bolt-on breaker designed specifically for Square D NQ and NQOD panelboards. It cannot be installed in standard QO load centers, which require plug-on breakers.
What is the plug-on equivalent for the QOB150?
If you are installing a 50A, 1-pole breaker in a standard Square D QO load center rather than a bolt-on panelboard, the correct plug-on equivalent is catalog number QO150.
What wire sizes does the QOB150 accept, and what is the recommended torque?
The box lugs on this breaker accept 8 AWG to 2 AWG aluminum or copper wire. The recommended tightening torque for the terminals is 44.3 lb-in.
Can the QOB150 be used in DC power systems?
Yes, in addition to its standard AC ratings, this breaker is rated for DC applications up to 48VDC with an interrupting capacity of 5kAIC.
Does the QOB150 feature a Visi-Trip indicator?
Yes, this breaker includes the Square D Visi-Trip indicator. It displays a highly visible red flag when the breaker has tripped, allowing for rapid identification of a faulted circuit within the panelboard.
