Square D QOB210 Miniature Circuit Breaker
- 10A
- 2 Pole
- Bolt-On
Square D
QOB210
Miniature Circuit Breaker
Brand
Square D
SKU
QOB210
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

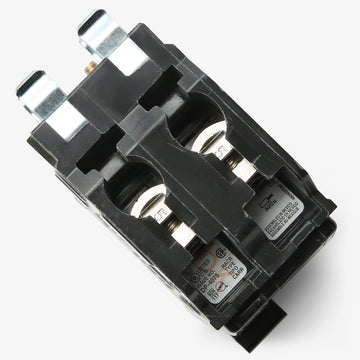

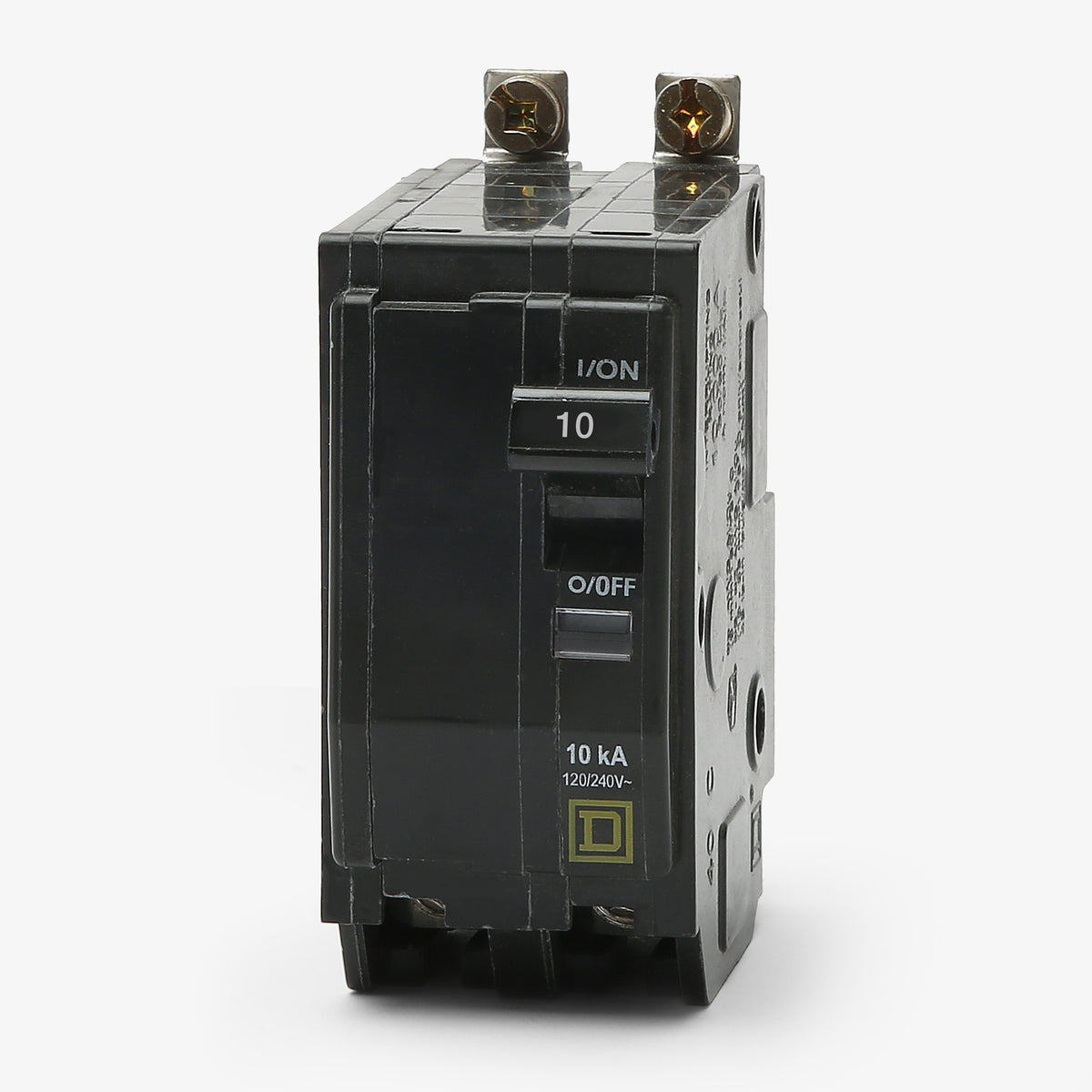

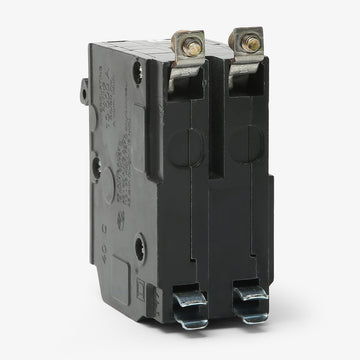

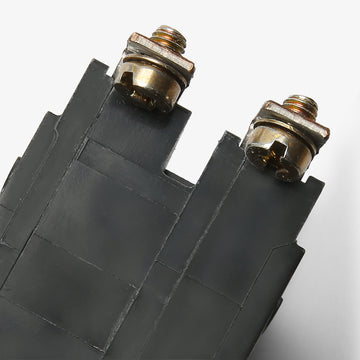

Square D QOB210 - 10A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Part of the QO family, the Square D QOB210 is a two-pole 10A miniature circuit breaker built for commercial environments. It provides reliable overload and short-circuit protection with a common trip mechanism, ensuring both poles open simultaneously during a fault. This unit mounts into NQ and NQOD panelboards using a robust bolt-on connection. Pressure plate terminals accommodate 14-8 AWG wire.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB210 |
| Series | QOB |
| Amperage | 10A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Pressure Plate |
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
8 answersCan I install the QOB210 in a standard QO load center?
No. The QOB210 features a bolt-on connection designed specifically for NQ and NQOD panelboards. Standard QO load centers require plug-on QO breakers.
Is the Square D QOB210 HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment motor group combinations.
How does the QOB210 mount to the panel bus?
It uses a bolt-on connection that secures directly to the busbar of NQ or NQOD panelboards. This provides a secure mechanical and electrical connection that is ideal for commercial and industrial environments.
Is there a 22kAIC version of the 10A QOB breaker?
No. Square D QOB-VH breakers, which offer a 22kAIC rating, start at 15 amps. The 10-amp QOB210 is only available with a standard 10kAIC rating.
Does Square D manufacture a 10A QOB breaker with ground fault (GFI) protection?
No. Square D QOB-GFI and QOB-EPD breakers are only manufactured in 15-amp ratings and higher. If a 10-amp circuit requires ground fault protection, it must be provided by a separate device.
Are 1-pole and 3-pole versions of this 10A breaker available?
Yes. The 10-amp QOB series is also available in a 1-pole configuration (QOB110) and a 3-pole configuration (QOB310).
Is the QOB210 SWD (Switching Duty) rated for fluorescent lighting?
No. Square D SWD ratings for switching 120VAC fluorescent lighting loads apply only to 15-amp and 20-amp QO and QOB breakers.
Is this breaker HID rated for high-intensity discharge lighting?
No. Square D QOB-HID breakers are only available in 15-amp to 50-amp ratings. The 10-amp QOB210 does not carry an HID rating.
