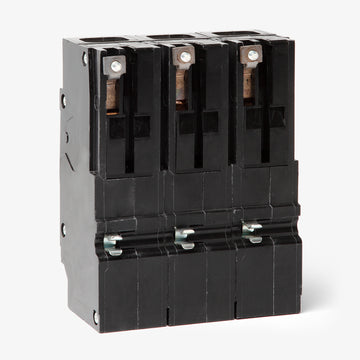

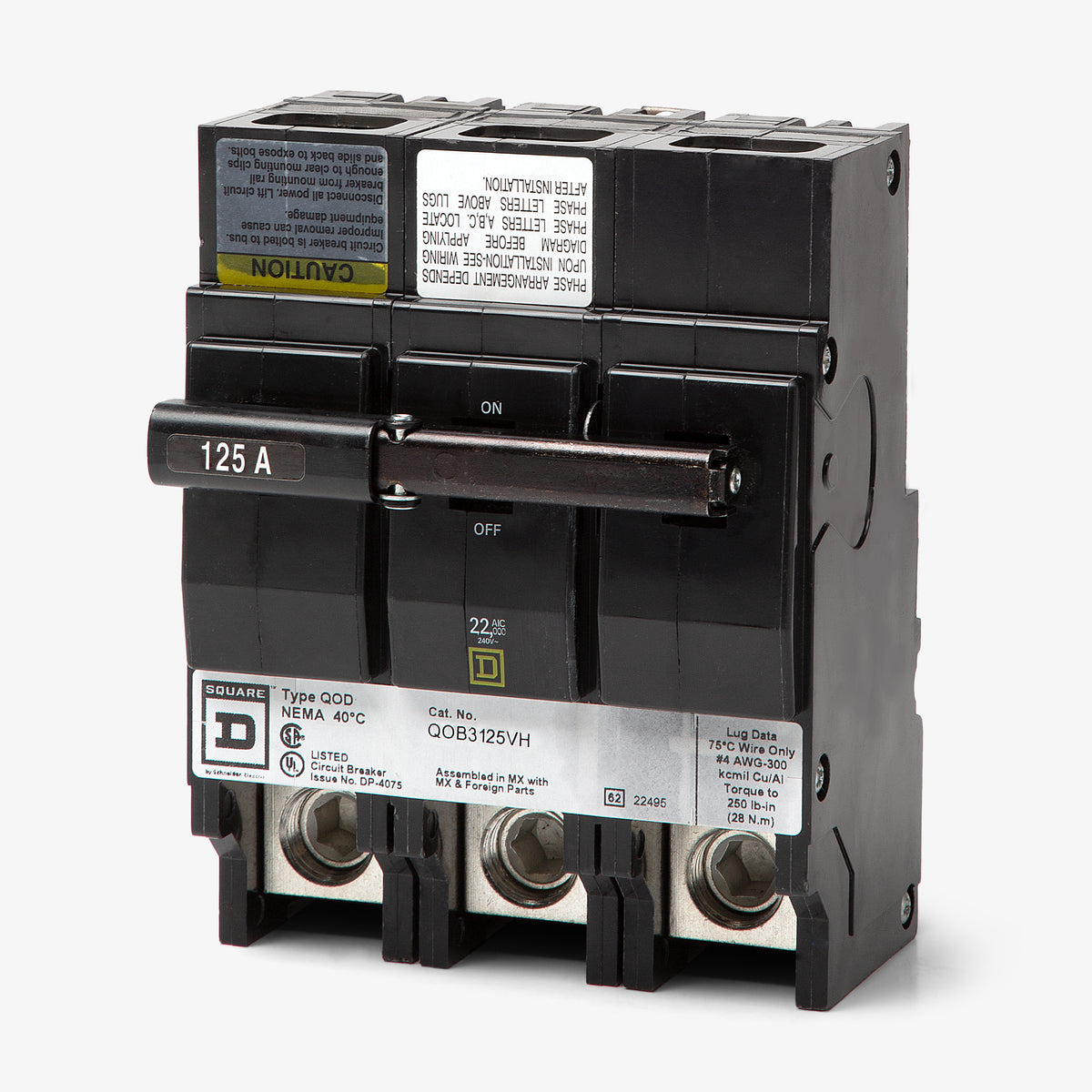

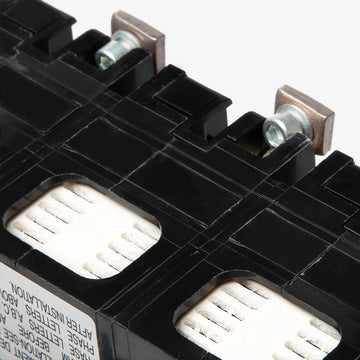

Square D QOB3125VH Miniature Circuit Breaker
- 125A
- 3 Pole
- Bolt-On
Square D
QOB3125VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB3125VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB3125VH - 125A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB3125VH - 125A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB3125VH |
| Series | QOB |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|

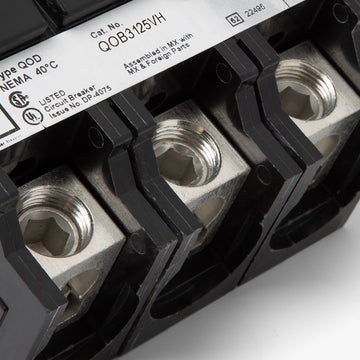

| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Quantity
Square D QOB3125VH - 125A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB3125VH-R |
| Series | QOB |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Similar Items
90A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
70A 3 Pole Miniature Circuit Breaker
Description
Part of the QO family, the Square D QOB3125VH is a thermal-magnetic miniature circuit breaker built for commercial and industrial electrical systems. It delivers reliable overcurrent protection for heavy-duty branch circuits. This 125-amp breaker installs securely into Square D NQ and NQOD panelboards using a bolt-on mounting style. It requires six panel spaces and accepts 4 AWG to 300 kcmil wiring. Rated for 22 kAIC at 120/240V, it features a Visi-Trip indicator for quick fault detection.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB3125VH |
| Series | QOB |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Frame Type | QOB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, RoHS, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the QOB3125VH circuit breaker?
This bolt-on miniature circuit breaker is designed specifically for use in Square D NQ and NQOD panelboards. It cannot be installed in standard QO load centers, which require plug-on breakers.
What does the VH suffix indicate on the QOB3125VH?
The VH suffix denotes a very high interrupting rating. This specific breaker provides a 22kAIC rating at 120/240VAC, which is an upgrade from the standard 10kAIC rating found on QOB breakers without the suffix.
How many panel spaces are required to install the QOB3125VH?
The 125-amp QOB3125VH requires six panel spaces in an NQ or NQOD panelboard. According to manufacturer specifications, its physical footprint restricts any breaker mounted directly opposite to a maximum of 40 amps.
Is the QOB3125VH rated for use with aluminum wire?
Yes, the factory-installed box lugs are dual-rated for both aluminum and copper conductors. Always ensure you apply the appropriate oxide inhibitor when terminating aluminum wiring to prevent corrosion.
Are QO3125VH and QOB3125VH breakers interchangeable?
No. Although they share identical amperage, voltage, and interrupting ratings, their mounting mechanisms differ. The QO3125VH is a plug-on breaker for residential load centers, while the QOB3125VH is a bolt-on breaker for commercial NQ and NQOD panelboards.
Does the QOB3125VH feature a Visi-Trip indicator?
Yes, this breaker includes Square D Visi-Trip technology. When the breaker trips due to an overload or short circuit, a highly visible red indicator appears to help you quickly locate the faulted circuit.
