Square D QOB370VH Miniature Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Square D
QOB370VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOB370VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

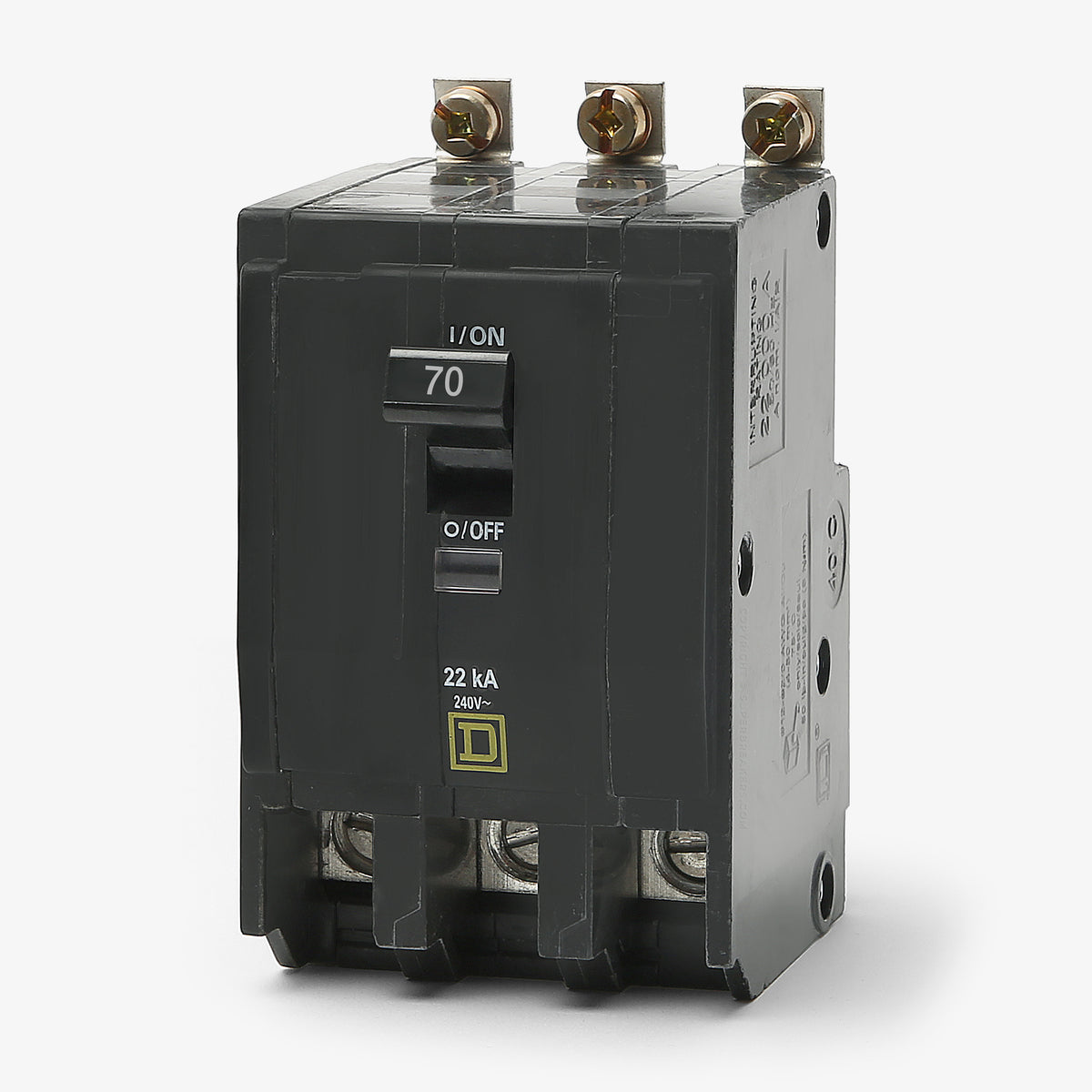

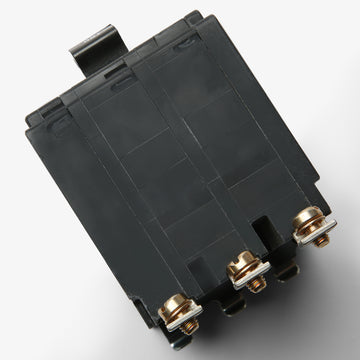

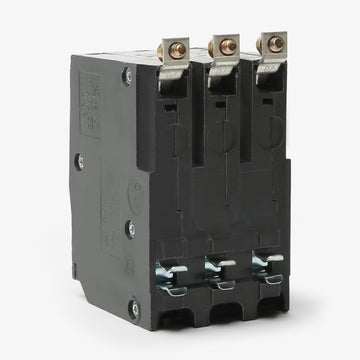

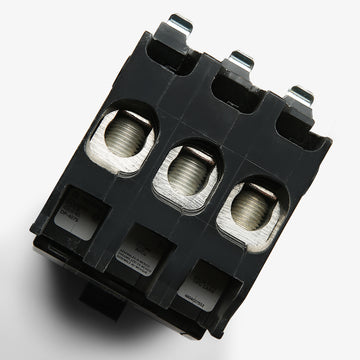

Square D QOB370VH - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
Description
Mounts into Square D NQ and NQOD panelboards to provide reliable branch circuit protection for commercial systems. This 70A, three-pole miniature breaker features a bolt-on design that ensures a secure, vibration-resistant connection to the busbar. Rated at 22 kAIC at 120/240VAC, the QOB370VH utilizes thermal-magnetic trip technology for precise overload and short-circuit response. It includes the signature Visi-Trip indicator, which displays a red flag when tripped to reduce downtime.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB370VH |
| Series | QOB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 22kA @ 120VAC, 22kA @ 240VAC, 22kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, High Interrupting Capacity |
Product FAQs
6 answersCan I install the QOB370VH in a standard QO load center?
No. The QOB370VH is a bolt-on circuit breaker designed specifically for NQ and NQOD panelboards. Standard QO load centers require plug-on breakers.
What is the plug-on equivalent to the QOB370VH?
The QO370VH is the plug-on equivalent of this breaker, designed for use in standard QO load centers.
What does the "VH" suffix indicate on the QOB370VH?
The "VH" suffix indicates a high interrupting rating of 22 kAIC at 120/240VAC. Standard QOB breakers without this suffix typically have a 10 kAIC rating.
How many panel spaces does the QOB370VH require?
This 3-pole breaker requires three standard 3/4-inch spaces in a panelboard, taking up a total width of 2.25 inches.
Does the QOB370VH provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic circuit breaker. It does not include Ground Fault Circuit Interrupter (GFCI) or Arc Fault Circuit Interrupter (AFCI) features.
Can the QOB370VH be used on a 480V system?
No. The QOB370VH is rated for a maximum of 240V and is designed for NQ or NQOD panelboards. For 480Y/277V applications, you would need an E-frame breaker like the EDB34070, which installs in Square D NF panelboards.
