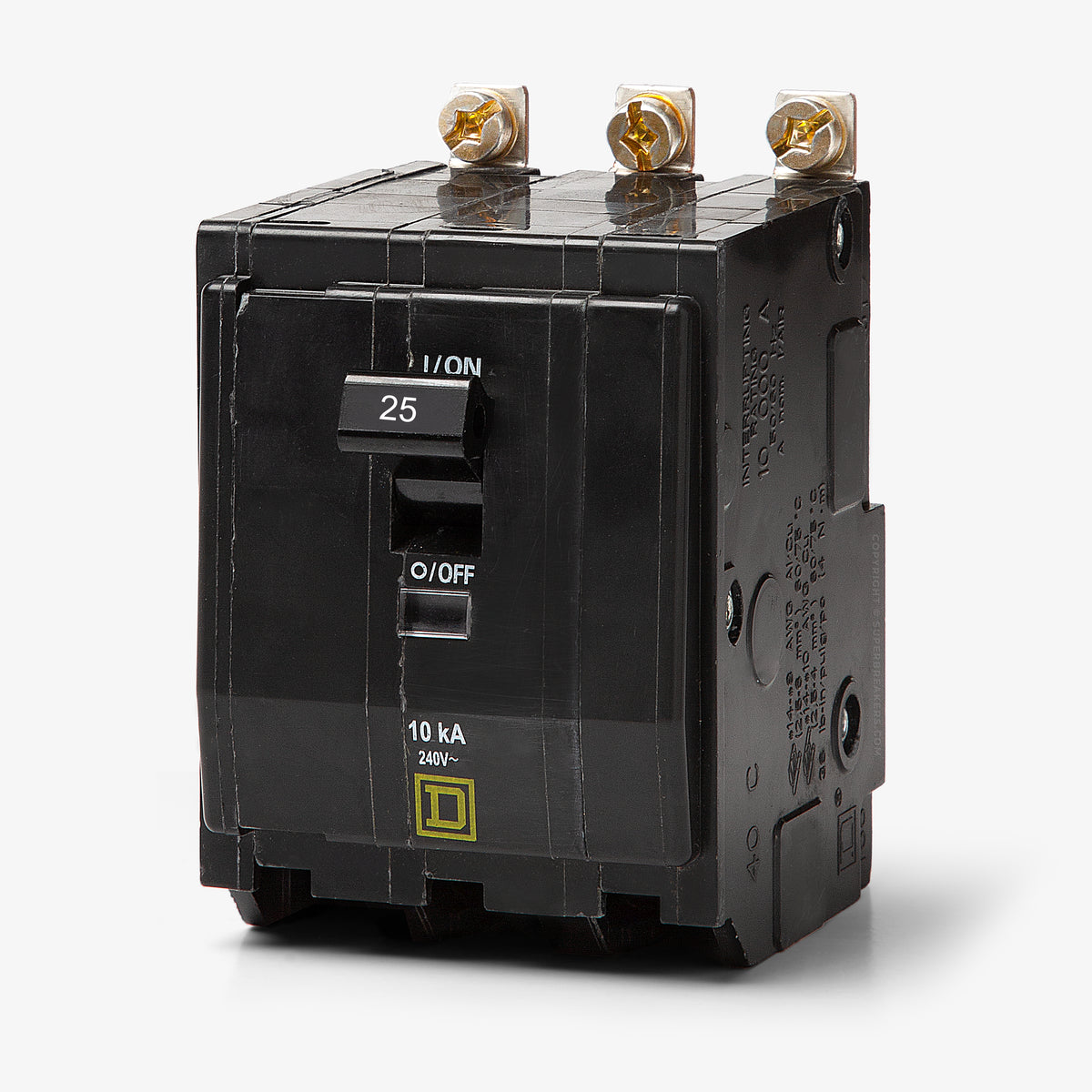

Square D QOB325 Miniature Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Square D
QOB325
Miniature Circuit Breaker
Brand
Square D
SKU
QOB325
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOB325 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOB325 - 25A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB325 |
| Series | QOB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | UL 489, CSA C22.2 No. 5, HACR, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Sold out
Quantity
Square D QOB325 - 25A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB325-R |
| Series | QOB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | UL 489, CSA C22.2 No. 5, HACR, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Similar Items
30A 3 Pole Miniature Circuit Breaker
30A 3 Pole Miniature Circuit Breaker
QOB3301021 - 30A 3 Pole Miniature Circuit Breaker
Description
Part of the QO family, the Square D QOB325 is a three-pole, 25-amp miniature circuit breaker designed for reliable commercial and industrial power distribution. It provides thermal-magnetic overcurrent protection with a 10kAIC rating at 240VAC. This unit bolts securely into Square D NQ and NQOD panelboards, ensuring a stable connection. It accepts 14-8 AWG copper or aluminum wiring and is HACR rated for HVAC applications.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB325 |
| Series | QOB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC, 48VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Pressure Plate |
|---|---|
| For Use With | Square D NQ Panelboards, Square D NQOD Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Visi-Trip Indicator |
| Standards | UL 489, CSA C22.2 No. 5, HACR, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
7 answersCan I install this QOB325 circuit breaker in a standard QO load center?
No. The QOB325 features a bolt-on mounting style designed specifically for NQ and NQOD panelboards. If you need a plug-on equivalent for a standard residential or commercial QO load center, you will need the QO325 catalog number.
Will the QOB325 fit older generation NQOD panelboards?
Yes, this breaker is fully compatible with legacy Square D NQOD panelboards, as well as current generation NQ series panelboards.
Is there a version of this 25A bolt-on breaker with a higher interrupting rating?
Yes. If your electrical system requires a higher fault current rating than the standard 10kAIC, you can use the QOB325VH, which provides a 22kA interrupt rating at 240VAC.
Is this 3-pole miniature circuit breaker approved for HVAC equipment?
Yes. The QOB325 is HACR rated, meaning it is safety certified for use with heating, air conditioning, and refrigeration equipment.
How does the Visi-Trip indicator function on this Square D breaker?
The built-in Visi-Trip indicator displays a highly visible red flag in the window when the breaker trips. This feature allows electricians and maintenance personnel to quickly identify a faulted circuit in a crowded panelboard, easily distinguishing it from breakers that are manually switched off.

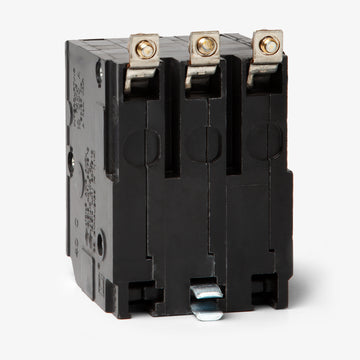

Why choose a bolt-on breaker over a plug-on design?
Bolt-on breakers secure directly to the panelboard busbar using a mechanical fastener. This creates a highly robust, vibration-resistant electrical connection, making it the preferred mounting style for demanding commercial and industrial applications.

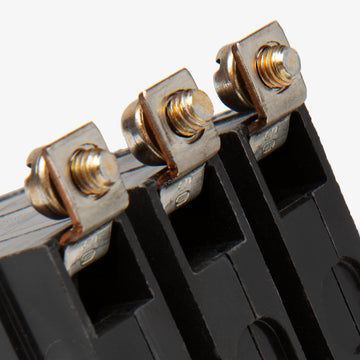

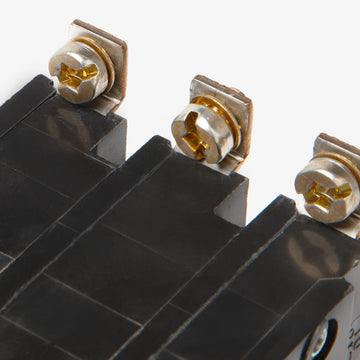

How does the integrated pressure plate terminal protect the wiring?
The pressure plate terminal is designed to compress evenly across the exposed conductor. This provides a strong, secure termination while preventing the terminal screw from cutting into or damaging the individual strands of flexible wiring.
