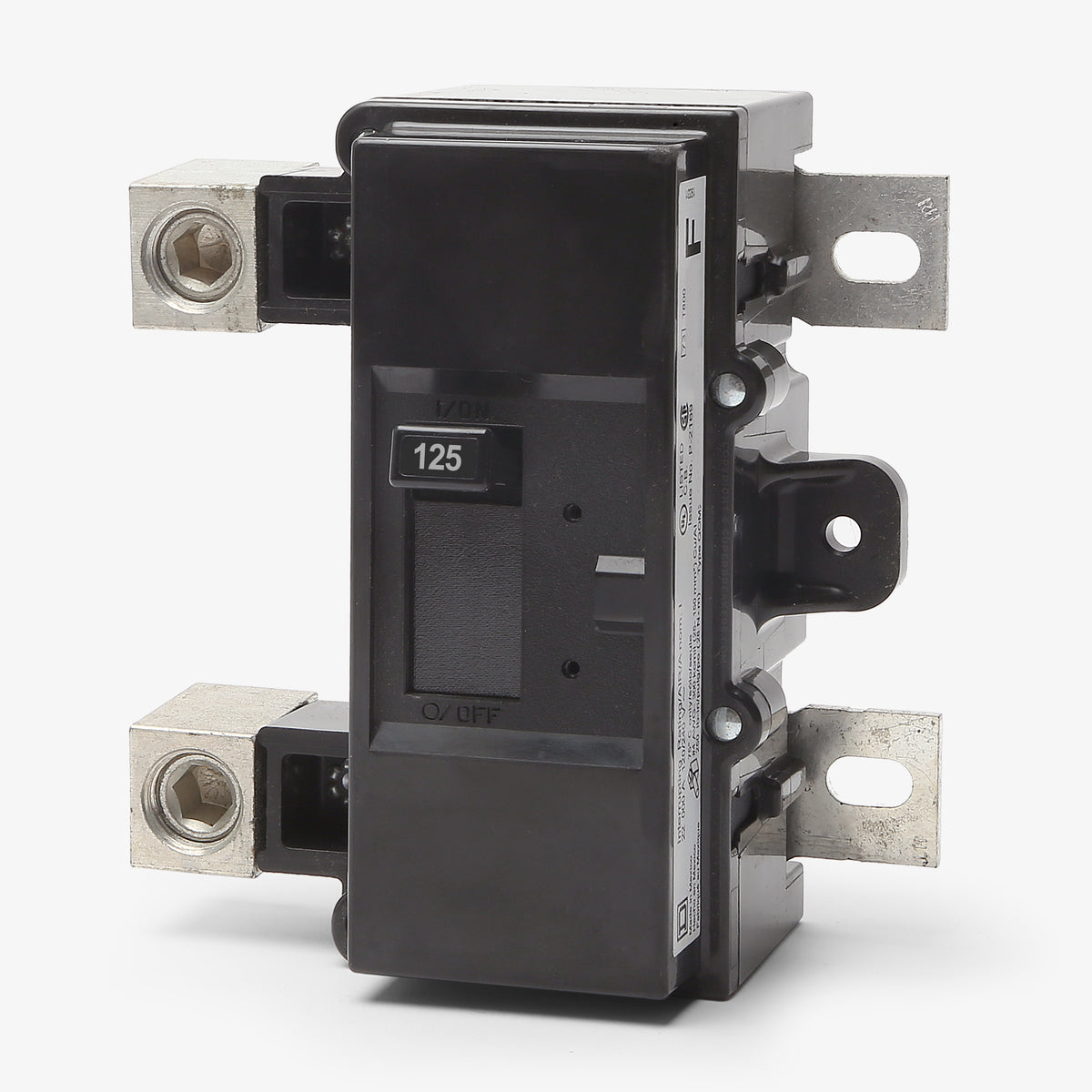

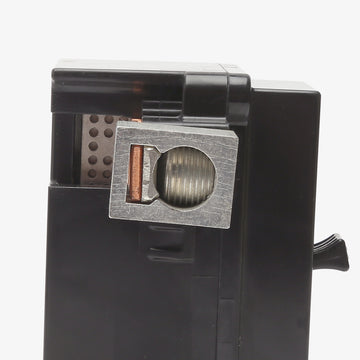

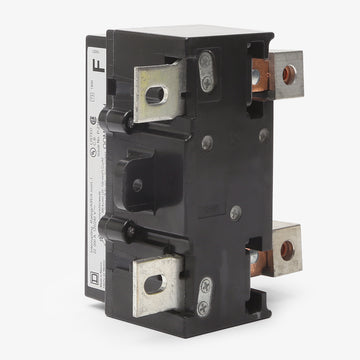

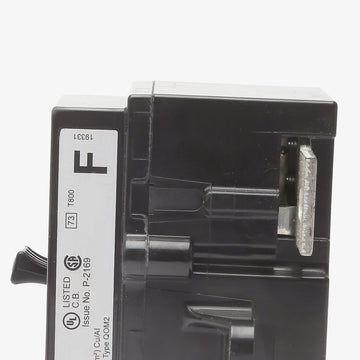

Square D QOM2125VH Miniature Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Square D
QOM2125VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOM2125VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOM2125VH - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOM2125VH - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM2125VH |
| Series | QOM |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers (QOM2 Frame) |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker |
Quantity
Square D QOM2125VH - 125A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM2125VH-R |
| Series | QOM |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers (QOM2 Frame) |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker |
Similar Items
150A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Engineered for reliable primary circuit protection, the Square D QOM2125VH is a 125-amp, 2-pole main breaker designed for residential and commercial applications. It installs into QO and Homeline load centers that accept QOM2 frame sizes, providing a secure bolt-on connection for optimal power distribution. This thermal-magnetic breaker features a 22kAIC rating at 120/240VAC and includes the signature Visi-Trip indicator, allowing users to quickly identify a tripped circuit at a glance.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOM2125VH |
| Series | QOM |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers (QOM2 Frame) |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker |
Product FAQs
9 answersCan I install this 125A main breaker in a 150A, 200A, or 225A Square D panel?
Yes. The QOM2125VH fits QOM2 frame load centers and CSEDs, which are typically rated from 150A to 225A. It serves as a field installable replacement or downsize option for panels that accept QOM2 mains.
Does the QOM2125VH work in both QO and Homeline panels?
Yes, this main circuit breaker is cross compatible with both Square D QO and Homeline load centers, provided the panel is designed to accept a QOM2 frame main breaker.
Can this breaker replace a main breaker in a QOM1 frame panel?
No. The QOM2125VH is exclusively for QOM2 frame load centers. QOM1 frame panels require a different physical breaker and cannot accommodate the larger QOM2 footprint.
What does the VH suffix mean in the QOM2125VH catalog number?
The VH suffix indicates a high interrupting rating of 22,000 AIC (22kA) at 120/240V. Standard QOM2 main breakers without the VH suffix are typically rated for 10kAIC.
What does the LI trip function on this breaker indicate?
LI stands for Long Time and Instantaneous trip functions. The Long Time function protects against sustained overloads, while the Instantaneous function trips the breaker immediately during a severe short circuit.
What is the recommended tightening torque for the wire terminals on the QOM2125VH?
According to Square D specifications, the main wire lugs should be torqued to 250 lb-in (28 N.m) when using 4 AWG to 300 kcmil aluminum or copper wire.
How is the QOM2125VH mounted into the load center?
This is a bolt-on main breaker. It secures directly to the panel bus with retaining nuts or bolts, providing a permanent and secure connection designed specifically for main service feeds.
Do I need a retaining kit when using this as a main breaker?
No. Because the QOM2 frame bolts directly to the internal bus bar of the load center, it does not require a separate backfed retaining clip like plug-on branch breakers do when used as mains.
Does this breaker provide arc fault or ground fault protection?
No, the QOM2125VH is a standard thermal magnetic main breaker. It provides overload and short circuit protection but does not include AFCI or GFCI circuitry.
