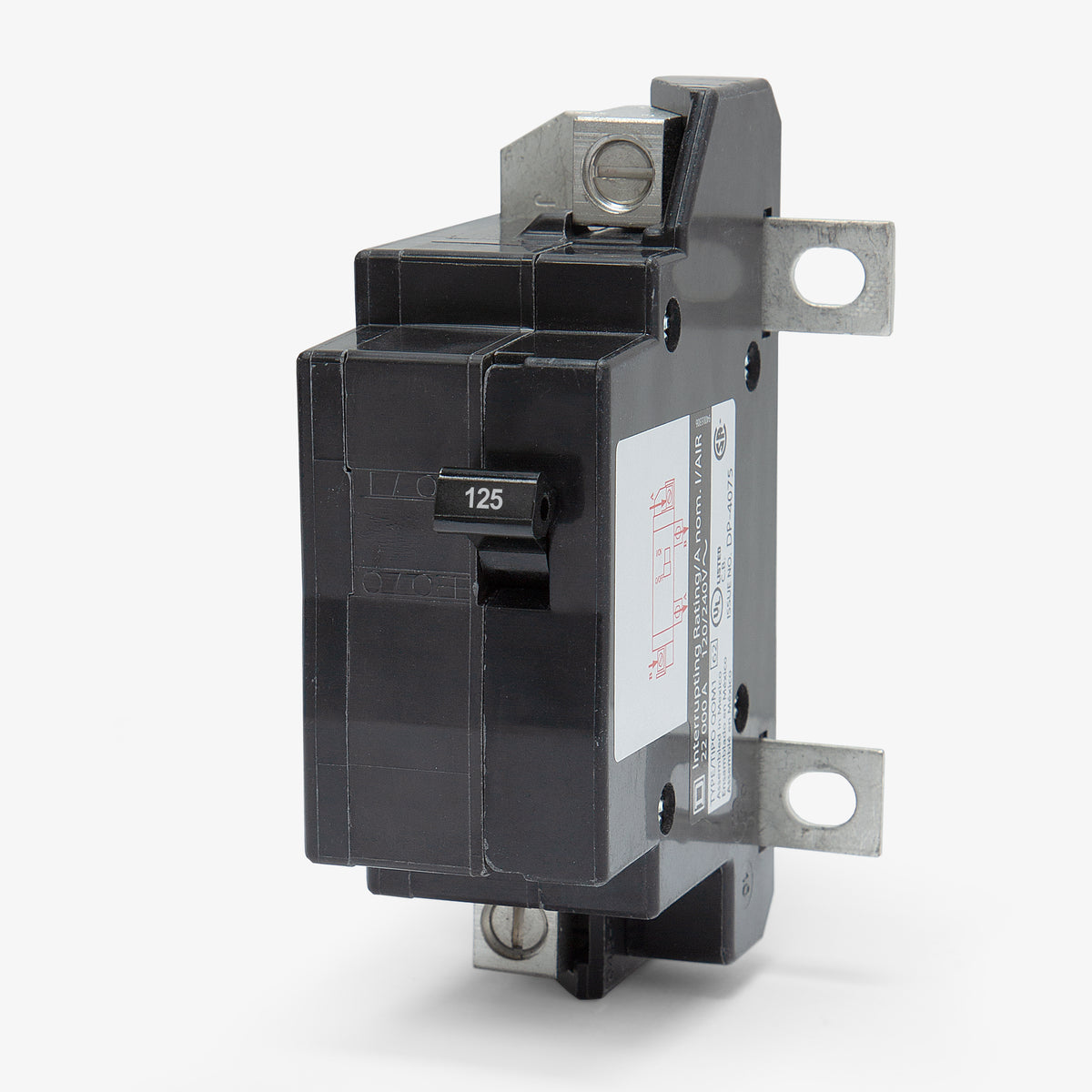

Square D QOM125VH Miniature Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Square D
QOM125VH
Miniature Circuit Breaker
Brand
Square D
SKU
QOM125VH
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QOM125VH - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D QOM125VH - 125A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM125VH |
| Series | QOM |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers (QOM1 Frame) |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker |
Sold out
Quantity
Square D QOM125VH - 125A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOM125VH-R |
| Series | QOM |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers (QOM1 Frame) |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker |
Similar Items
150A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Providing 125 amps of main service capacity, the Square D QOM125VH is a two-pole breaker designed for residential applications. It utilizes fixed thermal and magnetic elements to deliver dependable protection. This main disconnect bolts securely into QO and Homeline load centers requiring a QOM1 frame size. The box lug terminals accommodate wire sizes from 4 to 2/0 AWG. Capable of interrupting 22kA at 120/240V, it ensures robust fault management and includes the Visi-Trip red indicator flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | QOM125VH |
| Series | QOM |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QO |
|---|---|

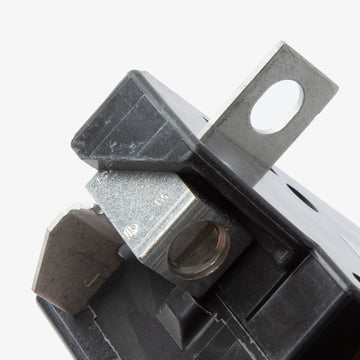

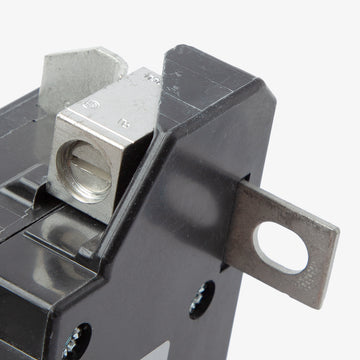

| Terminal Type | Box Lugs |
| For Use With | QO Load Centers, Homeline Load Centers (QOM1 Frame) |
| Wire Gauge | 4 AWG - 2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator, HACR Rated, Main Breaker |
Product FAQs
6 answersCan I use the QOM125VH in both QO and Homeline load centers?
Yes, this main breaker is compatible with both Square D QO and Homeline load centers that are designed to accept a QOM1 frame main breaker.
What is the difference between QOM1 and QOM2 frame main breakers?
The QOM1 frame is physically smaller and supports 50A to 125A ratings, while the QOM2 frame is larger and supports 100A to 225A ratings. They are not interchangeable, so you must verify which frame size your panel requires.
What does the VH stand for in the QOM125VH catalog number?
The VH suffix indicates a higher interrupting rating of 22,000 AIC at 120/240VAC. The standard QOM125 without the VH suffix has a 10,000 AIC rating.
What is the recommended tightening torque for the lugs on the QOM125VH?
The factory recommended tightening torque for the box lugs is 53.1 lb-in when terminating aluminum or copper conductors within the accepted 4 AWG to 2/0 AWG range.
How does this main breaker mount inside the load center?
The QOM125VH features a bolt-on connection. It secures directly to the load center bus using a captive interior mounting screw, which allows for straight-in wiring from the service entrance.
Can the QOM125VH be used as a back-fed main breaker?
No. QOM1 frame breakers are dedicated main breakers designed to bolt directly to the main bus area of the load center. They cannot be installed on the branch circuit bus as a back-fed main.
