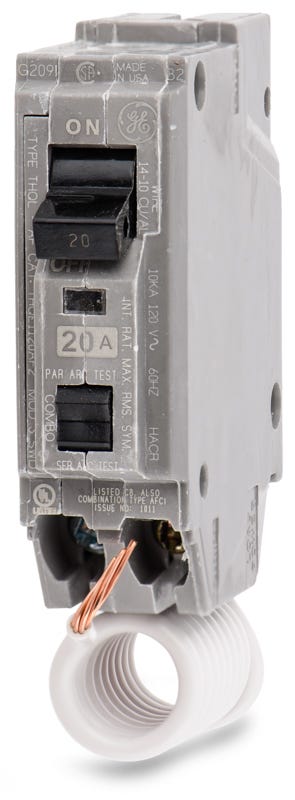

ABB / General Electric THQL1120AFP2 AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1120AFP2
AFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1120AFP2
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL1120AFP2 - 20A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL1120AF2
20A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1115AF
15A AFCI Miniature Circuit Breaker
ABB / General ElectricTHQL1115AF2
15A AFCI Miniature Circuit Breaker
Description
Engineered for modern residential safety, the THQL1120AFP2 is a 1-pole, 20A combination arc-fault circuit interrupter from GE's Q-Line family. It features a standard pigtail neutral and a built-in self-test mechanism. This plug-on unit fits seamlessly into GE PowerMark Gold and ABB ReliaHome load centers, serving as the predecessor to the THQL1120AFP2A. Delivering 10kAIC at 120/240V, it identifies both parallel and series arcing conditions while providing thermal-magnetic overcurrent defense.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1120AFP2 |
| Series | THQL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Combination Arc Fault, HACR Rated, SWD Rated, Self-Test, Quick-Make/Quick-Break |
Product FAQs
5 answersWhich load centers are compatible with the THQL1120AFP2?
This 1-inch plug-on breaker is designed exclusively for GE PowerMark Gold and ABB ReliaHome load centers. It is not interchangeable with other panel brands.
Does this breaker use a plug-on neutral or a pigtail neutral?
The THQL1120AFP2 features a standard pigtail neutral. The attached white wire must be routed and secured to the panel's neutral bus bar for the AFCI circuitry to operate correctly.
What does "Combination Arc Fault" mean for the THQL1120AFP2?
As a Combination AFCI (CAFCI), this breaker detects both parallel arcs (line-to-line, line-to-neutral, or line-to-ground) and series arcs (loose connections or broken wires in series with the load), providing comprehensive fire hazard mitigation.
Is there a difference between the THQL1120AFP2 and the THQL1120AF2?
Both catalog numbers represent the exact same 20A combination AFCI breaker with a pigtail neutral. The "P" in THQL1120AFP2 simply denotes retail blister packaging, while THQL1120AF2 indicates standard wholesale box packaging.
How should the AFCI function be tested after wiring is complete?
Energize the circuit and press the test button located on the face of the breaker. The breaker must trip immediately to confirm the internal arc fault detection is functioning properly.
