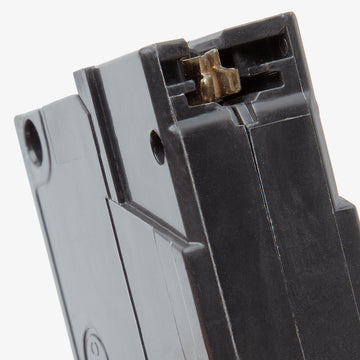

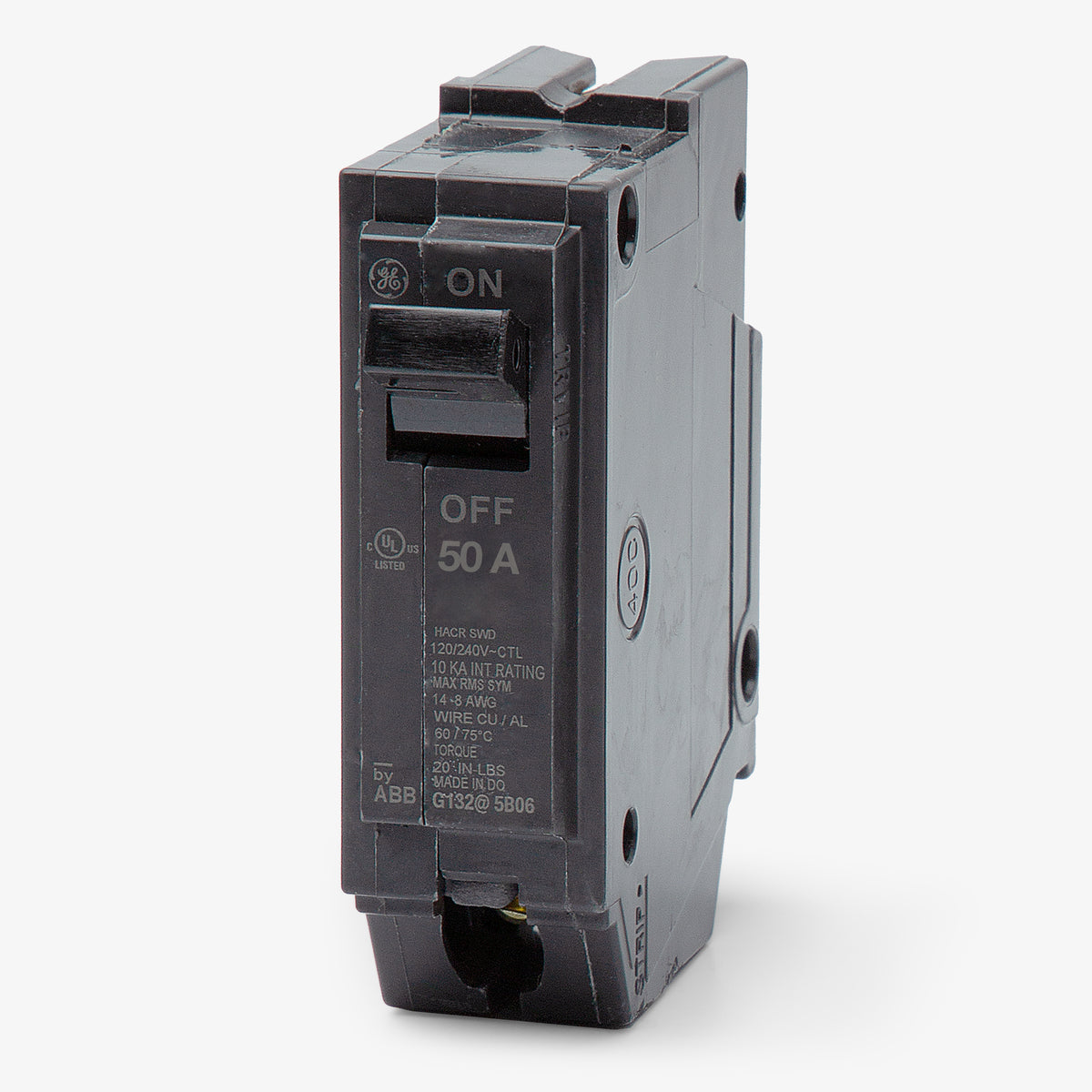

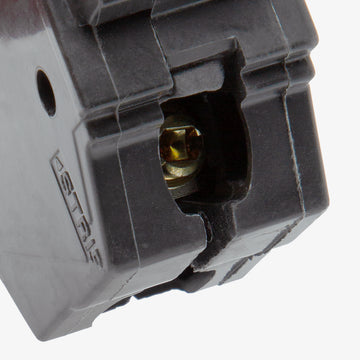

ABB / General Electric THQL1150 Molded Case Circuit Breaker
- 50A
- 1 Pole
- Plug-On
ABB / General Electric
THQL1150
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
THQL1150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL1150 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL1150 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1150 |
| Series | THQL |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | Federal Specification WC-375B, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break |
Quantity
ABB / General Electric THQL1150 - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1150-R |
| Series | THQL |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | Federal Specification WC-375B, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQC1150WL
50A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTHHQB1150
50A 1 Pole Molded Case Circuit Breaker
Description
Designed to safeguard standard 120/240VAC branch circuits, this 50-amp Q-Line breaker utilizes fixed thermal-magnetic trip technology. The one-inch plug-on format mounts easily into GE PowerMark Gold load centers, ABB ReliaHome enclosures, and GE A-Series panelboards. Box lug terminals provide secure connections for 8-3 AWG copper or aluminum wiring. Featuring a standard 10kAIC rating, the unit is fully HACR certified to support dedicated HVAC equipment circuits safely.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1150 |
| Series | THQL |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers, GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | Federal Specification WC-375B, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break |
Product FAQs
7 answersHow much panel space does the THQL1150 require?
The THQL1150 is a standard full size breaker that requires one 1-inch space in a compatible load center.
Are GE THQL breakers compatible with ABB ReliaHome load centers?
Yes, GE THQL Q-Line breakers are fully compatible with both legacy GE PowerMark Gold load centers and the newer ABB ReliaHome series panels.
What are the recommended lug torque specifications for the THQL1150?
The box lugs on the THQL1150 should be torqued to 40 in-lb for 8 AWG wire, 45 in-lb for 6 to 4 AWG wire, and 50 in-lb for 3 AWG wire.
Is the THQL1150 circuit breaker HACR rated?
Yes, like all modern UL 489 listed GE Q-Line breakers, the THQL1150 is HACR rated for use with heating, air conditioning, and refrigeration equipment.
Is there a difference between GE THQL and ABB THQL breakers?
No, GE Industrial Solutions was acquired by ABB. The THQL1150 is the exact same Q-Line breaker, though newer stock may feature ABB branding instead of the legacy GE logo.
Can I substitute a THQP breaker for the THQL1150?
THQP breakers are half-inch width variants and only fit in specific GE load centers with specialized bus stabs. The THQL1150 is a standard 1-inch width breaker. They are not universally interchangeable, so you must verify your panel accepts full size THQL breakers.
How does the THQL1150 indicate a tripped condition?
The breaker features a three-position handle. When a fault is detected, the handle moves to a center tripped position between ON and OFF, making it easy to identify which circuit requires attention.
