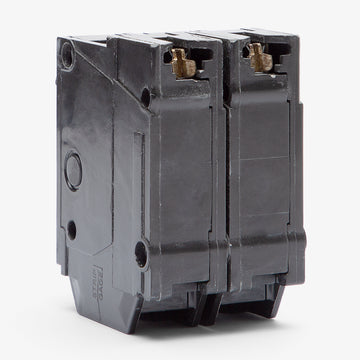

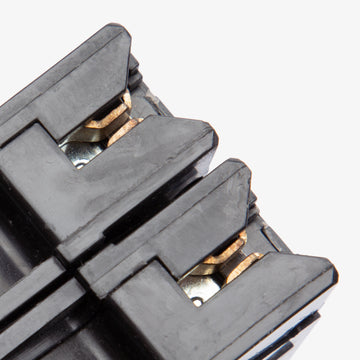

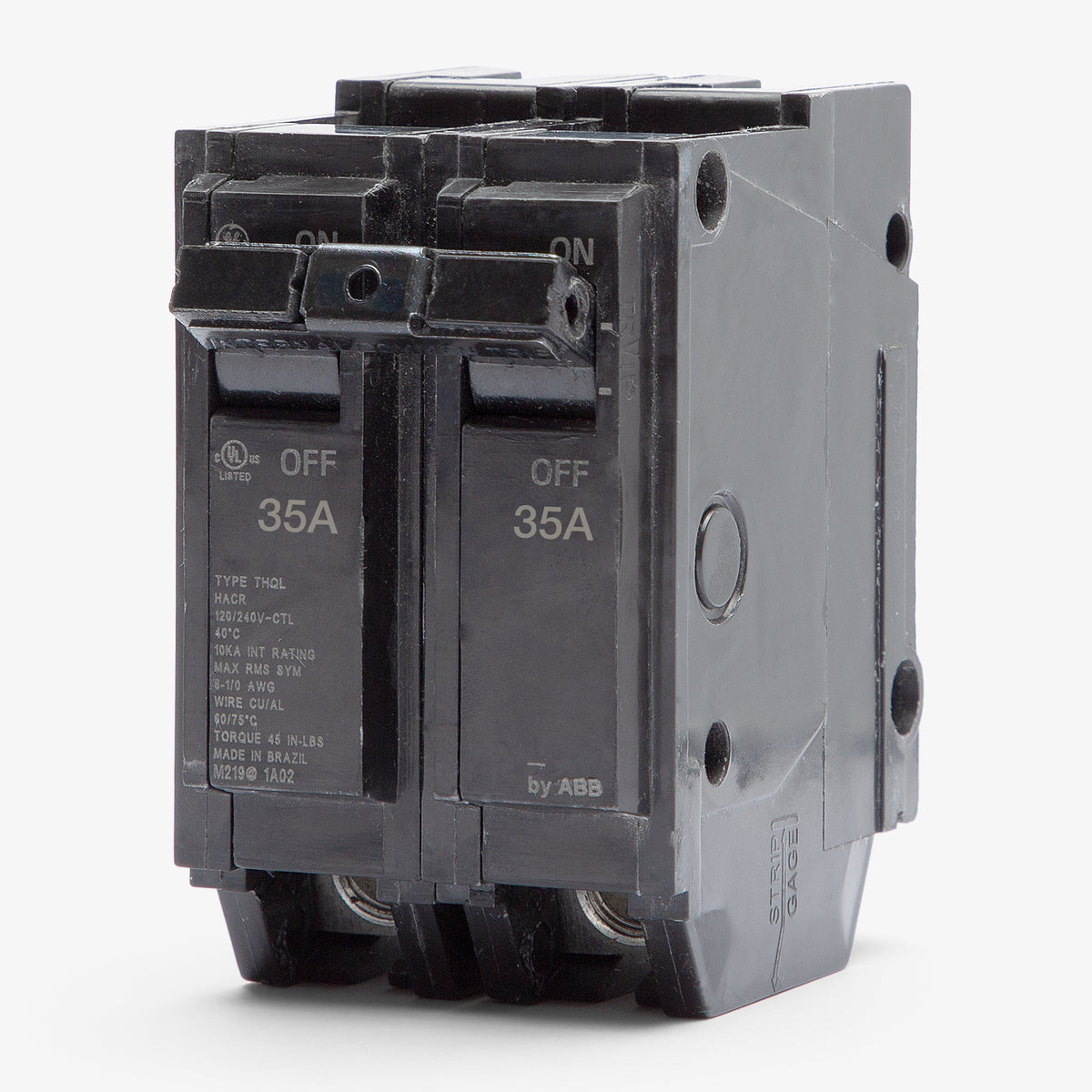

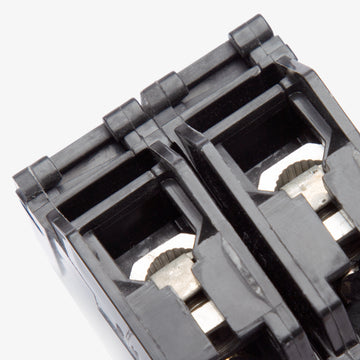

ABB / General Electric THQL2135 Miniature Circuit Breaker
- 35A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2135
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2135
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2135 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL2135 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2135 |
| Series | THQL |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL2135 - 35A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2135-R |
| Series | THQL |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL2140ST1
40A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2130
30A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2130ST1
30A 2 Pole Miniature Circuit Breaker
Description
Built for residential and commercial applications, the GE THQL2135 delivers reliable 35-amp overcurrent protection. This two-pole breaker features a standard 1-inch per pole format for safely distributing power to dedicated 240V circuits. It mounts securely into GE Q-Line and PowerMark Gold load centers, serving as a direct replacement for the CL235. Rated for 10kAIC at 120/240VAC, this thermal-magnetic breaker includes an internal common trip and is HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2135 |
| Series | THQL |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, PowerMark Gold Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat load centers are compatible with the THQL2135?
This breaker is designed for use in GE Q-Line and PowerMark Gold load centers. Always verify your specific panel label to ensure THQL frame breakers are permitted.
Is there a difference between the ABB THQL2135 and the GE THQL2135?
No. ABB acquired GE Industrial Solutions, so the THQL2135 is manufactured to the exact same specifications and dimensions under both brand names. They are fully interchangeable.
What is the Eaton equivalent for the GE THQL2135?
The Eaton CL235 is a UL-classified direct replacement for the THQL2135 and is approved for use in GE load centers that accept THQL breakers.
What is the difference between GE THQL and THQP breakers?
THQL breakers are standard full-size units that occupy 1 inch per pole. THQP breakers are half-size or twin breakers that occupy 1/2 inch per pole. The THQL2135 is a full-size 2-pole breaker requiring 2 inches of panel space.
What are the terminal torque specifications for the THQL2135?
The required torque depends on the wire gauge used. Tighten #8 AWG wire to 40 in-lb, #6 to #4 AWG to 45 in-lb, and #3 AWG to 50 in-lb.
Can the THQL2135 be used as a back-fed main breaker?
Yes, but the National Electrical Code (NEC) requires it to be secured with a main breaker retainer kit (such as the GE THQLRK1 or THQLRK2, depending on your panel size) to prevent it from being accidentally detached while energized.
