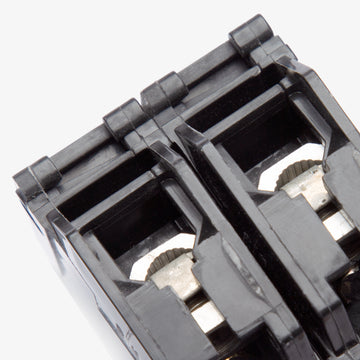

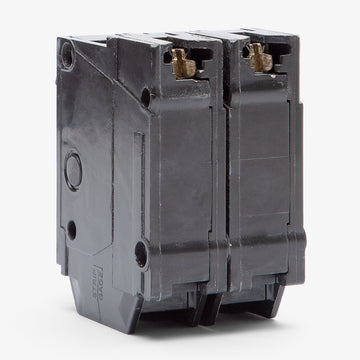

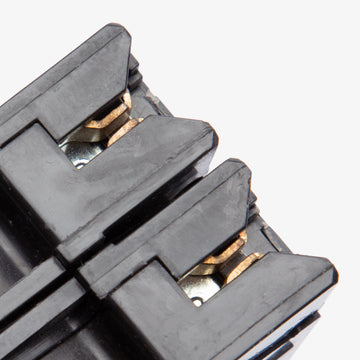

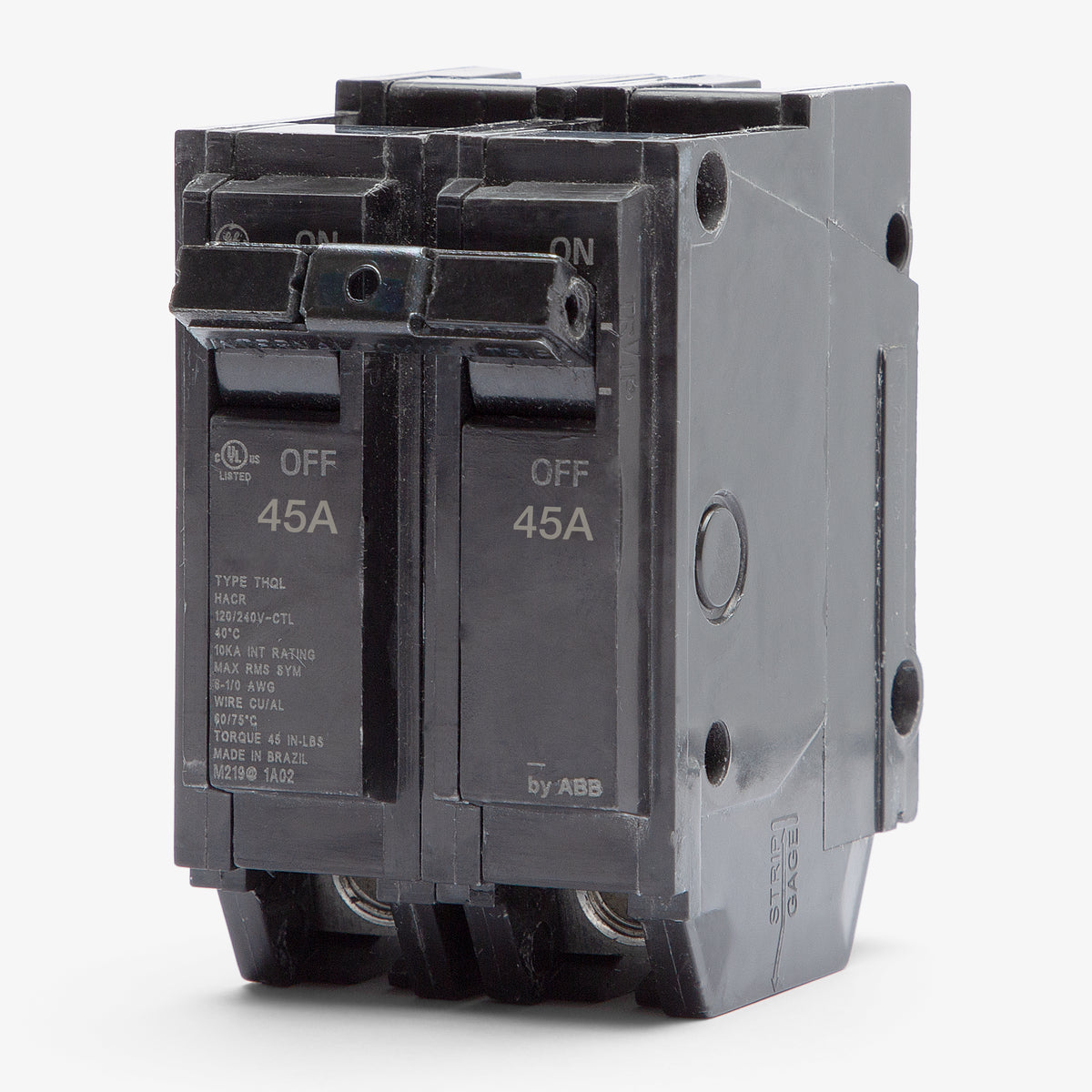

ABB / General Electric THQL2145 Miniature Circuit Breaker
- 45A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2145
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2145
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2145 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL2150ST1
50A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2140
40A 2 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL2140ST1
40A 2 Pole Miniature Circuit Breaker
Description
Built for residential and commercial applications, the THQL2145 is a 45A, 2-pole miniature circuit breaker. It delivers dependable thermal-magnetic protection for standard 120/240VAC electrical systems. This plug-on breaker mounts into GE PowerMark Gold load centers, GE A-Series panelboards, and modern ABB ReliaHome panels. It serves as a direct replacement for older installations and is transitioning to the THQL2145A model.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2145 |
| Series | THQL |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | UL 489, CSA C22.2 No. 5, NEMA AB 1 |
| Approval | CSA, HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat load centers are compatible with the THQL2145 breaker?
This breaker is designed for use in GE PowerMark Gold, GE A-Series panelboards, and ABB ReliaHome load centers that accept full-size, 1-inch plug-in Q-Line breakers.
Can I install this THQL breaker in a space designed for THQP breakers?
THQL breakers are full-size, 1-inch per pole devices. They will not fit in the half-inch slots exclusively designed for THQP breakers, though many GE panels accept both types in different positions. Verify your panel's bus layout before installation.
Can I use the THQL2145 to replace a THHQL2145?
The THQL2145 has a 10kAIC interrupting rating, while the THHQL2145 is rated for 22kAIC. You can only substitute the THQL2145 if your system's available fault current is 10kA or less.
Do I need a hold-down kit if I am back-feeding the THQL2145 as a main breaker?
Yes. When used as a back-fed main in a compatible GE PowerMark Gold load center, the National Electrical Code requires a retainer kit, such as the THQLRK1, THQLRK2, or THQLRK3, depending on your specific panel model.
Is the THQL2145 HACR rated for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires a 45-amp overcurrent protection device.
What applications typically require a 45-amp 2-pole breaker?
A 45A 240V circuit is commonly used for specific residential and commercial loads, such as large electric water heaters, electric vehicle (EV) charging stations, and dedicated HVAC compressors.
