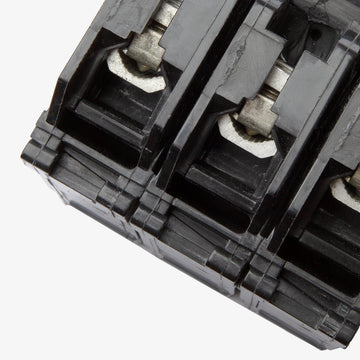

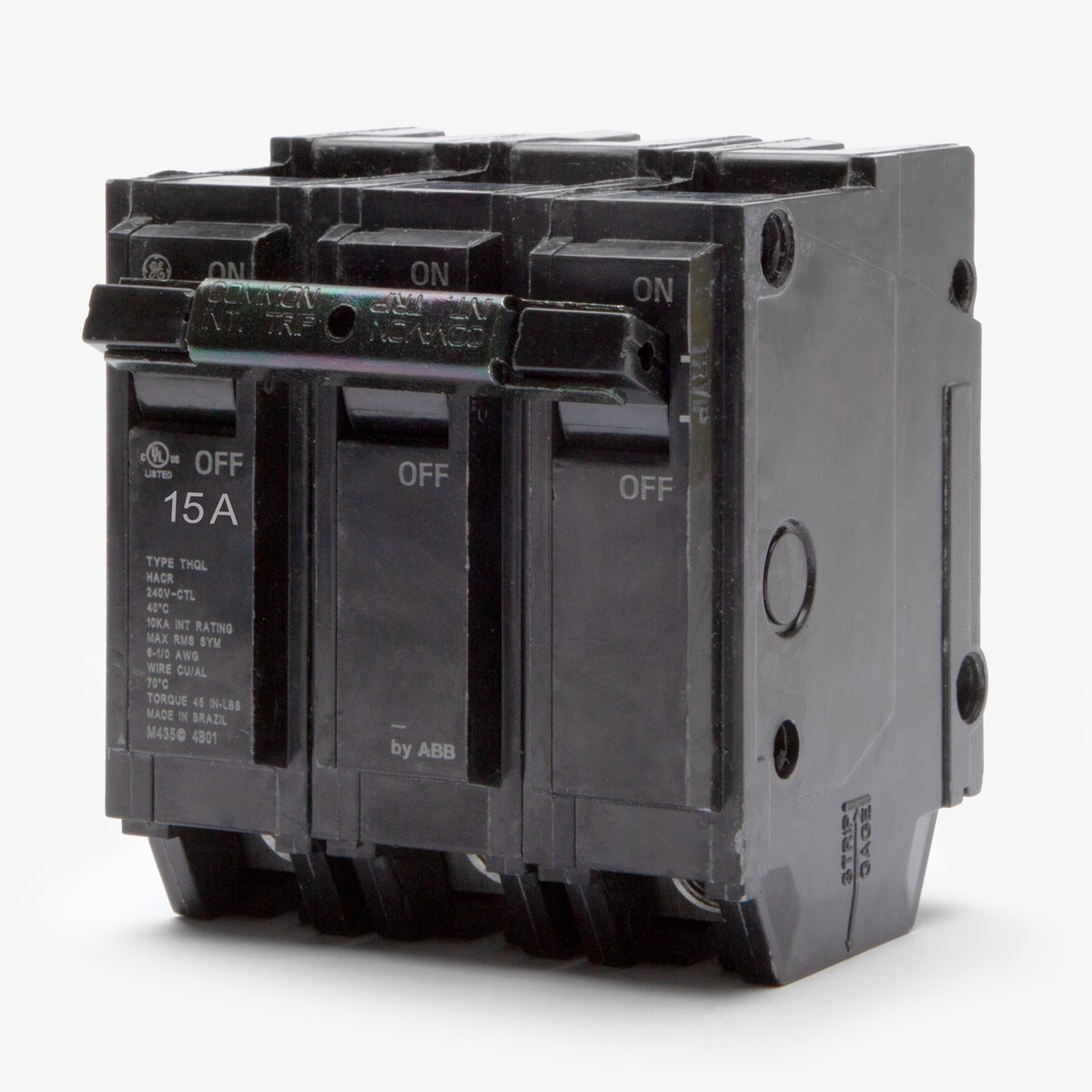

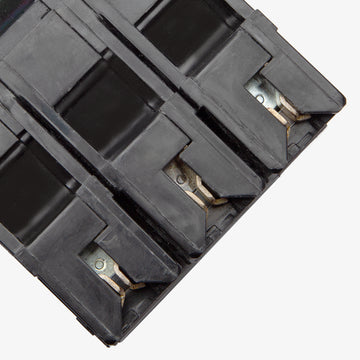

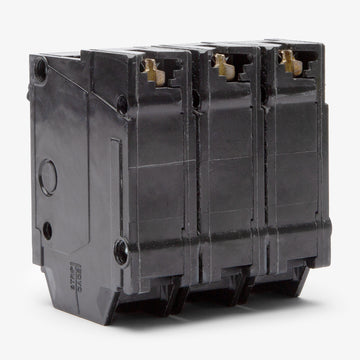

ABB / General Electric THQL32015 Miniature Circuit Breaker
- 15A
- 3 Pole
- Plug-On
ABB / General Electric
THQL32015
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL32015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL32015 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL32015 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32015 |
| Series | THQL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (3-phase), GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL32015 - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32015-R |
| Series | THQL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (3-phase), GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL32030
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32030ST1
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32035
35A 3 Pole Miniature Circuit Breaker
Description
Engineered for commercial applications, the 15A THQL32015 is a 3-pole miniature circuit breaker from GE's Q-Line series. It provides dependable thermal-magnetic protection for three-phase electrical systems. This plug-on breaker installs seamlessly into GE PowerMark Gold load centers and A-Series panelboards. The 1-inch per pole format allows for straightforward integration into compatible enclosures.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32015 |
| Series | THQL |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE PowerMark Gold Load Centers (3-phase), GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
7 answersWhich electrical panels are compatible with the THQL32015 circuit breaker?
This plug-in breaker is designed for use in 3-phase GE PowerMark Gold load centers and GE A-Series panelboards.
What wire sizes and materials are accepted by the THQL32015 box lugs?
The box lug terminals accept 14 to 8 AWG copper wire or 12 to 8 AWG aluminum wire.
What are the recommended tightening torque specifications for the THQL32015 terminals?
For 14 to 10 AWG wire, tighten the terminals to 35 in-lb. For 8 AWG wire, tighten to 40 in-lb.
Is the THQL32015 circuit breaker HACR rated?
Yes, this breaker is UL listed for HACR (Heating, Air Conditioning, and Refrigeration) applications.
Can the THQL32015 be reverse fed?
Yes, this thermal-magnetic circuit breaker is suitable for reverse feed applications.
How does the trip mechanism operate on the THQL32015?
It features fixed thermal-magnetic trip technology with Long-Time and Instantaneous (LI) trip functions. An internal common trip bar ensures all three poles disconnect simultaneously during a fault.
Is the THQL32015 manufactured by GE or ABB?
The THQL32015 was originally manufactured by General Electric. Following the acquisition of GE Industrial Solutions, this breaker is now produced by ABB while maintaining the exact same form, fit, and function for legacy GE panels.
