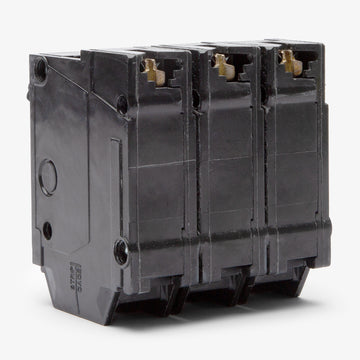

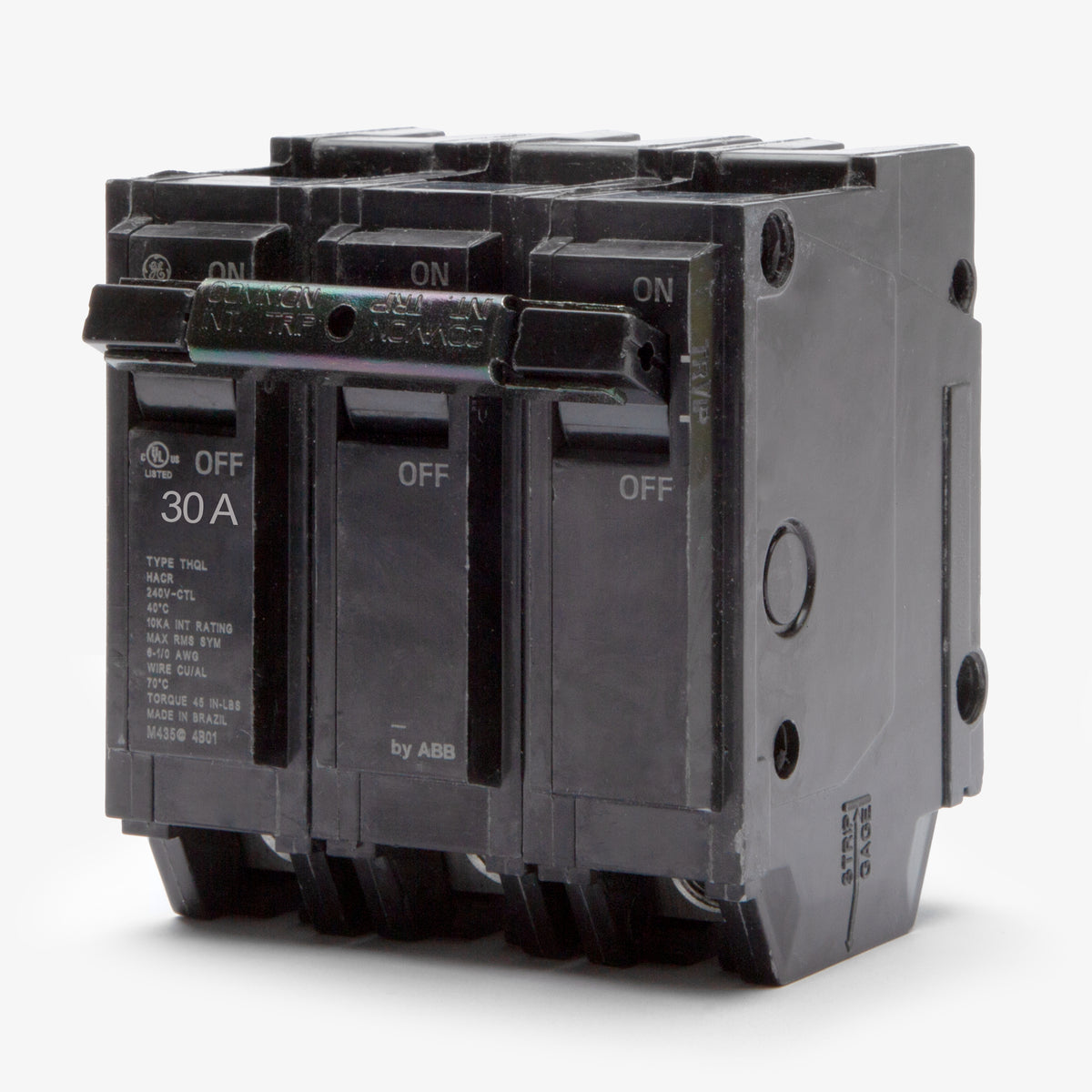

ABB / General Electric THQL32030 Miniature Circuit Breaker
- 30A
- 3 Pole
- Plug-On
ABB / General Electric
THQL32030
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL32030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL32030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL32030 - 30A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32030 |
| Series | THQL |
| Amperage | 30A |
| Poles | 3 |

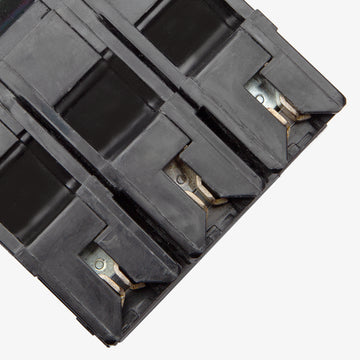

| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|

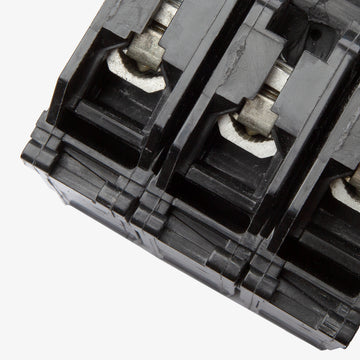

| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Sold out
Quantity
ABB / General Electric THQL32030 - 30A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32030-R |
| Series | THQL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Similar Items
ABB / General ElectricTHQL32035
35A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32025
25A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32040
40A 3 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial applications, this three-pole 30A breaker delivers standard 10kAIC protection at 240VAC. It features an internal common trip and a quick-make, quick-break mechanism to guarantee reliable operation under fault conditions. It installs into GE Q-Line load centers and compatible lighting panels. The unit accepts 14-8 AWG copper or 12-8 AWG aluminum wire via standard box lugs. HACR rated for HVAC equipment, it provides essential thermal-magnetic protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32030 |
| Series | THQL |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, Lighting Panels |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Internal Common Trip, Quick-Make/Quick-Break, Reverse Feed |
Product FAQs
6 answersWhat load centers are compatible with this 3-pole circuit breaker?
This THQL plug-in breaker is designed for use in GE and ABB PowerMark Gold Q-Line load centers, as well as compatible AL, AQ, and A-Series lighting panels that accept 3-phase, 1-inch plug-on breakers.
How many panel spaces does the THQL32030 require for installation?
It requires three standard 1-inch panel spaces. Each of the three poles occupies a 1-inch slot in a compatible three-phase load center.
Is this breaker a direct replacement for older General Electric THQL32030 models?
Yes, ABB acquired GE Industrial Solutions. This current ABB / GE THQL32030 is the exact drop-in replacement for legacy GE breakers sharing the same catalog number.
Is this breaker suitable for heating and air conditioning applications?
Yes, the THQL32030 is HACR rated, making it fully approved for use with commercial heating, air conditioning, and refrigeration equipment requiring 30A overcurrent protection.
What is the bolt-on equivalent for the THQL32030?
If your commercial distribution panel requires a bolt-on connection rather than a plug-in connection, the direct equivalent in the Q-Line series is the THQB32030.
Can I use this breaker in a standard single-phase residential load center?
No. This is a 3-pole circuit breaker designed exclusively for 240VAC three-phase systems. Standard single-phase residential load centers cannot accommodate a 3-pole breaker.
