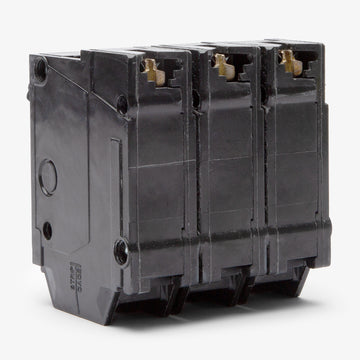

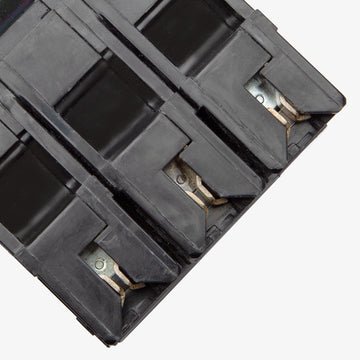

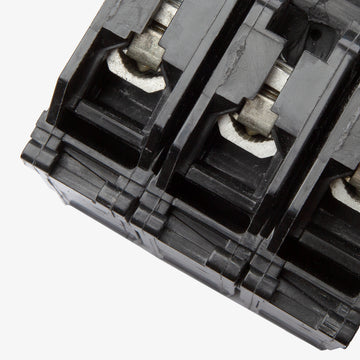

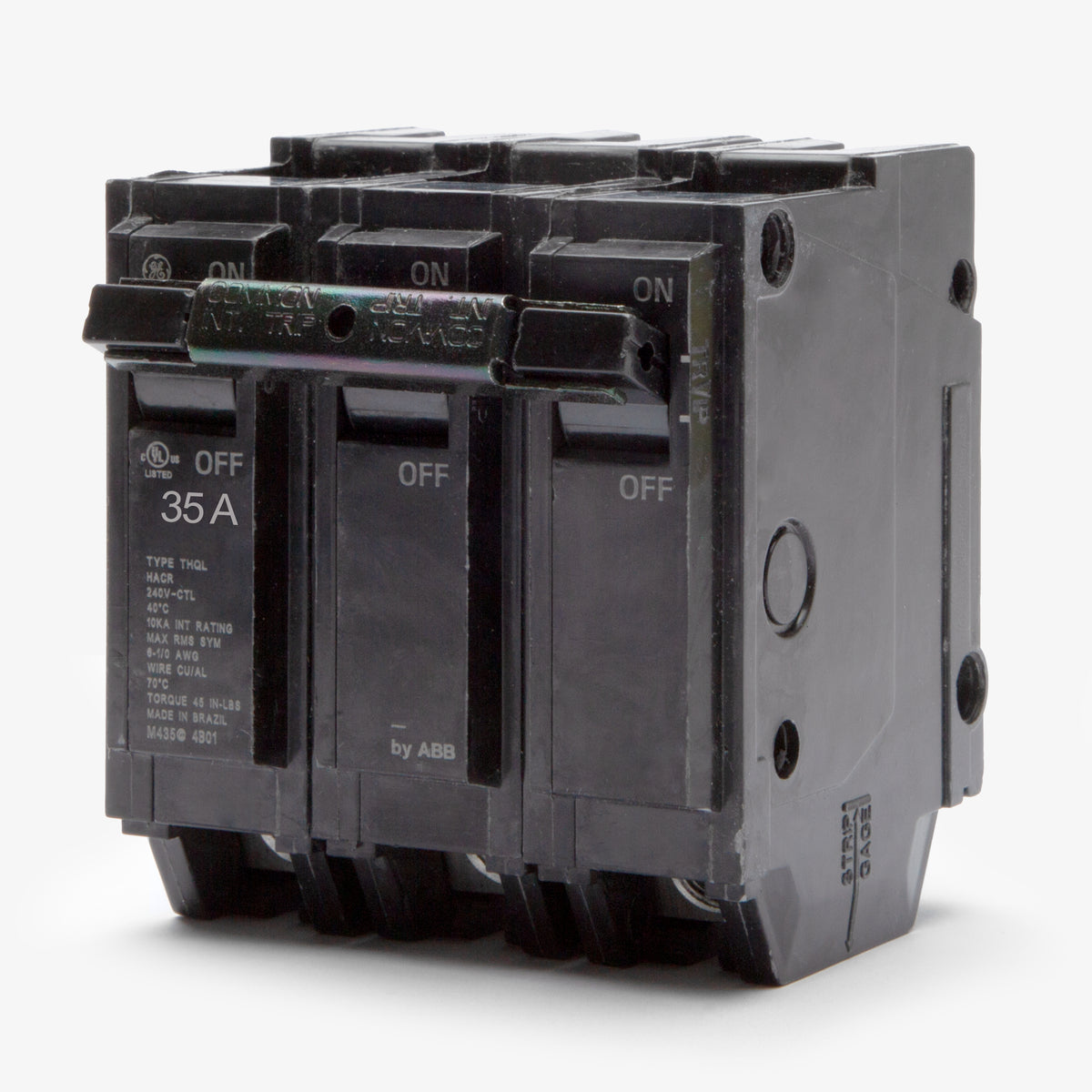

ABB / General Electric THQL32035 Miniature Circuit Breaker
- 35A
- 3 Pole
- Plug-On
ABB / General Electric
THQL32035
Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL32035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL32035 - 35A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTHQL32030
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32030ST1
30A 3 Pole Miniature Circuit Breaker
ABB / General ElectricTHQL32045
45A 3 Pole Miniature Circuit Breaker
Description
Part of the Q-Line family, this 35A, 3-pole miniature circuit breaker provides dependable overcurrent protection for commercial and industrial applications. This plug-on unit installs seamlessly into GE A-Series panelboards and PowerMark Gold load centers. It accepts 8-3 AWG copper or aluminum wiring via standard box lug terminals. Rated for 10kAIC at 240VAC, the breaker features an internal common trip bar and thermal-magnetic trip technology. It is fully HACR rated for HVAC equipment.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL32035 |
| Series | THQL |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE A-Series Panelboards, GE PowerMark Gold Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
5 answersWhich load centers and panelboards are compatible with the THQL32035?
This breaker is designed for use in GE PowerMark Gold load centers and GE A-Series panelboards that accept 1-inch plug-on breakers.
Why is this breaker listed as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. As a result, Q-Line breakers like the THQL32035 may arrive in packaging branded by either ABB or General Electric, but the physical product and compatibility remain identical.
How much panel space does this 3-pole breaker require?
The THQL32035 is a standard Q-Line breaker that requires three 1-inch spaces, for a total width of 3 inches in the panel.
Do I need a hold-down kit if I am back-feeding this breaker?
Yes. When used as a back-fed main breaker, the National Electrical Code (NEC) requires a compatible GE retainer kit, such as a THQLRK series hold-down kit, to secure the breaker to the bus bar and prevent accidental removal.
What does the LI trip function on this breaker indicate?
The LI designation means this thermal-magnetic breaker provides both Long-Time overload protection and Instantaneous short-circuit protection, which is standard for general branch circuit applications.
