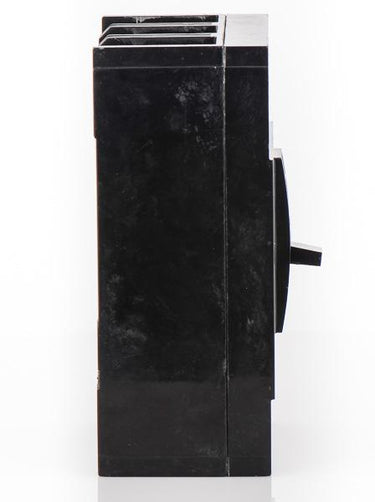

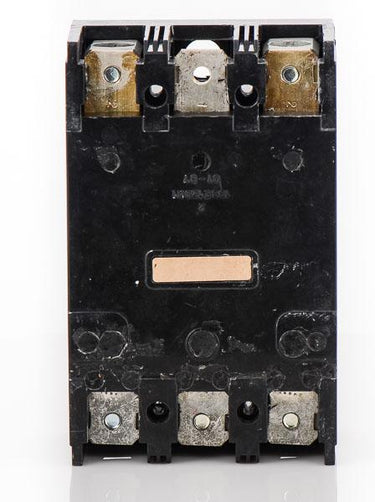

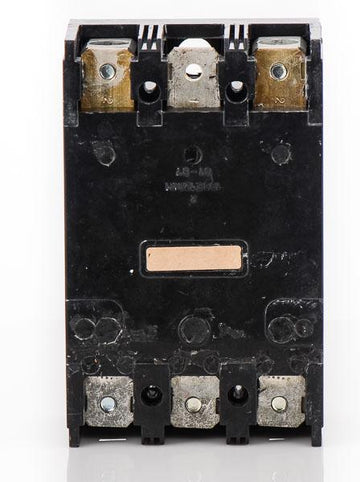

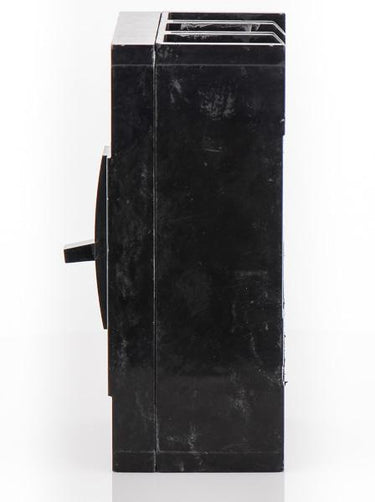

ABB / General Electric TQD32100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
ABB / General Electric
TQD32100
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32100 |
| Series | TQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TQD32100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32100-R |
| Series | TQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTQD32150
150A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD32175
175A 3 Pole Molded Case Circuit Breaker

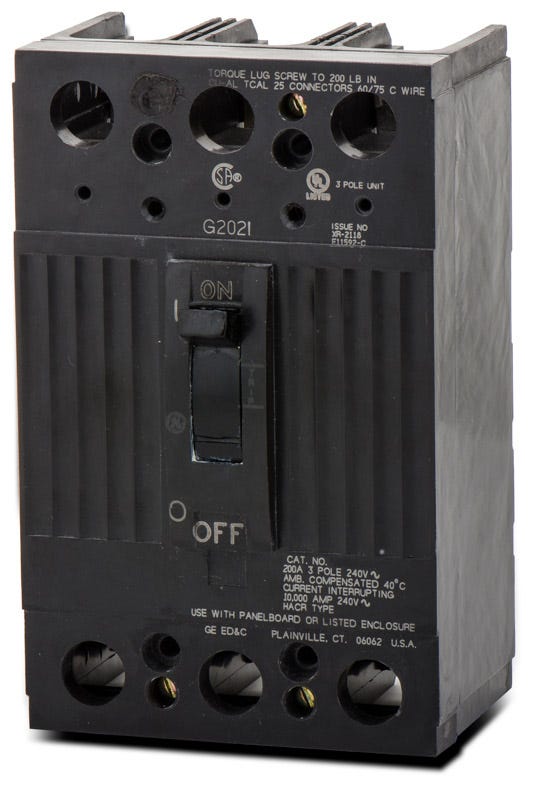

3 Pole Circuit Breaker
Description
Designed for three-phase systems, the GE TQD32100 is a 3-pole, 100A molded case circuit breaker featuring a fixed thermal-magnetic trip unit for long-time and instantaneous (LI) protection. This bolt-on breaker mounts into GE A-Series and Spectra Series panelboards. For facility upgrades, it crosses over to the ABB Formula A1 frame (requires retrofit kit). With a 10kAIC capacity at 240VAC, this Q-Line breaker includes load-side lugs, supports reverse feed, and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32100 |
| Series | TQD |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Lug Kits |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | HACR Rated, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the TQD32100 circuit breaker?
This bolt-on molded case circuit breaker is designed for direct installation into GE A-Series and Spectra Series panelboards.
Can the TQD32100 be used in reverse feed configurations?
Yes, this breaker supports reverse feed. You can safely connect the supply voltage to either the line or load terminals without compromising the trip unit function.
Is the TQD32100 rated for HVAC applications?
Yes, it is strictly HACR rated. It provides the necessary short-circuit and overload protection required for commercial heating, air conditioning, and refrigeration equipment.
Are mechanical lugs included with the TQD32100?
Yes, factory-installed mechanical lugs are provided on the load side to terminate copper or aluminum conductors. The line side connection bolts directly to the panelboard bus.
What is the current ABB replacement for the GE TQD32100?
Following ABB's acquisition of GE Industrial, this frame is crossing over to the ABB Formula A1 or Tmax XT1 series. Upgrading to these modern frames requires a specific retrofit kit to fit into existing GE panelboards.
Does the TQD32100 feature an adjustable trip unit?
No, it utilizes a fixed thermal-magnetic trip unit for standard long-time and instantaneous protection. The trip settings cannot be adjusted in the field.
