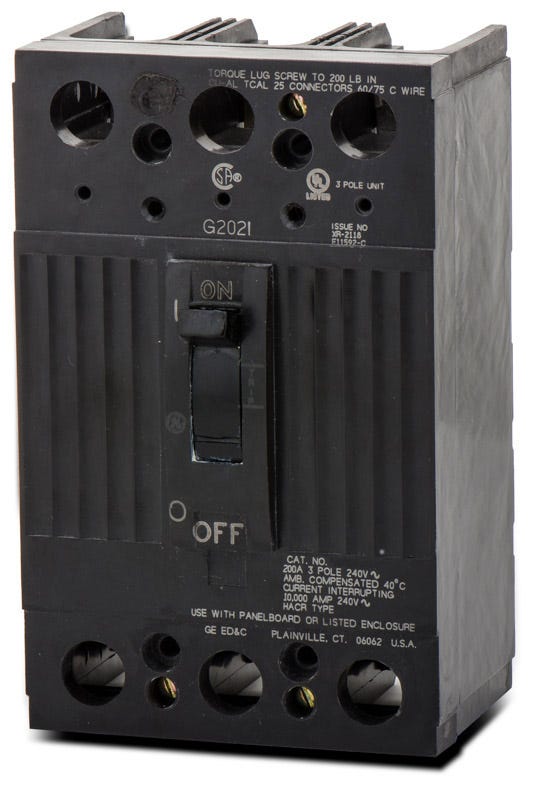

ABB / General Electric TQD32175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
ABB / General Electric
TQD32175
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQD32175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQD32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQD32175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32175 |
| Series | TQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Quantity
ABB / General Electric TQD32175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32175-R |
| Series | TQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Similar Items
ABB / General ElectricTQD32150
150A 3 Pole Molded Case Circuit Breaker

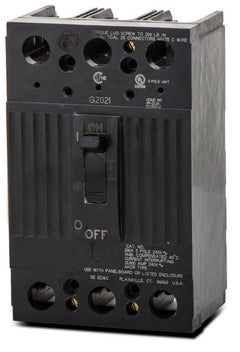

ABB / General ElectricTQD32225
225A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD32125
125A 3 Pole Molded Case Circuit Breaker
Description
Designed for commercial and industrial applications, this 175-amp molded case circuit breaker delivers fixed thermal-magnetic protection. The bolt-on configuration installs into GE A-Series, Spectra Series panelboards, and dedicated TQD enclosures. Featuring a 10kAIC rating at 240VAC, it includes load-side lugs and supports reverse feed operations. For modernizations, this specific frame is superseded by the ABB Formula A2 or Tmax XT3 series, which require specific retrofit hardware.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQD32175 |
| Series | TQD |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards, GE Spectra Series Panelboards, GE TQD Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (TCAL25) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat is the difference between the GE TQD32175 and the THQD32175?
Both are 175A, 3-pole, 240V circuit breakers that share the same physical frame and mounting dimensions. The difference is their interrupting rating. The TQD32175 is rated at 10kAIC at 240V, while the THQD32175 has a higher interrupting capacity of 22kAIC at 240V.
Can the TQD32175 be used as a main breaker?
Yes, the TQD32175 is frequently installed as a main breaker or sub-feed breaker in compatible GE A-Series and Spectra Series panelboards, as well as standalone TQD enclosures.
Why is this breaker listed under both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this Q-Line circuit breaker may feature GE branding, ABB branding, or both. The physical dimensions, fit, and function remain identical.
What enclosures are compatible with the TQD32175?
This breaker is designed to mount in GE TQD-specific enclosures, such as the TQD225F flush mount or TQD225S surface mount boxes, as well as GE A-Series and Spectra Series panelboards.
Does the TQD32175 mount onto a standard DIN rail?
No, this is a bolt-on molded case circuit breaker designed specifically for GE panelboard chassis and dedicated enclosures. It is not compatible with DIN rail mounting.
Are the line and load lugs included with the TQD32175?
Yes, this breaker comes factory equipped with line and load lugs that accept 4 AWG to 300 kcmil copper or aluminum wire.
Is the trip unit on the TQD32175 adjustable?
No, this breaker features a fixed thermal magnetic trip unit with long-time and instantaneous trip functions. The trip settings cannot be adjusted in the field.
Does the TQD32175 provide ground fault or arc fault protection?
No, this breaker features a standard thermal magnetic trip unit for overload and short circuit protection. It does not include integrated ground fault or arc fault sensing capabilities.
