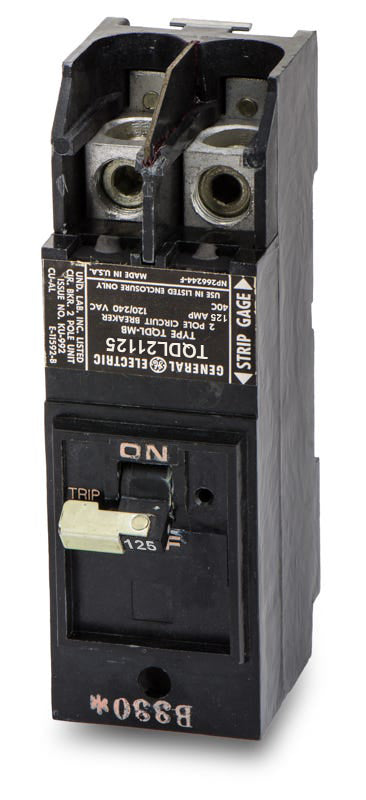

ABB / General Electric TQDL21125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Plug-On
ABB / General Electric
TQDL21125
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQDL21125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQDL21125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric TQDL21125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQDL21125 |
| Series | TQDL |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 1/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C/75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
ABB / General Electric TQDL21125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQDL21125-R |
| Series | TQDL |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 1/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C/75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTQDL21200
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22125
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22125WL
125A 2 Pole Molded Case Circuit Breaker
Description
Providing reliable main or branch circuit protection, this 125A two-pole breaker utilizes a quick-make, quick-break mechanism for enhanced safety. It mounts into GE PowerMark Gold, PowerMark Plus, and ABB ReliaHome residential load centers. The device features fixed thermal-magnetic trip elements and load side lug terminals for secure wire connections. For applications requiring higher interrupting capacities, this model can be substituted with the 22kAIC-rated THQDL21125 version.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQDL21125 |
| Series | TQDL |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 1/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Lugs |
| Standards | UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C/75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersHow many panel spaces are required to install the TQDL21125?
Although it is a 2-pole breaker, the TQDL frame requires four standard 1-inch spaces in the panel for installation.
Can the TQDL21125 be used as a main breaker?
Yes, this breaker is suitable for use as either a main disconnect or a high-amperage branch circuit breaker in compatible GE and ABB load centers.
What is the 22kAIC alternative to the TQDL21125?
The THQDL21125 is the direct upgrade for this breaker, offering a 22kAIC interrupting rating while maintaining the same physical footprint.
Is the TQDL21125 suitable for HVAC equipment?
Yes, it is UL listed as HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
Does the TQDL21125 feature a common trip mechanism?
Yes, it includes an internal common trip that ensures both poles open simultaneously during an overcurrent or short circuit event.
