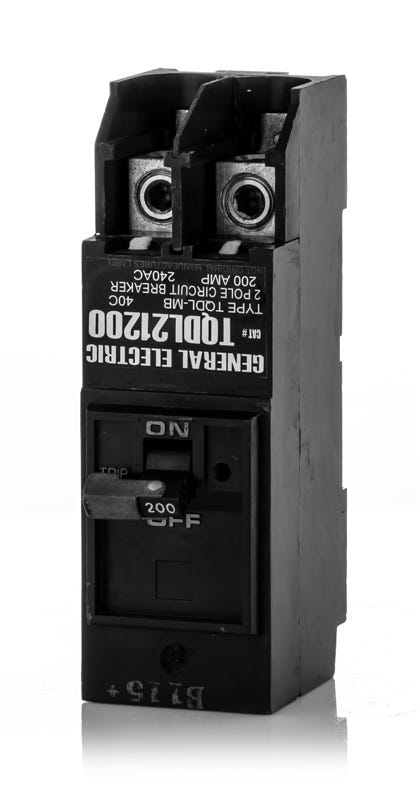

ABB / General Electric TQDL21200 Molded Case Circuit Breaker
- 200A
- 2 Pole
- Plug-On
ABB / General Electric
TQDL21200
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TQDL21200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TQDL21200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
ABB / General Electric TQDL21200 - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQDL21200 |
| Series | TQDL |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | TQDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 1/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Internal Common Trip |
| Standards | UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C/75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TQDL21200 - 200A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQDL21200-R |
| Series | TQDL |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | TQDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 1/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Internal Common Trip |
| Standards | UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C/75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
ABB / General ElectricTQDL21125
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22200
200A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTQD22200WL
200A 2 Pole Molded Case Circuit Breaker
Description
Operating at 120/240VAC, the GE TQDL21200 is a 200A, 2-pole molded case circuit breaker. It offers dependable thermal-magnetic trip functions for residential and commercial distribution applications. This unit features a plug-on mounting style for compatibility with GE PowerMark Gold, PowerMark Plus, and ABB ReliaHome panels. It can be substituted with the THQDL21200 for systems requiring a higher AIC rating. The 10kAIC breaker includes internal common trip and is HACR rated for HVAC use.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TQDL21200-R |
| Series | TQDL |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | TQDL |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE PowerMark Gold Load Centers, GE PowerMark Plus Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 1/0 AWG - 250 kcmil (Cu/Al) |
| Max Wire | 250 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Internal Common Trip |
| Standards | UL 489, HACR |
| Approval | UL |
| Temp Rating | 60C/75C |
| Construction Features | Common Trip, HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersHow many panel spaces does the TQDL21200 require?
This 2-pole circuit breaker requires four 1-inch panel spaces in a compatible load center due to its wider physical footprint.
Is the TQDL21200 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it safe and approved for use with heating, air conditioning, and refrigeration applications.
Which load centers accept the TQDL21200 plug-on breaker?
It is approved for use in compatible ABB ReliaHome, GE PowerMark Gold, and GE PowerMark Plus load centers. Always check your panel's wiring diagram to confirm TQDL frame approval before installation.
What is the difference between the TQDL21200 and the THQDL21200?
The primary difference is the interrupting rating. The TQDL21200 is rated for 10kAIC at 120/240VAC, whereas the THQDL21200 is the higher-rated version, typically offering 22kAIC. If your system requires a higher fault current capacity, you must use the THQDL equivalent.
Does the TQDL21200 feature an internal common trip?
Yes, it is built with an internal common trip mechanism. In the event of an overload or short circuit on one leg, both poles trip simultaneously to completely disconnect power to the connected 240V load.
Can the TQDL21200 serve as a main circuit breaker?
Yes, this 200A breaker is frequently installed as either a branch feeder or a residential main circuit breaker. If you are installing it as a back-fed main in a main lug load center, you must secure it with a compatible main breaker retainer kit, such as the GE TQDLRK, to meet electrical code requirements.
