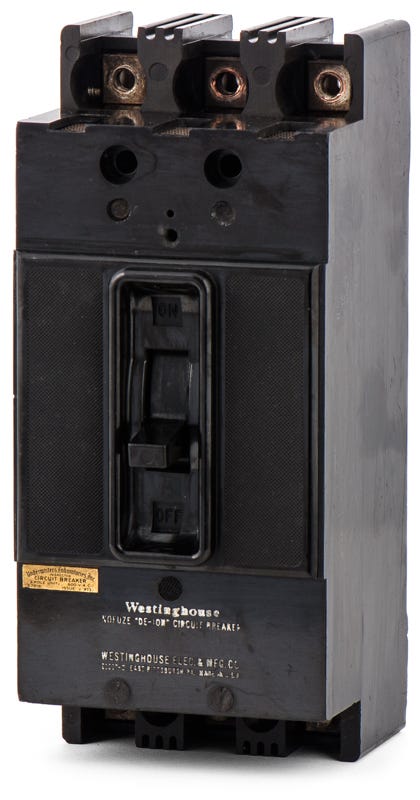

Eaton / Westinghouse F3070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
F3070
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
F3070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse F3070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
25A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Manufactured to support existing commercial facilities, this 70-amp thermal-magnetic breaker delivers reliable overcurrent defense. The three-phase design accommodates standard wiring for versatile applications. This bolt-on component integrates perfectly into legacy Westinghouse panelboards and Eaton Pow-R-Line C systems. Facility managers can use it to replace aging FDB3070 units without modifying the enclosure. Delivering 14kAIC at 480V, it features reverse feed compatibility.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | F3070-R |
| Series | F |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse Panelboards, Eaton Pow-R-Line C Panelboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the F3070 circuit breaker?
This bolt-on breaker is designed for use in legacy Westinghouse panelboards, Eaton Pow-R-Line C panelboards, and compatible motor control centers.
What wire gauge range do the load side lugs on the F3070 accept?
The standard load side lugs accommodate wire sizes from 14 AWG up to 1/0 AWG. Ensure proper torque specifications are followed during installation.
Can the F3070 be used to replace an FDB3070 breaker?
Yes, the F3070 shares the same physical dimensions and mounting configuration as the FDB3070, allowing it to serve as a direct replacement in existing enclosures without modification.
Is the F3070 circuit breaker suitable for reverse feed applications?
Yes, this breaker features reverse feed compatibility, allowing it to be back-fed in applications where the power source is connected to the load terminals.
How does the thermal-magnetic trip unit in the F3070 protect electrical circuits?
The fixed thermal-magnetic trip unit uses a bimetallic strip to provide Long-Time (L) protection against sustained overloads, while an electromagnet provides Instantaneous (I) protection to quickly clear short circuits.
Is the F3070 still actively manufactured by Westinghouse?
No, Westinghouse circuit breakers are legacy products. However, Eaton acquired the Westinghouse distribution equipment line and continues to support these legacy F-frame applications.
