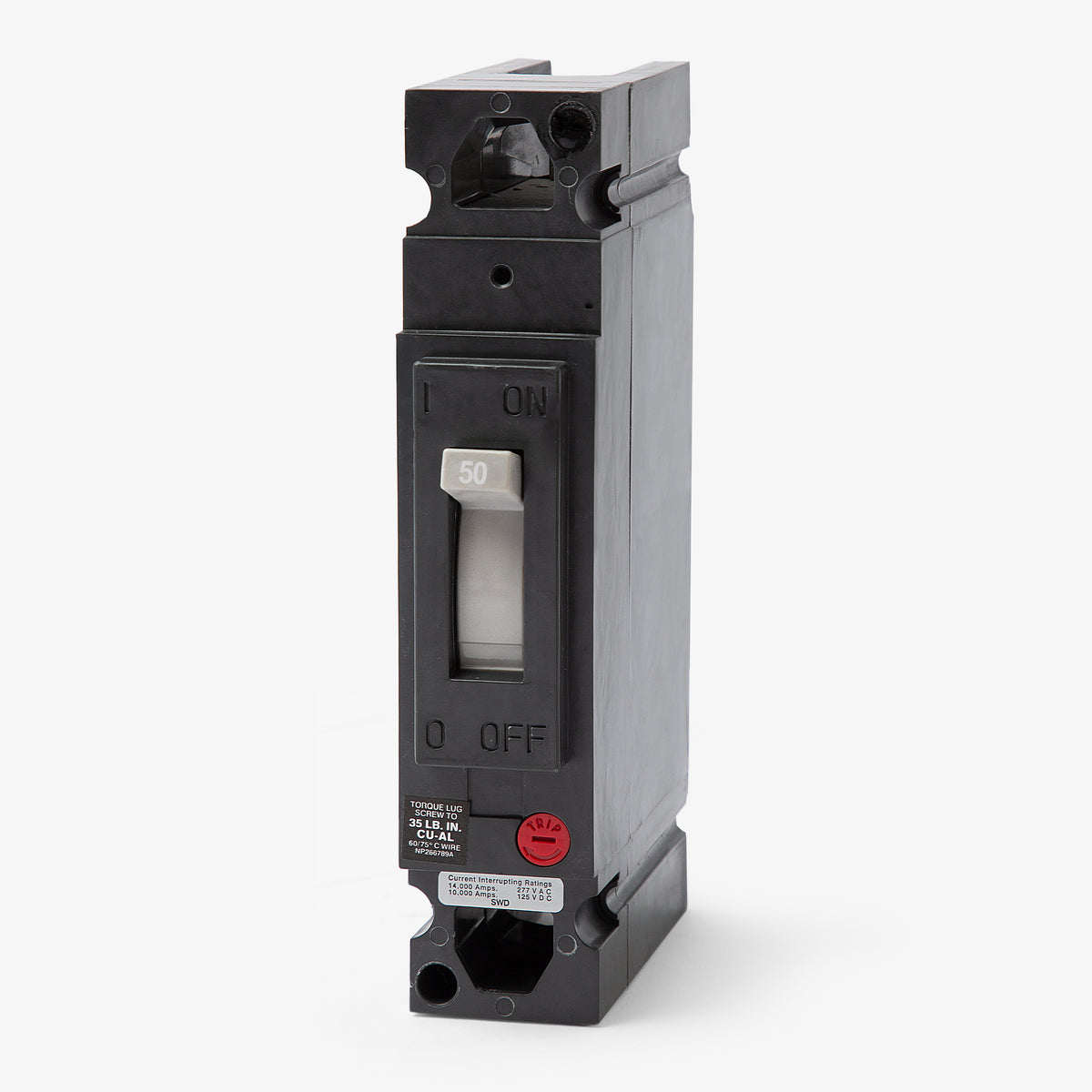

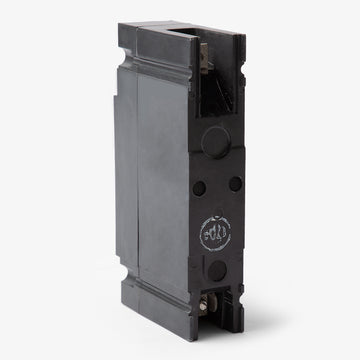

ABB / General Electric TED113050WL Molded Case Circuit Breaker
- 50A
- 1 Pole
- Unit Mount
ABB / General Electric
TED113050WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113050WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113050WL - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113035WL
35A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113030WL
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113020WL
20A 1 Pole Molded Case Circuit Breaker
Description
Designed for standalone installations, the GE TED113050WL is a 1-pole, 50A unit-mount molded case circuit breaker. The "WL" suffix indicates it comes factory-equipped with line and load lugs, making it ideal for individual enclosures, switchboards, and motor control centers. Operating on the E150 frame, it delivers a 14kAIC interrupting rating at 277VAC via a fixed thermal-magnetic trip unit. For future upgrades, this breaker is replaced by the ABB Tmax XT1 series.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113050WL |
| Series | TED |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |

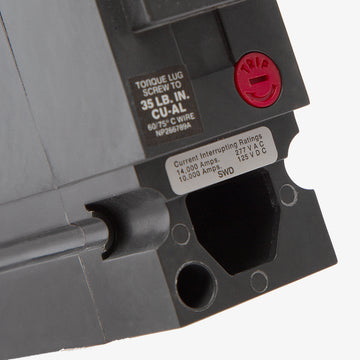

| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|

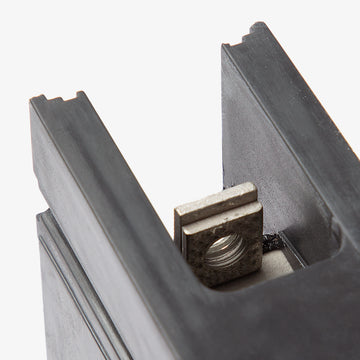

| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator |
|---|---|
| Accessories | Line & Load Lugs (TCAL12) |
| Standards | UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat equipment is the TED113050WL circuit breaker compatible with?
This E-Frame breaker is designed for use in GE panelboards, switchboards, motor control centers, and individual enclosures that accept TED-type unit-mount breakers.
What does the "WL" suffix mean in the TED113050WL catalog number?
The "WL" suffix indicates that the breaker comes factory-equipped with line and load side lugs for feed-thru wiring.
What wire sizes are accepted by the lugs on the TED113050WL?
The factory-installed lugs accept 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire.
Can the TED113050WL be used in direct current systems?
Yes, in addition to its 277VAC rating, this breaker is rated for 125VDC applications with an interrupting capacity of 10kAIC.
What type of protection does the thermal-magnetic trip unit provide?
The fixed thermal-magnetic trip unit provides Long-Time (L) protection against overloads and Instantaneous (I) protection against short circuits.
Will I receive an ABB or General Electric branded breaker?
Following ABB's acquisition of GE Industrial Solutions, this breaker may arrive with either ABB or General Electric branding. The form, fit, function, and specifications are identical regardless of the label.
How is the TED113050WL mounted in an enclosure?
This is a unit-mount, feed-thru circuit breaker that bolts directly to the mounting surface or backpan rather than plugging onto a busbar.
