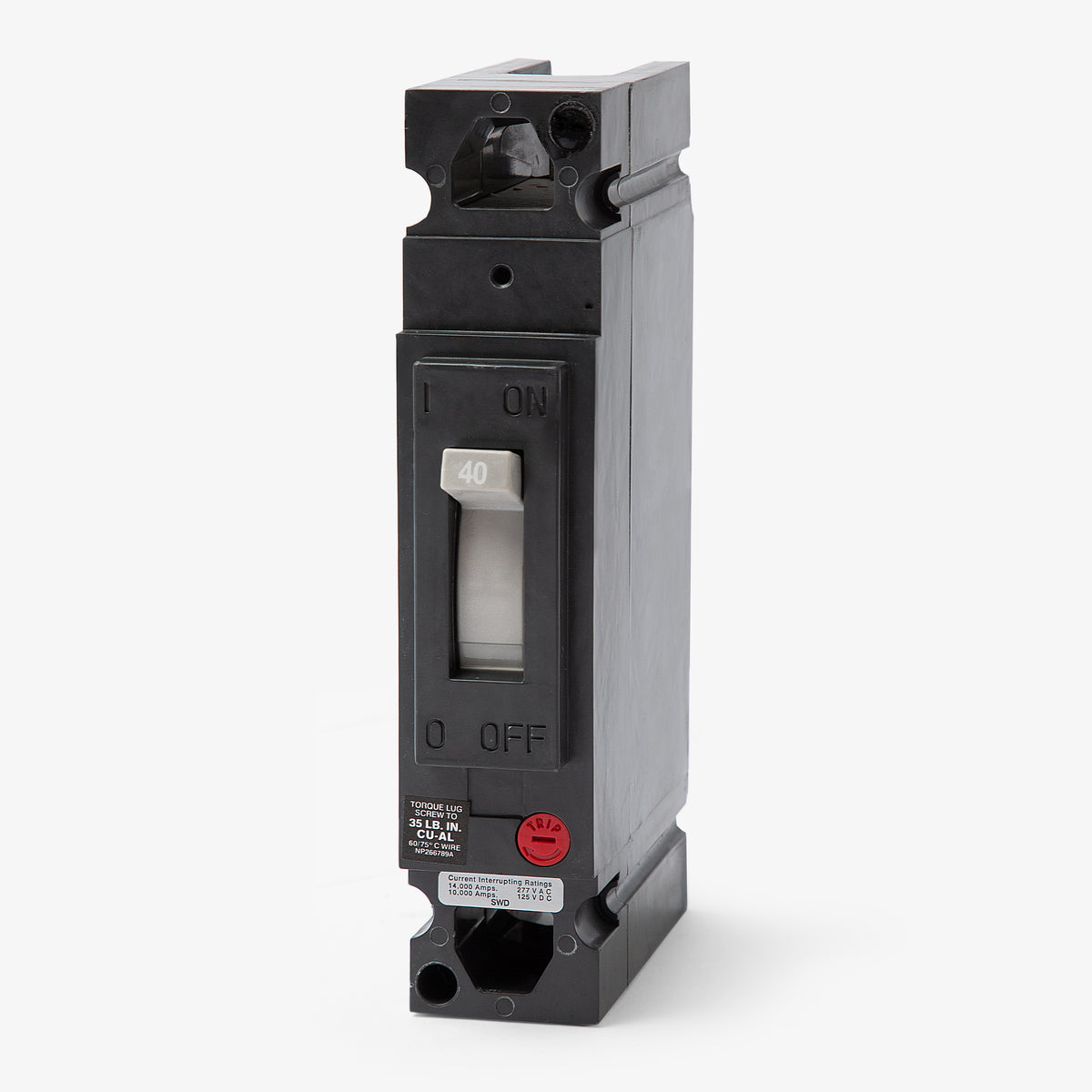

ABB / General Electric TED113040WL Molded Case Circuit Breaker
- 40A
- 1 Pole
- Unit Mount
ABB / General Electric
TED113040WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED113040WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED113040WL - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED113030WL
30A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED113020WL
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTED134040WL
40A 3 Pole Molded Case Circuit Breaker
Description

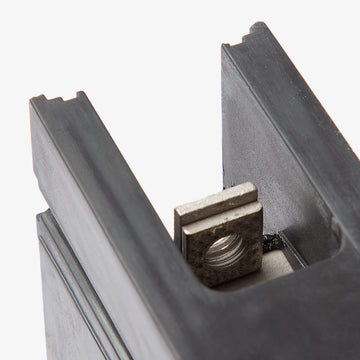

Rated for 14kAIC at 277VAC, this single-pole 40-amp molded case circuit breaker comes equipped with factory-installed lugs for immediate wire termination. The unit-mount configuration allows it to be fastened into individual enclosures, motor control centers, and switchboards without requiring a specialized panelboard bus. It serves as a dependable solution for industrial environments requiring fixed thermal-magnetic protection. The breaker is HACR rated and supports reverse feed operations.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED113040WL |
| Series | TED |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |

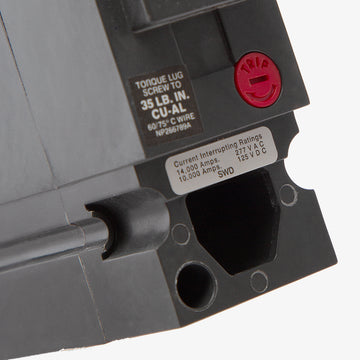

| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator |
|---|---|
| Accessories | Lugs (TCAL12) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the WL suffix indicate on the TED113040WL catalog number?
The WL suffix indicates that the circuit breaker comes factory-equipped with both line and load lugs for immediate wire termination. If the suffix is omitted on single-pole GE E150 models, the breaker typically only includes load lugs.
What types of equipment are compatible with the TED113040WL circuit breaker?
As a unit-mount, feed-thru breaker, it is designed for use in GE individual enclosures, switchboards, and motor control centers rather than standard plug-on load centers. It does not require a specialized panelboard bus to install.
Can the TED113040WL be reverse fed?
Yes, GE TED frame circuit breakers are suitable for reverse feed applications, allowing you to supply power from either the line or load side terminals.
Is the TED113040WL rated for heating, air conditioning, and refrigeration (HACR) equipment?
Yes, this breaker is HACR rated, making it suitable for protecting multi-motor HVAC and refrigeration circuits.
Can I adjust the trip settings on the TED113040WL?
No, this breaker features a non-interchangeable, fixed thermal-magnetic trip unit. Both the long-time and instantaneous trip functions are factory-set and cannot be adjusted in the field.
What frame class does the TED113040WL belong to?
This breaker is part of the GE E150 product line, specifically the TED core E mid-tier frame, which supports up to 150 amps in its maximum configurations.
