General Electric TEYL3080B 3 Pole Circuit Breaker

Brand General Electric
SKU TEYL3080B
(3 Reviews)
General Electric TEYL3080B 3 Pole Circuit Breaker
General Electric TEYL3080B 3 Pole Circuit Breaker

General Electric TEYL3080B 3 Pole Circuit Breaker

Brand General Electric
SKU TEYL3080B
(3 Reviews)
Select Item Condition

Quantity
Buy Now. Pay Later with Shop Pay.
Earn 805 SuperPoints
Add to Favorites Added to Favorites
Hassle-free returns
Fast and reliable shipping
Free shipping over $99
General Electric TEYL3080B 3 Pole Circuit Breaker

General Electric TEYL3080B 3 Pole Circuit Breaker

New

$805.61 In stock

Quantity

Description

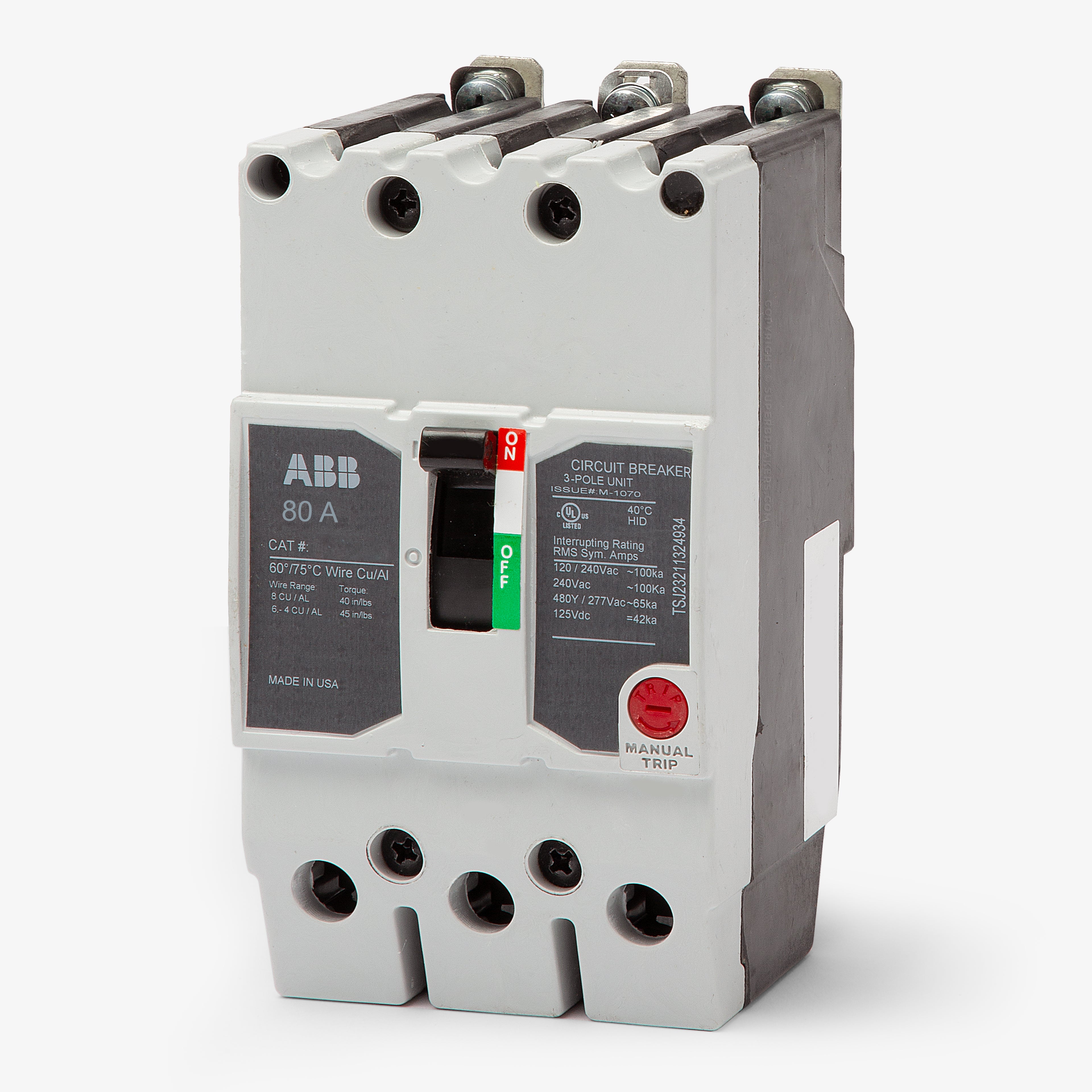

General Electric TEYL3080B 3 Pole Circuit Breaker

The New GE Industrial TEYL3080B Molded Case Circuit Breaker is a TEYL Series designed for use on grounded 480Y/277 Vac systems. Featuring bolt-on mounting it can work as a lug-lug breaker in varied applications. This 3-pole 3-phase lighting panel circuit breaker features fixed long-time and instantaneous functions and has quick-make / quick-break mechanisms. Designed for optimal safety and reliability this circuit breaker comes with common trip bars and easy to spot trip indication. The GE TEYL3080B 80A 480V circuit breaker has interrupt current rating of 100kA at 120/240Vac 100kA at 240Vac 65kA at 480/277-Vac 42kA at 125Vdc and 35kA at 250Vdc. It is suitable for reverse feed industrial applications.

Specifications

Brand General Electric
Series TEYL
Amperage 80
Voltage 480 VAC
Poles 3
Phase 3
Mounting Type Bolt-On
Interrupting Rating 65kA
Frame Type TEYL
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Terminal Connection Load Side Lug Terminal
Length (in) 3
Width (in) 3
Height (in) 5.20
Standards UL Listed, cUL Listed
Temperature Rating 40°C
Circuit Breaker Type Molded Case
Max Wire Size 2/0 AWG
Min Wire Size 4 AWG
Voltage Protection Rating 480V
Upc 783164462616
Gtin 783164462616
