ABB / General ElectricTHQL2130GFT
Free Shipping Over $99

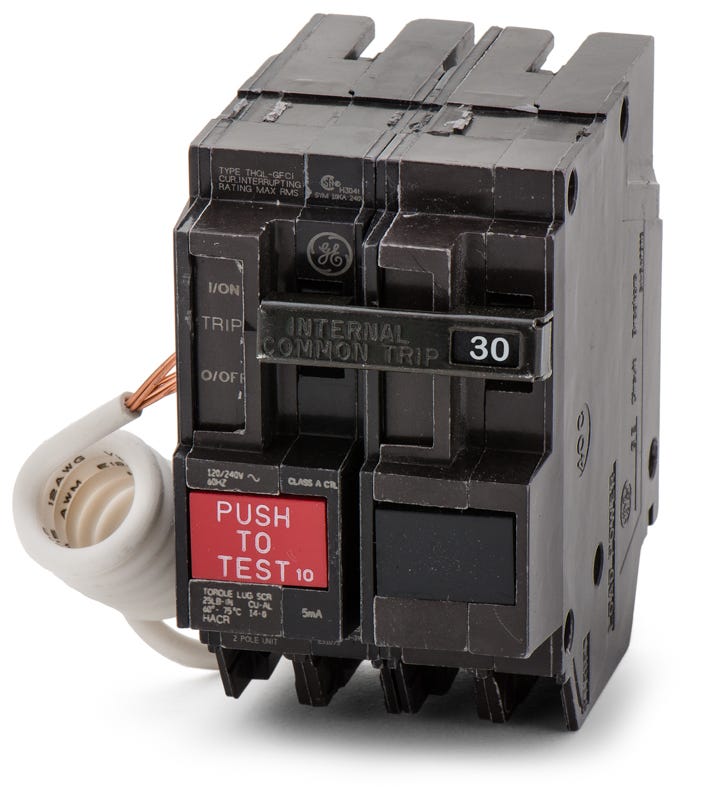

ABB / General Electric THQL2130GF GFCI Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2130GF
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2130GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric THQL2130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2130GF |
| Series | THQL |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, HACR |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL2130GF - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2130GF-R |
| Series | THQL |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, HACR |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL2135GFT2
35A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2125GFT
25A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2140GF
40A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial applications, the GE THQL2130GF provides reliable 5mA Class A ground fault protection. This 30-amp, two-pole miniature breaker features a thermal-magnetic trip mechanism. It mounts into GE Q-Line and PowerMark Gold load centers using a standard plug-on connection. For legacy panel maintenance, this model is officially replaced by the THQL2130GFT. Rated for 10 kAIC at 120/240VAC, it includes a common trip function and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2130GF |
| Series | THQL |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, UL 943, HACR |
| Approval | CSA, UL |
| Temp Rating | 10C to 50C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich load centers accept the THQL2130GF circuit breaker?
It is designed exclusively for GE Q-Line and GE PowerMark Gold load centers. It requires two standard 1-inch spaces and snaps into place using a plug-in connection.
What is the ground fault trip threshold for this breaker?
The THQL2130GF provides Class A personnel protection. It is calibrated to trip when it detects a ground fault current of 5mA.
How do I wire the neutral connection for the THQL2130GF?
The breaker features a white pigtail neutral that must be terminated at the panel neutral bus bar. For 120/240V circuits, the load neutral wire connects directly to the neutral lug on the breaker.
Can the THQL2130GF be used on a strictly 240V circuit without a load neutral?
Yes. Connect the two hot conductors to the breaker load terminals and route the breaker pigtail to the panel neutral bus. The load neutral terminal on the breaker remains empty.
Does this GFCI breaker perform automatic self-testing?
Yes. The internal circuitry includes an automatic self-test function that continuously verifies the ground fault protection mechanism is operational, ensuring compliance with modern safety standards.
Is there a difference between the ABB and GE versions of the THQL2130GF?
No. Following ABB's acquisition of GE Industrial Solutions, Q-Line breakers are manufactured under both brand names. The breakers are identical in fit, form, and function regardless of whether the label says ABB or GE.
