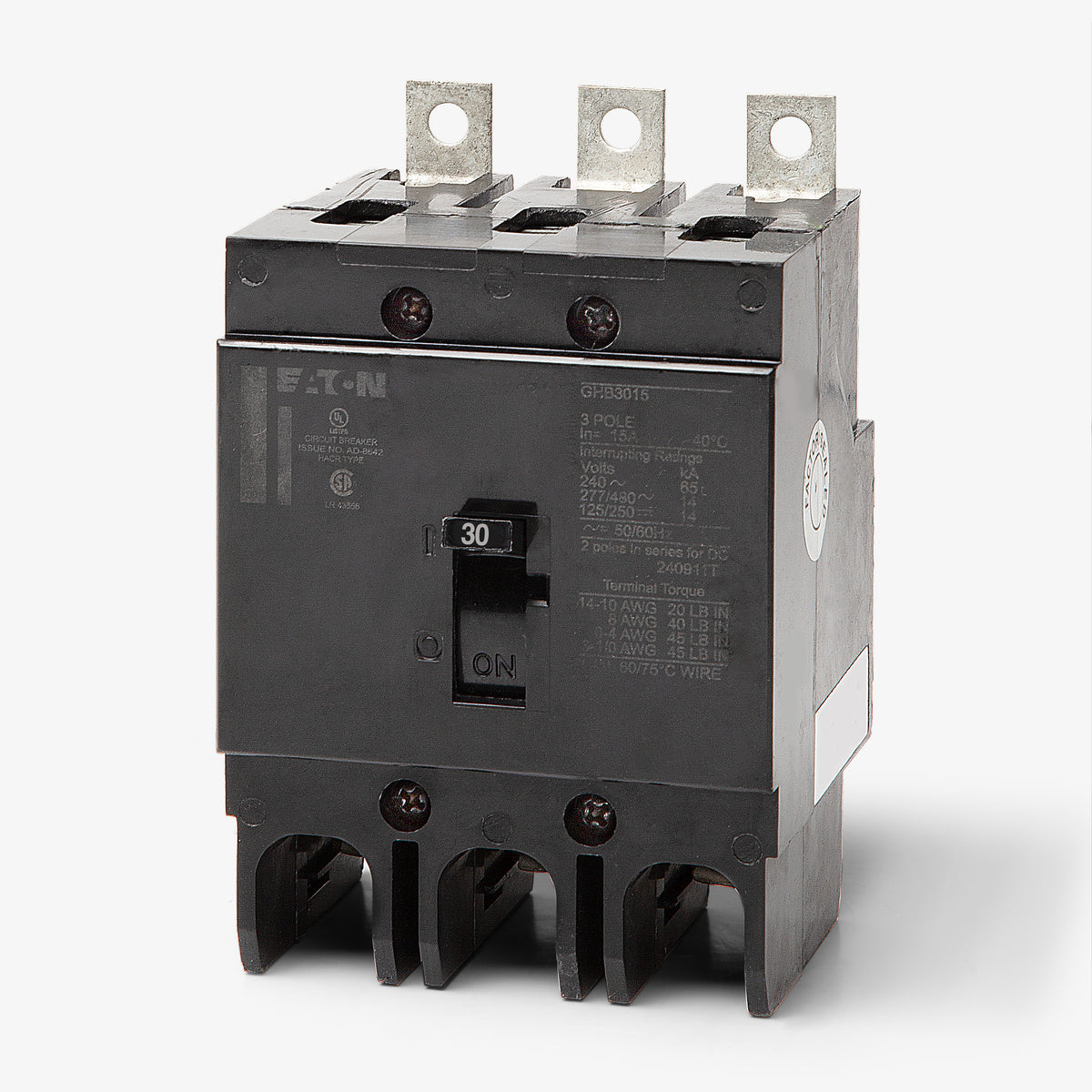

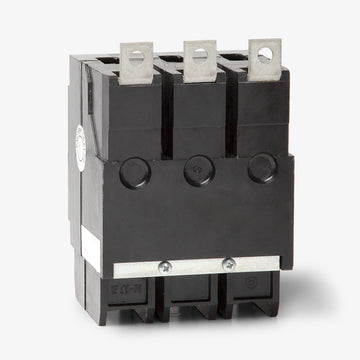

Eaton / Cutler-Hammer GHB3030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
GHB3030
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB3030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB3030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GHB3030 - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3030 |
| Series | GHB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Eaton Pow-R-Line 3 (PRL3) Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer GHB3030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3030-R |
| Series | GHB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Eaton Pow-R-Line 3 (PRL3) Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
25A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerGHB3025S1
25A 3 Pole Molded Case Circuit Breaker
Description
Designed for robust power distribution, the Eaton GHB3030 is a 3-pole, 30A molded case circuit breaker offering fixed thermal-magnetic trip functions. It serves as a dependable solution for commercial and industrial facilities. This Series C breaker is engineered to bolt into Eaton Pow-R-Line 2 (PRL2) and Pow-R-Line 3 (PRL3) panelboards. With an interrupting capacity of 14kA at 480Y/277VAC and 65kA at 240VAC, it features a non-interchangeable trip and reverse feed capabilities.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB3030 |
| Series | GHB |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Line 2 (PRL2) Panelboards, Eaton Pow-R-Line 3 (PRL3) Panelboards, Series C Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the GHB3030 circuit breaker?
This G-frame bolt-on breaker mounts directly into Eaton Pow-R-Line 2 (PRL2) and Pow-R-Line 3 (PRL3) panelboards, as well as legacy Series C panelboards.
Can I use this Eaton breaker to replace an older Westinghouse or Cutler-Hammer GHB3030?
Yes. Eaton acquired both the Westinghouse and Cutler-Hammer electrical distribution lines. The current Eaton GHB3030 is the exact direct replacement for legacy Westinghouse and Cutler-Hammer breakers carrying the same catalog number.
Is the GHB3030 suitable for use on a 480V 3-phase delta system?
No. The GHB3030 carries a 480Y/277V slash rating, meaning it is only approved for solidly grounded wye systems where the line-to-neutral voltage does not exceed 277V. If your facility uses an ungrounded or corner-grounded 480V delta system, you must use a fully rated 480V breaker, such as the Eaton GD or GDB series.
Can this breaker be reverse fed?
Yes. Eaton Series C G-frame circuit breakers like the GHB3030 do not have strict line and load directional requirements, making them fully suitable for reverse feed applications.

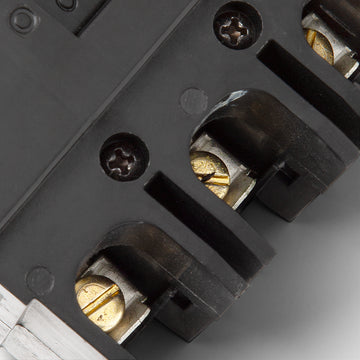

What are the wire size limits for the factory terminals?
The standard pressure terminals on this breaker accept copper or aluminum conductors from 10 AWG up to 1/0 AWG. Check the side nameplate of the breaker for the specific torque requirements based on your chosen wire size.
How does the fixed thermal-magnetic trip unit operate?
The LI (Long-Time and Instantaneous) trip unit provides two types of protection. The thermal element heats up and trips during sustained overloads, while the magnetic element activates immediately in the presence of severe short-circuit faults.
How is the GHB3030 secured inside the panel?

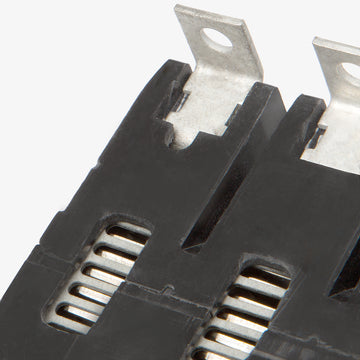

This is a bolt-on breaker. The load end slides under a hook mounting rail in the panel, while the line end bolts securely to the bus bar using a retaining screw.
