Eaton / Cutler-Hammer FS320025A Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FS320025A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS320025A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

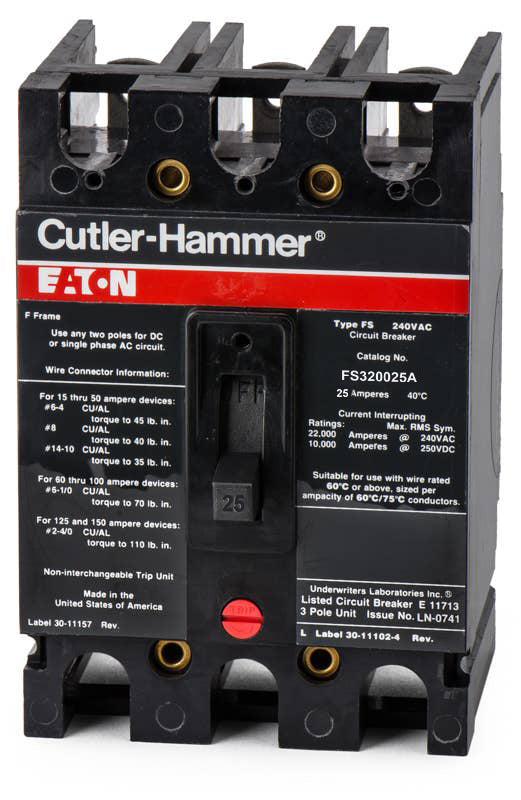

Eaton / Cutler-Hammer FS320025A - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerFS320015A
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS340015A
15A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS320090A
90A 3 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical loads, the Eaton FS320025A offers 3-pole, 25-amp protection for commercial and industrial environments. This Series C molded case circuit breaker features a factory-sealed construction for enhanced reliability in harsh conditions. The bolt-on mounting style ensures a secure connection within compatible Eaton panelboards, switchboards, and enclosures.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS320025A |
| Series | FS |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Factory Sealed, Non-Interchangeable Trip, HACR Rated |
Product FAQs
6 answersCan the FS320025A be installed in legacy Westinghouse panelboards?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines, so this Series C F-frame breaker is backward compatible with many older Westinghouse and Cutler-Hammer panelboards, switchboards, and enclosures designed for F-frame bolt-on breakers.
What are the recommended terminal torque values for the FS320025A?
For standard slotted head lugs, the torque specifications depend on the wire gauge: 35 lb-in for 14-10 AWG, 40 lb-in for 8 AWG, 45 lb-in for 6-4 AWG, and 50 lb-in for 3-1/0 AWG. Always verify against the breaker's side label before finalizing connections.
Does the FS320025A accept aluminum wiring?
Yes, the factory-installed lugs are rated for both copper (Cu) and aluminum (Al) conductors ranging from 14 AWG to 1/0 AWG. When terminating aluminum wire, Eaton recommends applying a suitable joint compound to reduce the risk of terminal overheating.
What is the current replacement for the legacy FS320025A breaker?
The FS frame is a legacy 240V-rated Series C breaker. For newer installations or if the FS320025A is unavailable, Eaton replaces it with the FD3025. The FD frame shares the exact same physical dimensions and mounting but carries a higher 600V maximum rating.
Can I adjust the trip settings on the FS320025A?
No, this breaker is equipped with a non-interchangeable, fixed thermal-magnetic trip unit. It provides standard Long-Time and Instantaneous (LI) protection, but the trip curve parameters cannot be modified in the field.
Is the FS320025A suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it has been tested and approved for the unique electrical demands of heating, air conditioning, and refrigeration systems. It is also UL 489 listed for standard commercial and industrial applications.
