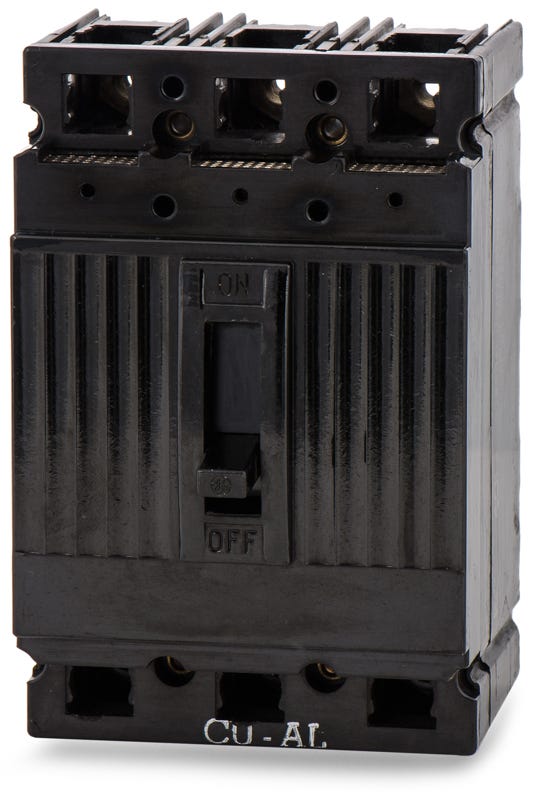

ABB / General Electric TE132030 Molded Case Circuit Breaker
- 30A
- 3 Pole
- Bolt-On
ABB / General Electric
TE132030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE132030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE132030 - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE132020
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Designed to protect commercial electrical systems, the GE TE132030 is a 3-pole, 30A bolt-on molded case circuit breaker. It mounts securely into GE A-Series panelboards, offering dependable overcurrent protection for various industrial loads. Equipped with fixed thermal and magnetic trip units, it delivers a 10kAIC rating at 240VAC. For facility managers updating older infrastructure, this unit is the direct predecessor to the modern TEB132030 replacement breaker.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE132030-R |
| Series | TE |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TE |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Lugs |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat panelboards are compatible with the TE132030 circuit breaker?
This bolt-on breaker is engineered specifically for General Electric A-Series commercial panelboards. It is not compatible with standard residential load centers that require plug-in THQL breakers.
What is the modern replacement for the GE TE132030?
The TE132030 is a legacy component. The direct modern replacement is the GE TEB132030, which shares the same physical dimensions, bolt-on mounting, and electrical ratings for A-Series panels.
What type of wire is compatible with the factory lugs?
The included lugs are rated for both copper and aluminum conductors. They accept wire sizes ranging from 14 AWG to 8 AWG. Ensure proper torque specifications are followed during installation.
Can the TE132030 be used in direct current applications?
Yes, this breaker is rated for up to 250VDC with a 5kA interrupting capacity, allowing it to be used in industrial DC control circuits and battery systems.
Does this breaker provide ground fault or arc fault protection?
No. The TE132030 is a standard thermal-magnetic breaker that provides only overload and short-circuit protection. It does not contain GFCI or AFCI circuitry.
How does the TE132030 mount to the panelboard?
This unit utilizes a bolt-on connection. It must be mechanically bolted directly to the panelboard bus, providing a highly secure and vibration-resistant connection for commercial environments.
Are the trip settings adjustable on this breaker?
No. The TE132030 features fixed thermal and fixed magnetic trip units. The long-time and instantaneous trip functions cannot be adjusted in the field.
