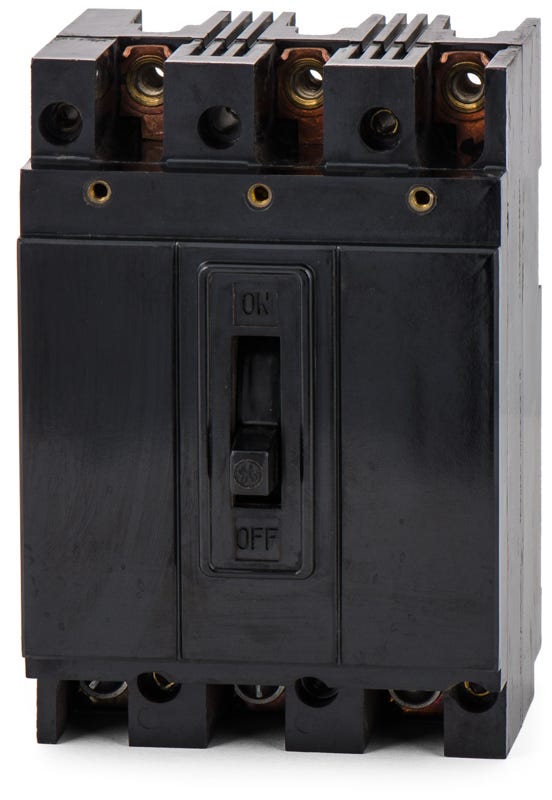

ABB / General Electric TE32040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
ABB / General Electric
TE32040
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE32040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE32040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

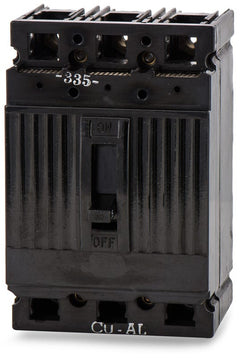

20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE132015
15A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Operating at 240VAC, this 40A molded case circuit breaker provides essential thermal-magnetic protection. The GE Q-Line component features common trip functionality to disconnect all poles simultaneously. The bolt-on configuration mounts into compatible GE A-Series panelboards, offering a vibration-resistant connection. For upgrade projects, the TEB132040 serves as the manufacturer replacement.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE32040-R |
| Series | TE |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | TE3 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 1 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | UL 489, CSA C22.2 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip |
Product FAQs
7 answersWhich panelboards are compatible with the TE32040 circuit breaker?
This bolt-on breaker is designed specifically for integration into GE A-Series panelboards.
Is there a direct replacement for the legacy TE32040 breaker?
Yes, the TEB132040 serves as the official manufacturer replacement for this legacy TE frame breaker.
Why might my TE32040 breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this breaker may feature either ABB or GE branding, but the form, fit, and function remain identical.
What wire sizes are accepted by the lugs on the TE32040?
The included lugs accept 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire.
Is the TE32040 suitable for use with heating, air conditioning, and refrigeration equipment?
Yes, this breaker is HACR rated, making it suitable for protecting multi-motor HVAC and refrigeration circuits.
Does this breaker feature a common trip mechanism?
Yes, the TE32040 includes a common trip function, ensuring that an overcurrent on any single pole will simultaneously disconnect all three poles for safety.
Can I adjust the trip settings on the TE32040?
No, this breaker features a fixed thermal-magnetic trip unit with non-interchangeable trip settings.
