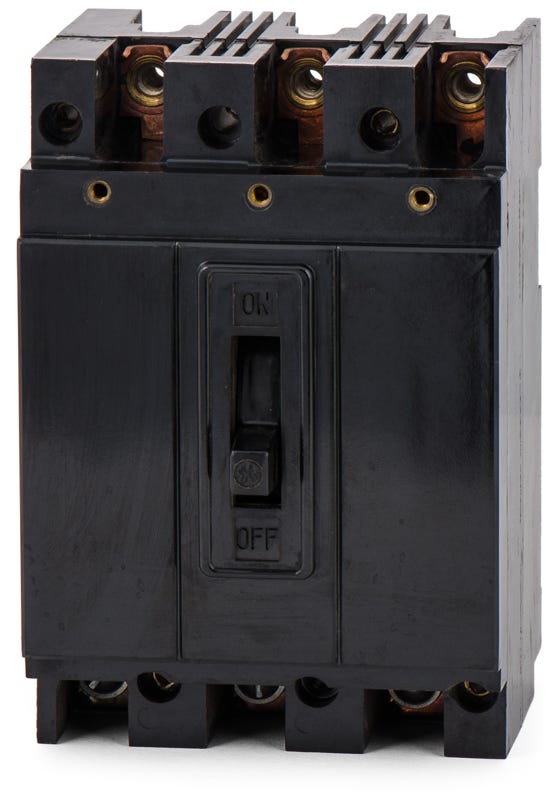

ABB / General Electric TE32050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
ABB / General Electric
TE32050
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE32050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE32050 - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTE132020
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial power distribution, the GE TE32050 is a 3-pole, 50A molded case circuit breaker from the trusted Q-Line series. It provides essential long-time and instantaneous protection to safeguard critical branch circuits. This breaker mounts into GE A-Series panelboards using a standard bolt-on configuration and is officially replaced by the TEB132050. Rated for 10kAIC at 240VAC, it utilizes a fixed thermal and magnetic trip mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE32050-R |
| Series | TE |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | HACR, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism, Reverse Feed, HID Rated |
Product FAQs
7 answersWhat panelboards are compatible with the TE32050 circuit breaker?
This breaker is designed specifically for integration into GE A-Series panelboards.
How does the TE32050 mount into the panelboard?
It features a bolt-on mounting style, allowing it to be securely bolted directly to the bus of compatible GE A-Series panelboards.
Is the TE32050 suitable for use in 480V electrical systems?
No, this breaker has a maximum voltage rating of 240V AC and is not rated for 480V applications.
Do I need to use copper wire with the TE32050 load lugs?
No, the load side lugs are dual-rated to accept either copper (14-3 AWG) or aluminum (12-1 AWG) conductors.
What type of trip unit is equipped on the TE32050?
It is equipped with a fixed, non-interchangeable thermal-magnetic trip unit that provides Long-Time and Instantaneous (LI) protection.
Is there a newer replacement model for the legacy TE32050 breaker?
Yes, legacy TE frame breakers are typically replaced by the newer TEB series. The direct replacement for this 50A model is the TEB132050.
Is the TE32050 rated for high-fault commercial applications?
This breaker has a standard interrupting capacity of 10kA at 240V AC. For systems with higher available fault currents, a fully rated or series-rated high-IC breaker may be required.
