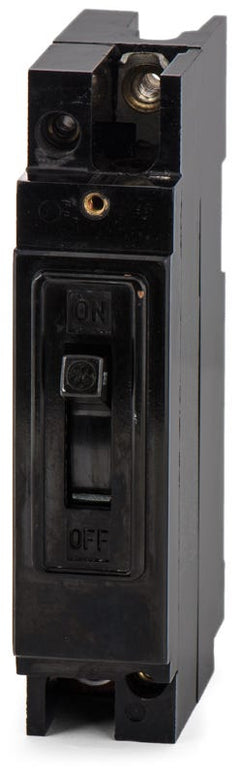

ABB / General ElectricTE13L020
ABB / General Electric TE1030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
ABB / General Electric
TE1030
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TE1030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

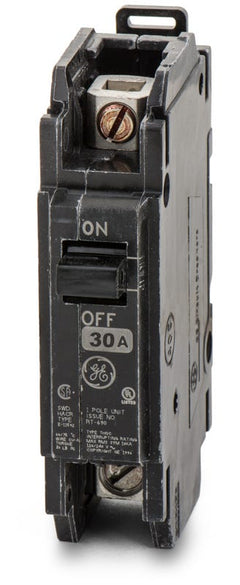

ABB / General ElectricTHQC1130
30A 1 Pole Molded Case Circuit Breaker

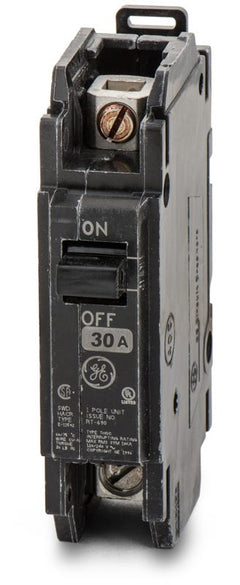

ABB / General ElectricTHQC1130WL
30A 1 Pole Molded Case Circuit Breaker
1 Pole Circuit Breaker
Description
Delivering reliable thermal-magnetic protection, this 30A single-pole component serves commercial and industrial distribution systems. The unit provides essential long-time and instantaneous trip functions for standard branch circuits. It installs securely into GE A-Series panelboards using a standard bolt-on configuration. Facility managers often utilize this specific frame when maintaining existing infrastructure, though it crosses over to the newer TEB111030 model.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE1030-R |
| Series | TE |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | TE |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
4 answersWhich panelboards are compatible with the TE1030 circuit breaker?
This breaker is specifically designed and UL listed for installation in General Electric A-Series panelboards. Installing it in panels from other manufacturers violates safety listings and is not recommended.
Is the TE1030 manufactured by ABB or General Electric?
The TE1030 is part of the GE Q-Line family. Following the acquisition of GE Industrial Solutions by ABB, these breakers are now managed and produced by ABB, although they often still carry the original GE branding.
How is the TE1030 secured inside the panelboard?
It utilizes a bolt-on connection type. Instead of snapping onto the busbar, it must be bolted directly to the bus, providing a highly secure and vibration-resistant connection typical in commercial and industrial environments.
How does the LI trip function operate on this breaker?
The fixed thermal-magnetic mechanism includes long-time and instantaneous (LI) trip functions. The thermal component responds to prolonged overloads, while the magnetic component trips immediately during severe short circuits.
