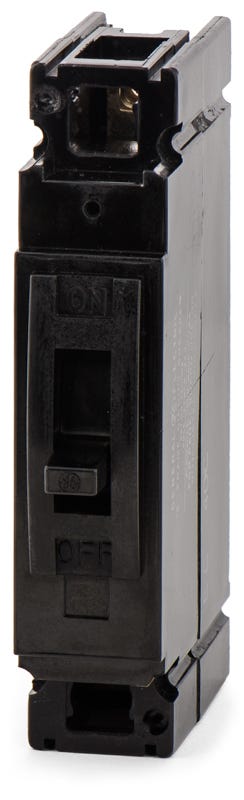

ABB / General Electric TE111050 TEB111050 - 50A 1 Pole Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
ABB / General Electric
TE111050
TEB111050 - 50A 1 Pole Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TE111050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB111050 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items

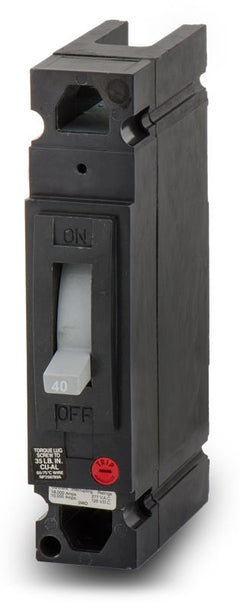

ABB / General ElectricTEB111040
40A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111020
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB111015
15A 1 Pole Molded Case Circuit Breaker
Description
Operating within the E-Frame family, this 50A single-pole breaker provides essential thermal-magnetic protection for industrial environments. The legacy design incorporates a trip-free mechanism to ensure safety during fault conditions. The bolt-on mounting style guarantees a secure connection within GE A-Series panelboards. When sourcing replacements, the TEB111050 serves as the designated substitute. Capable of reverse feed applications, it delivers a 10kAIC rating at 120VAC and is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TE111050 |
| Series | TEB |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | TE |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 8-3 AWG (Cu/Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lug |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat panelboards are compatible with the TE111050 circuit breaker?
This breaker is designed for use in GE A-Series panelboards. It mounts using a bolt-on connection and occupies one pole space.
What are the recommended wire sizes and torque specifications for the TE111050?
The TE111050 accepts 8-3 AWG copper or aluminum wire. Recommended tightening torques are 40 in-lb for #8 AWG, 45 in-lb for #6 to #4 AWG, and 50 in-lb for #3 AWG.
What is the difference between the GE TEB111050 and TED113050 breakers?
Both are 50-amp, 1-pole E-frame breakers, but they differ in voltage and interrupting ratings. The TEB111050 is rated for 120VAC with a 10kAIC rating, while the TED113050 is rated for 277VAC with an 18kAIC rating.
Can the TE111050 be used in DC applications?
Yes, this breaker is rated for use in DC circuits up to 125VDC, with a maximum interrupting capacity of 5kAIC.
Is the TE111050 breaker HACR rated?
Yes, GE TEB series breakers 15 amps and above, including this 50-amp model, are UL listed for Heating, Air Conditioning, and Refrigeration (HACR) applications.
Does the TE111050 include thermal and magnetic trip protection?
Yes, it features a fixed thermal magnetic trip unit. The thermal element provides long-time overload protection, while the magnetic element provides instantaneous short-circuit protection.
